Power Door Systems Component Views

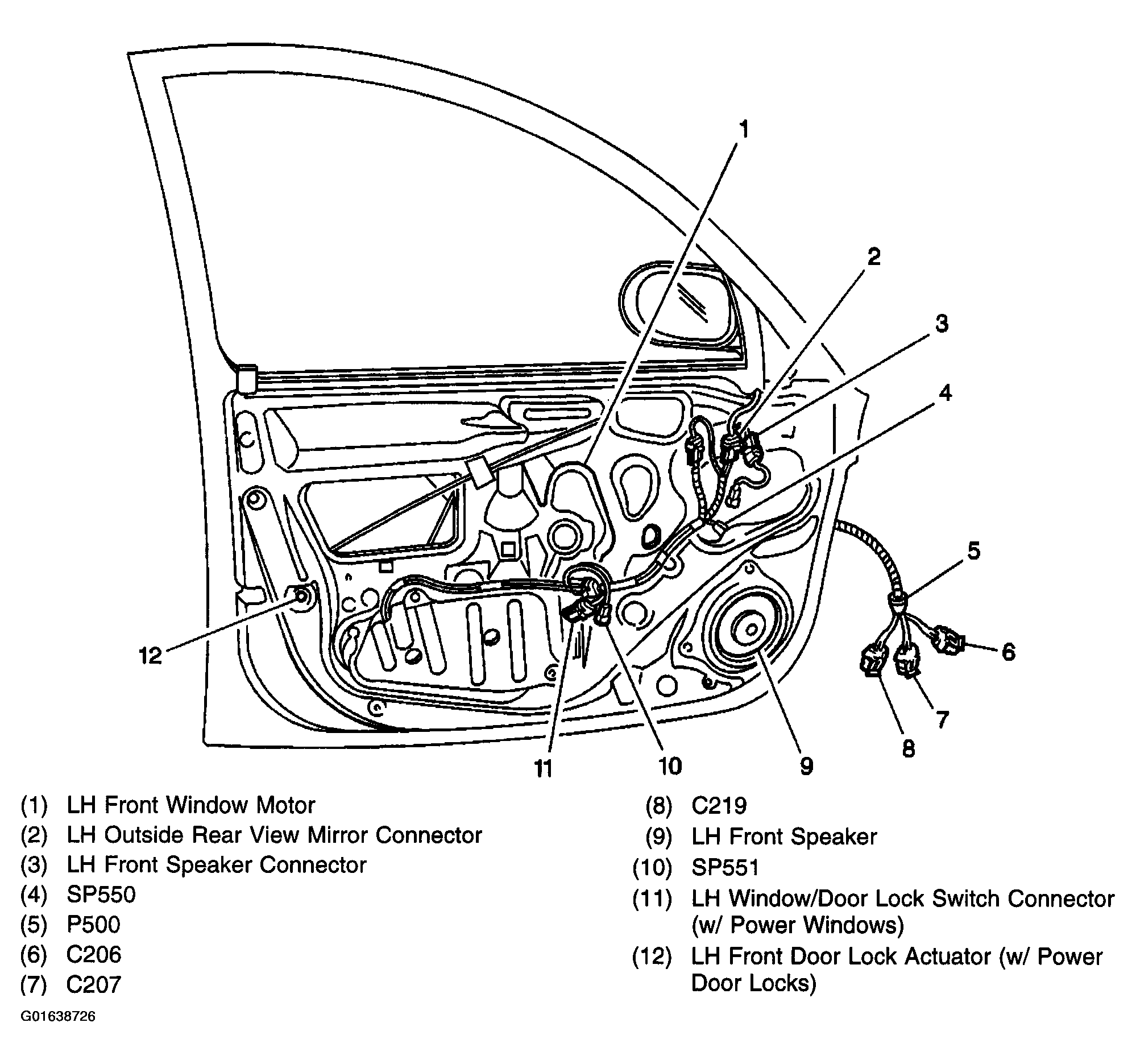

Fig 1: LH Front Door View

Courtesy of GENERAL MOTORS CORP.

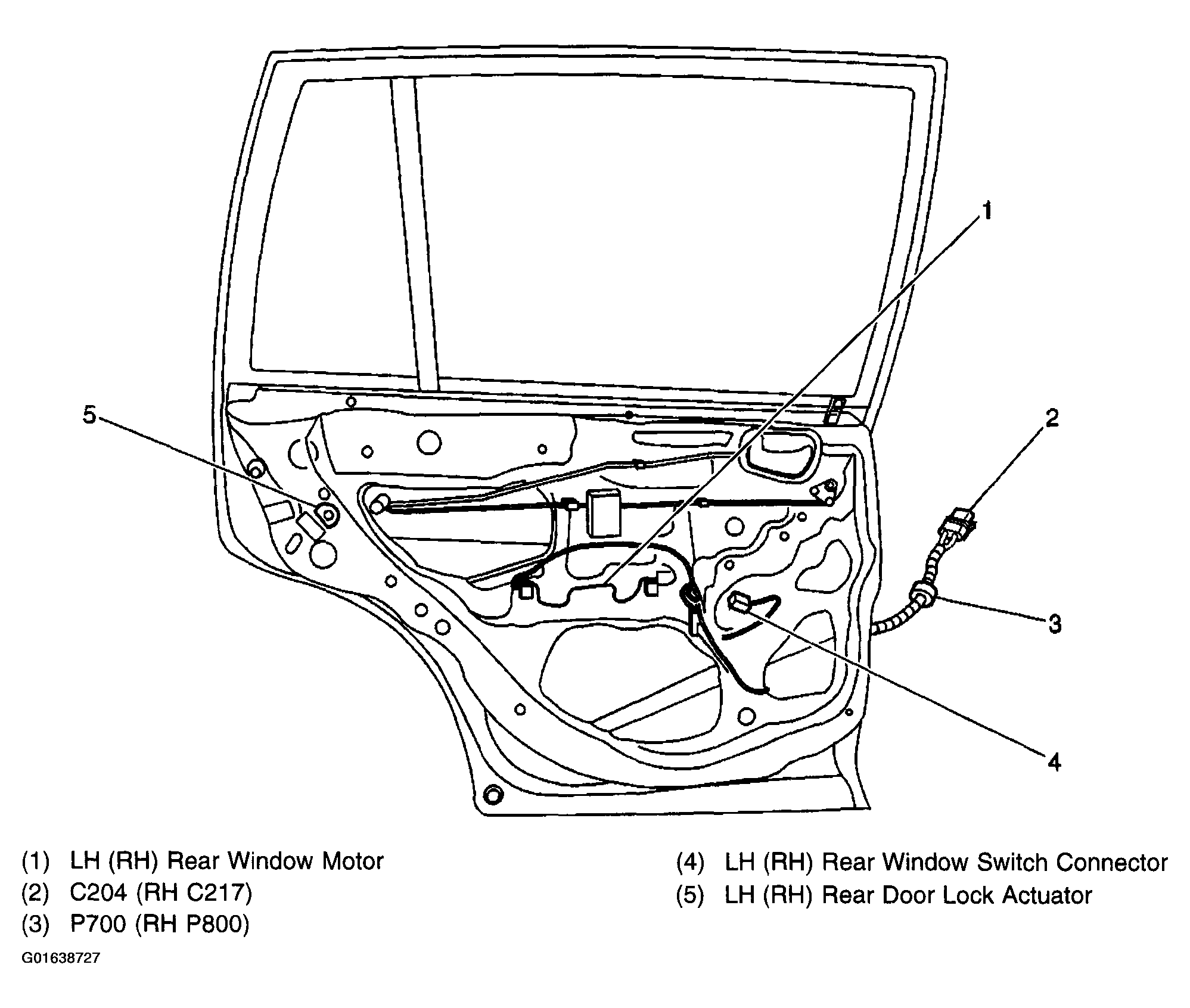

Fig 2: LH Rear Door View (RH Similar)

Courtesy of GENERAL MOTORS CORP.

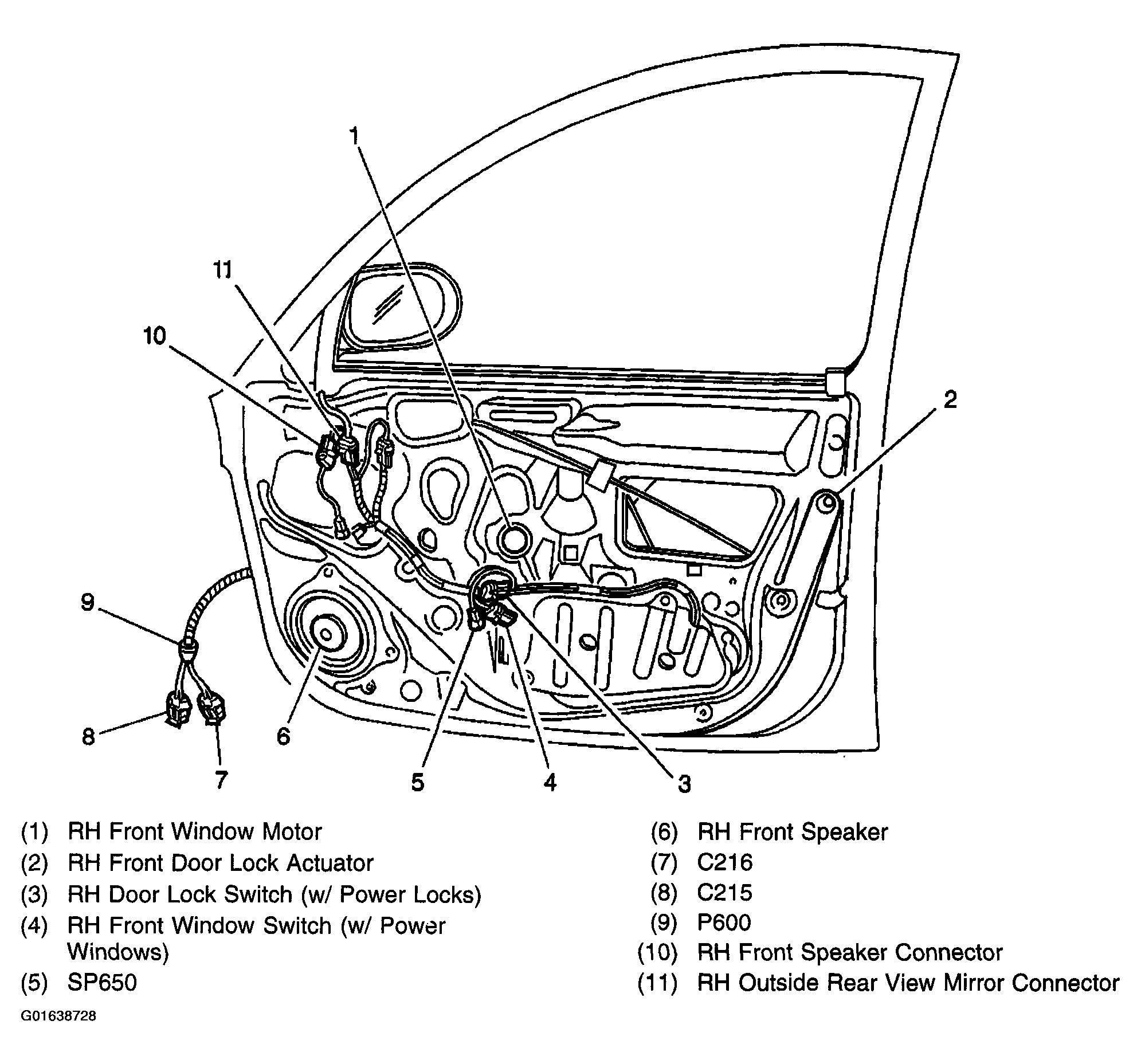

Fig 3: RH Front Door View

Courtesy of GENERAL MOTORS CORP.
