Sunroof Control Module Connector End Views

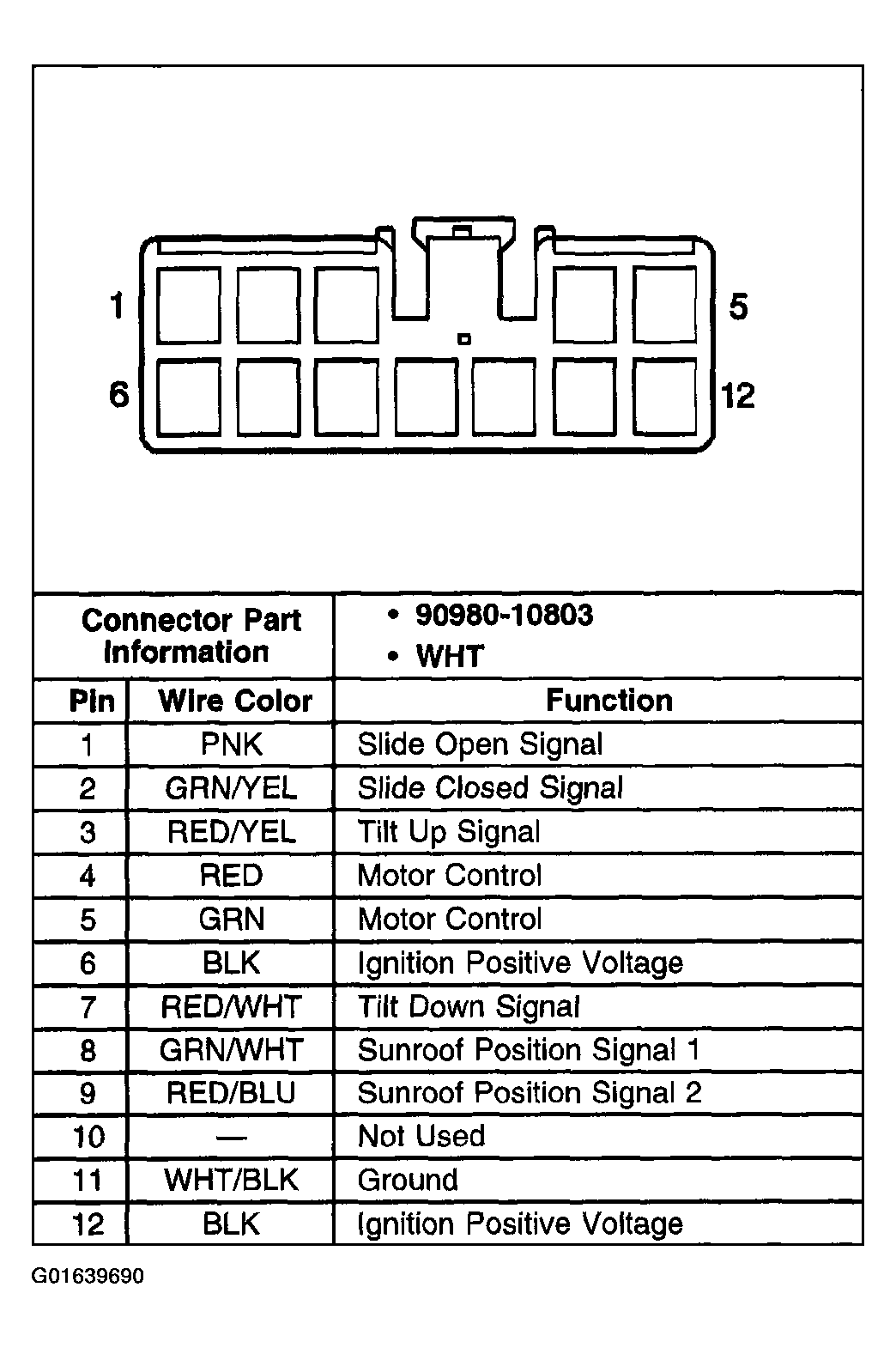

Fig 1: Sunroof Control Module
G01639690Courtesy of GENERAL MOTORS CORP.
