Cruise Control Component Views

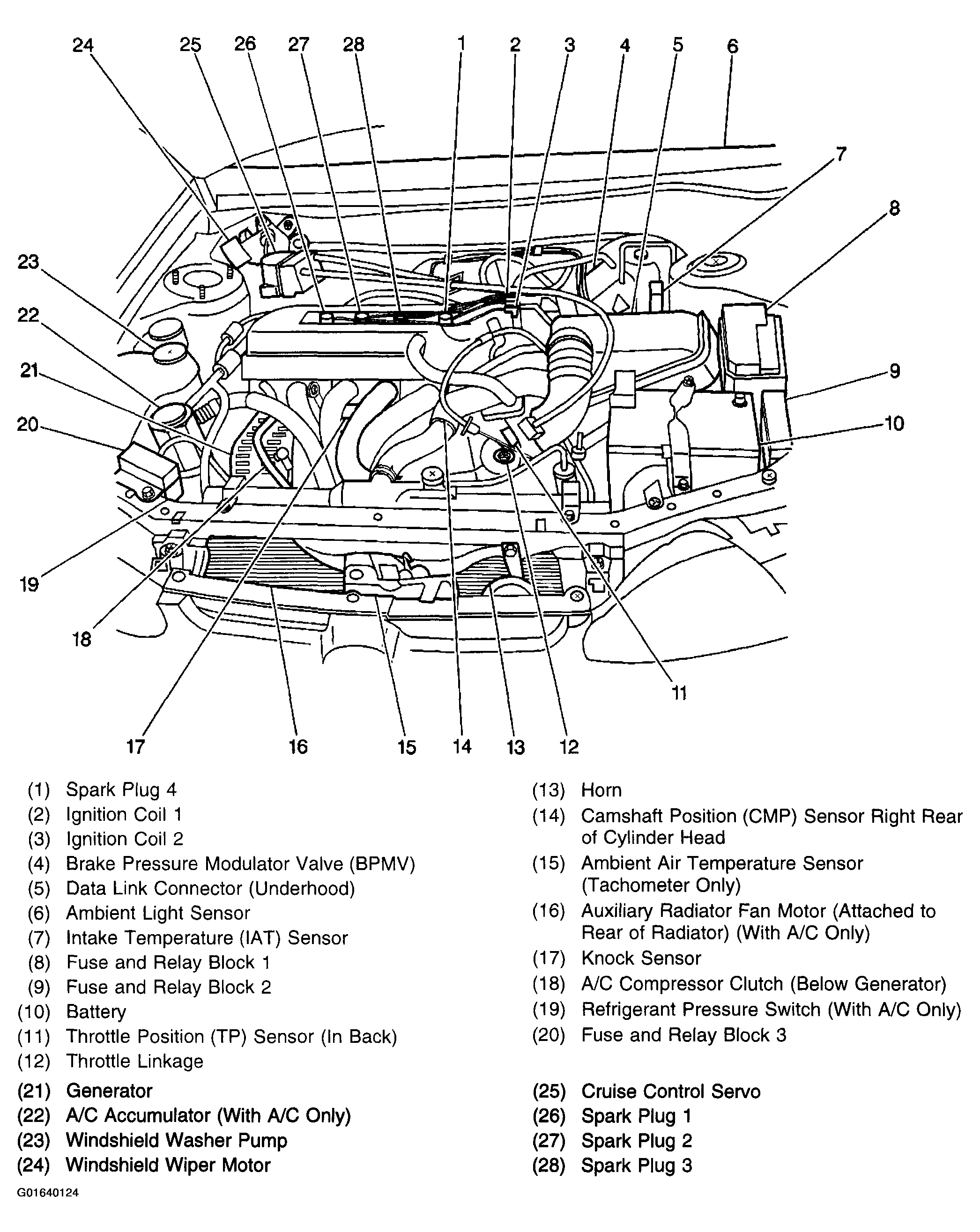

Fig 1: Engine Compartment View
G01640124Courtesy of GENERAL MOTORS CORP.
Fig 2: Steering Column Wiring
G01640125Courtesy of GENERAL MOTORS CORP.

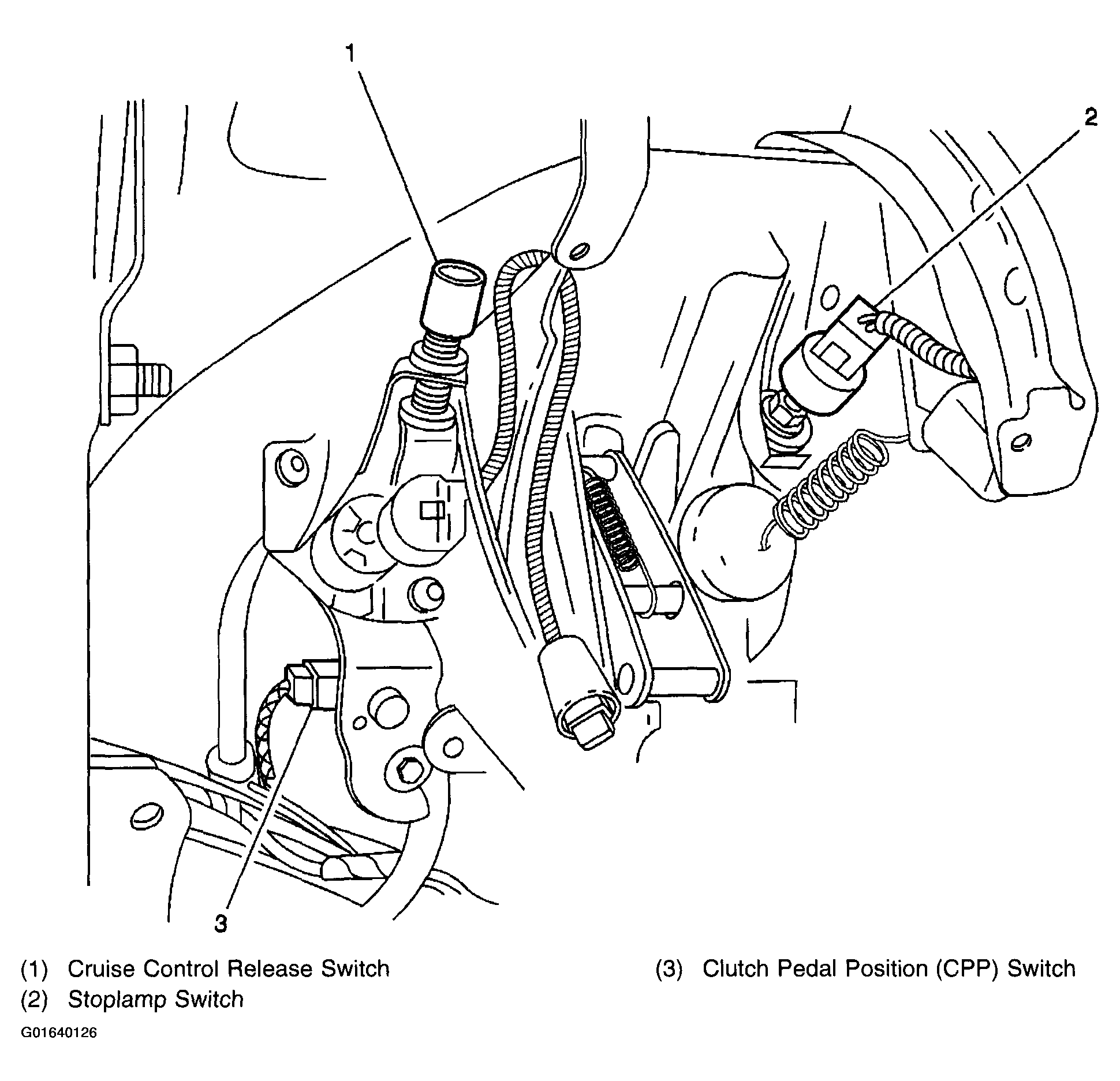

Fig 3: LH Cowl Wiring (Manual Transmission)
G01640126Courtesy of GENERAL MOTORS CORP.
