Cruise Control Connector End Views
Cruise Control Connector End Views

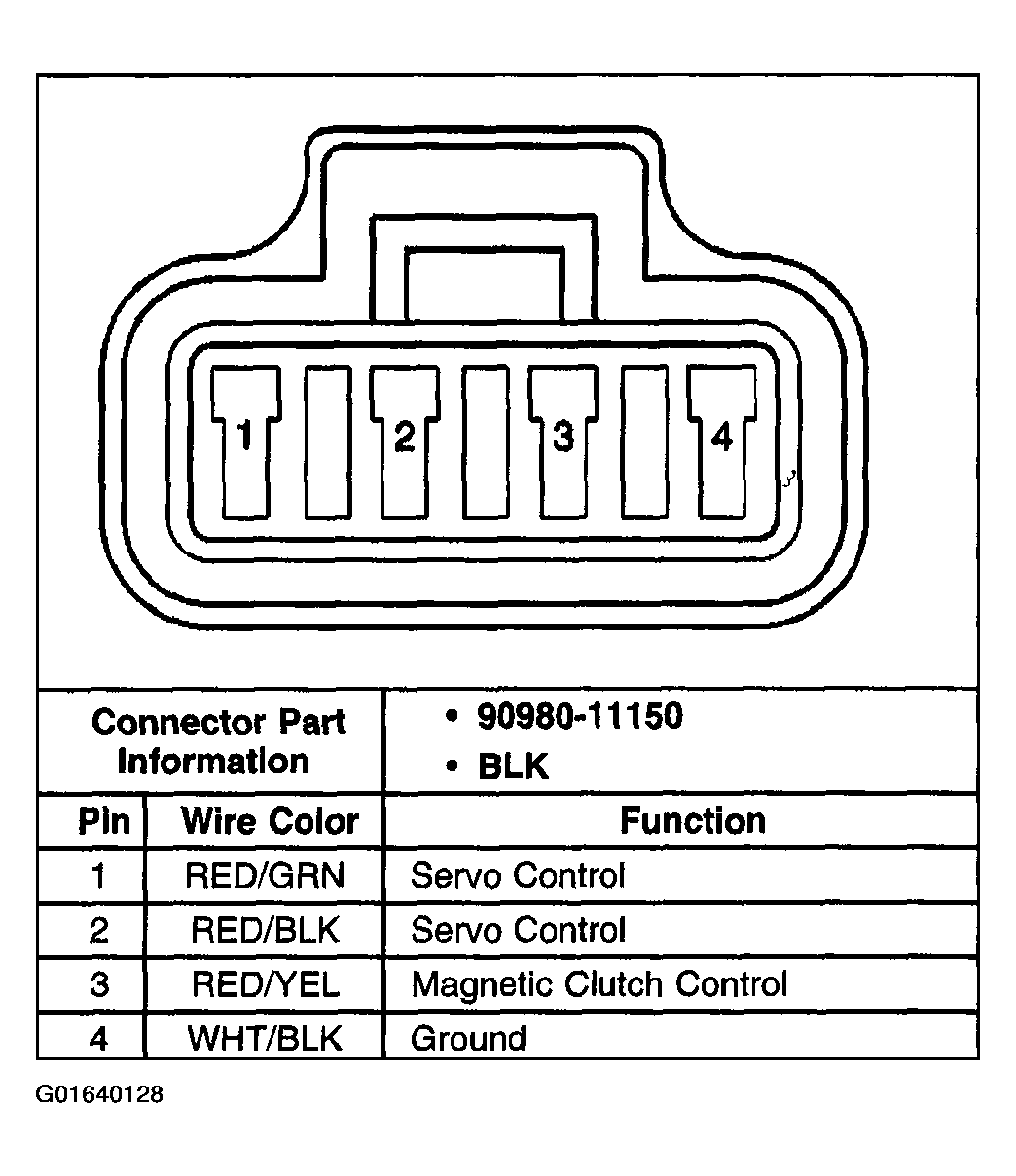

Fig 1: Cruise Control Module
Courtesy of GENERAL MOTORS CORP.
Fig 2: Cruise Control Servo
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
