Keyless Entry Connector End Views

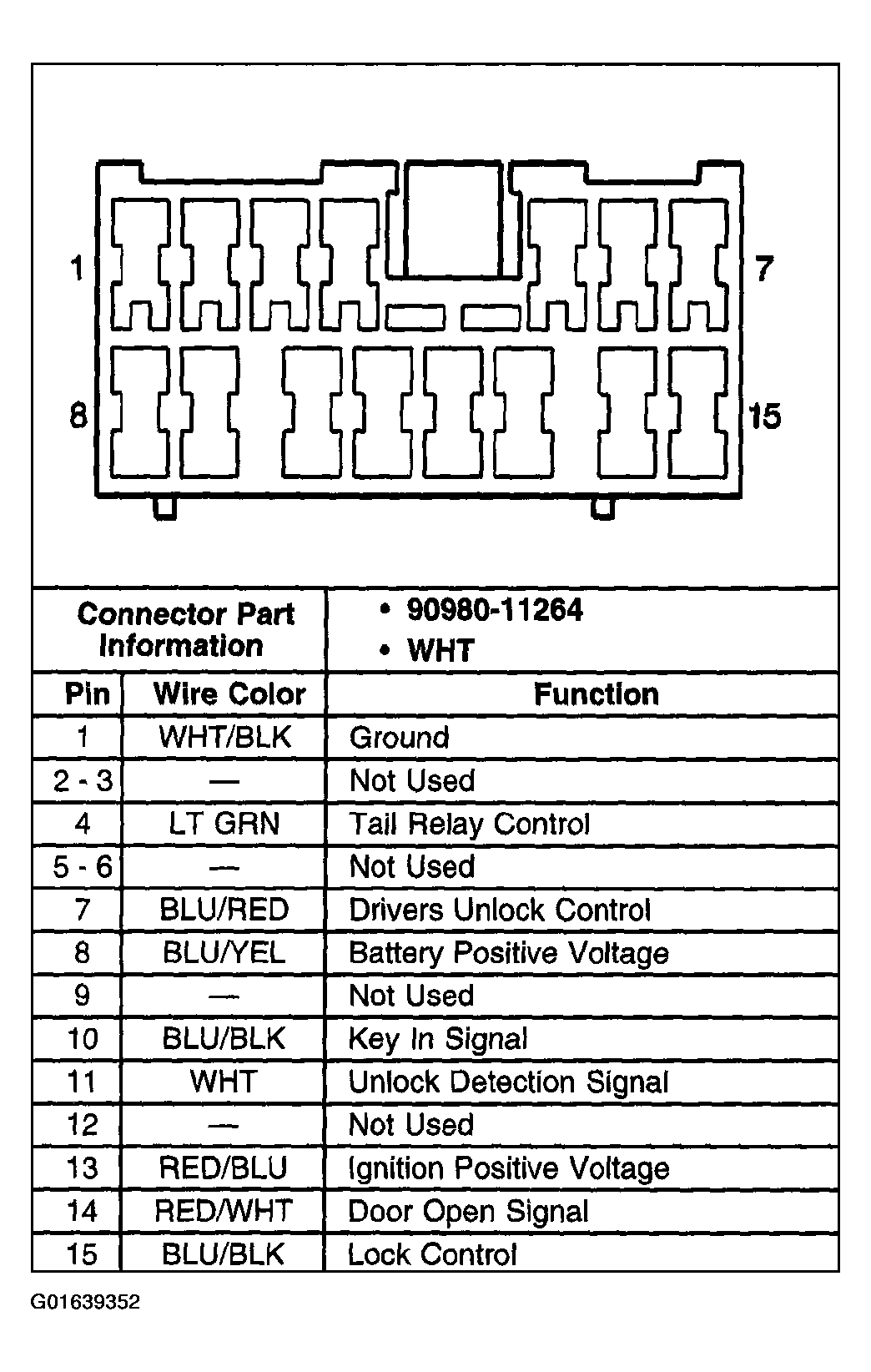

Fig 1: Remote Control Door Lock Receiver
G01639352Courtesy of GENERAL MOTORS CORP.
