Removal Procedure

  1. Remove the front side door trim. Refer to TRIM PANEL REPLACEMENT - Side Front Door .
  2. Pull back the water deflector in order to gain clearance to remove the front door check link from the door.
  3. Remove the following components from the vehicle:
    • The front door check link to door jamb bolt (3)
    • The 2 bolts (1) that retain the check link to the rear door
    • The check link (2) through inner door panel access hole

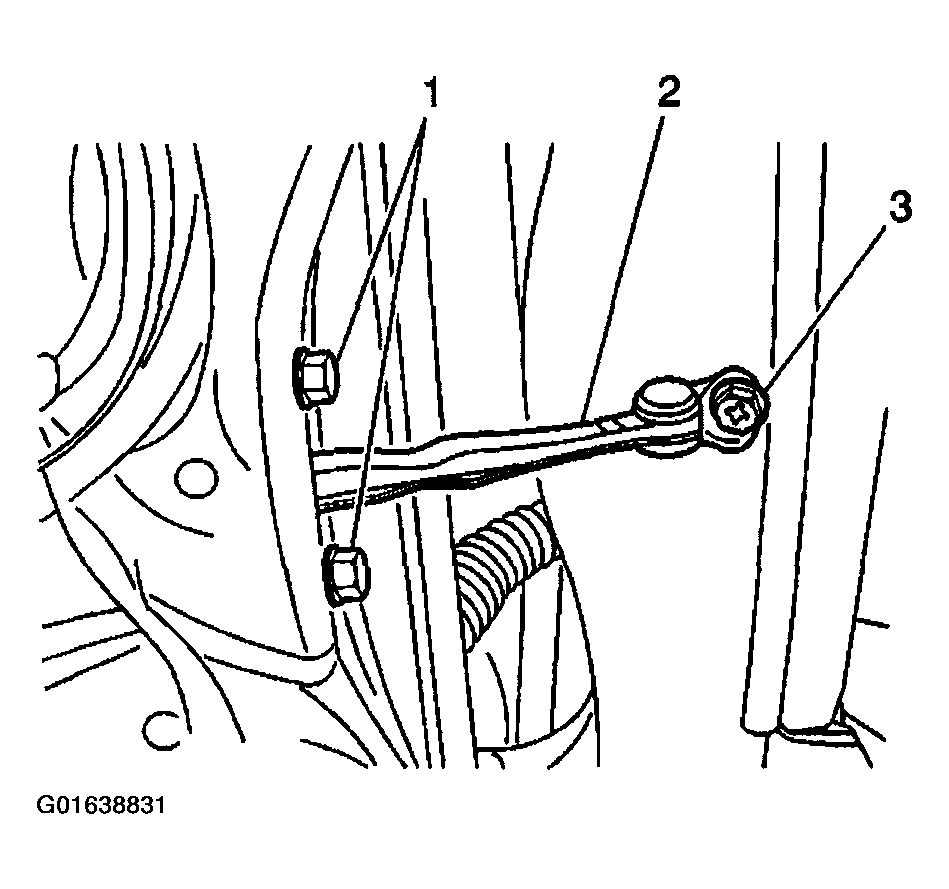

Fig 1: Removing Front Door Check Link-To-Door Jamb Bolt
G01638831Courtesy of GENERAL MOTORS CORP.
