Removal Procedure

Unclip and remove the inner mirror garnish (2) from the door.

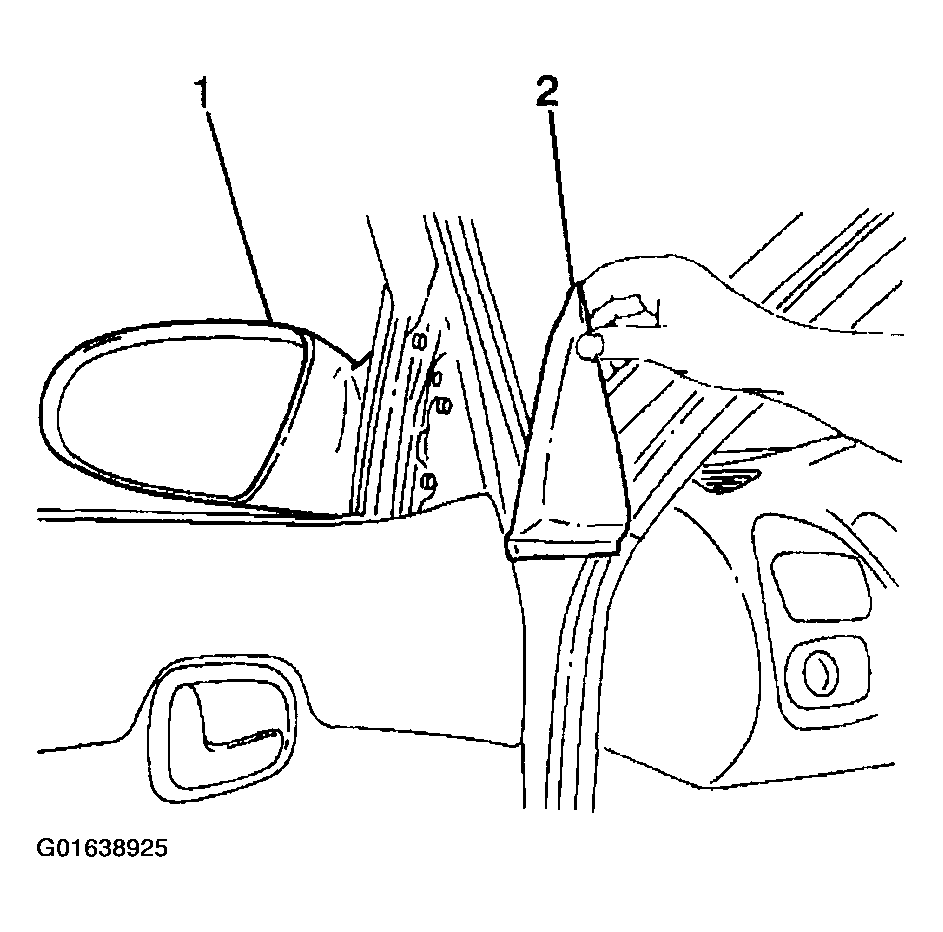

Fig 1: Unclipping And Removing Inner Mirror Garnish From Door
Courtesy of GENERAL MOTORS CORP.
Remove the following components from the door:
- The 3 nuts
- The outside rearview mirror (1)

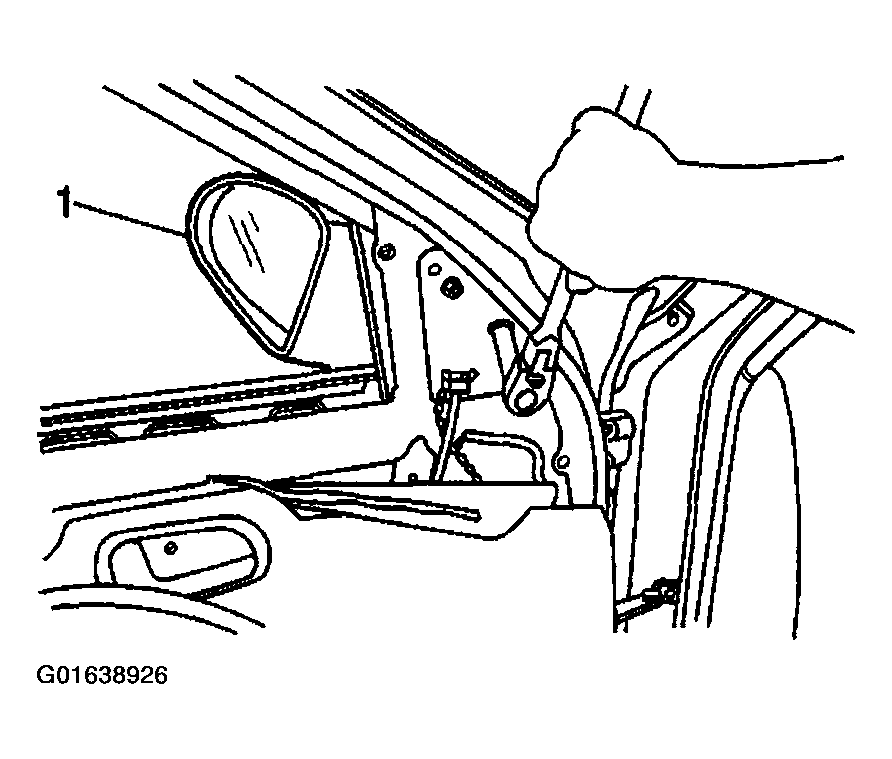

Fig 2: Removing 3 Nuts And Outside Rearview Mirror
Courtesy of GENERAL MOTORS CORP.
