Removal Procedure

Remove the front side door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - Front Door .
Remove the 2 screws (1) and the access shield (3) from the door (2), if equipped.

Fig 1: Removing 2 Screws And Access Shield
Courtesy of GENERAL MOTORS CORP.
Remove the 2 window-to-regulator bolts.

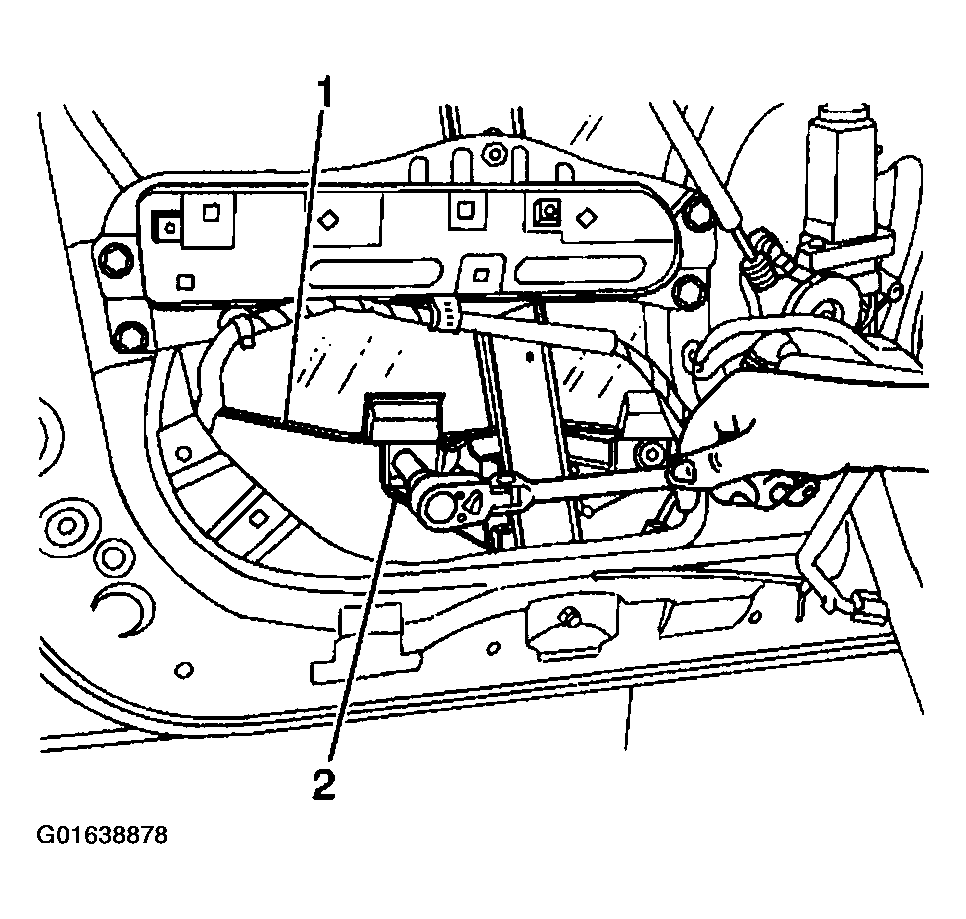

Fig 2: Removing 2 Window-To-Regulator Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the window (1) by pulling up and out of the door.
