Stationary Windows Components Views
Stationary Windows Components Views

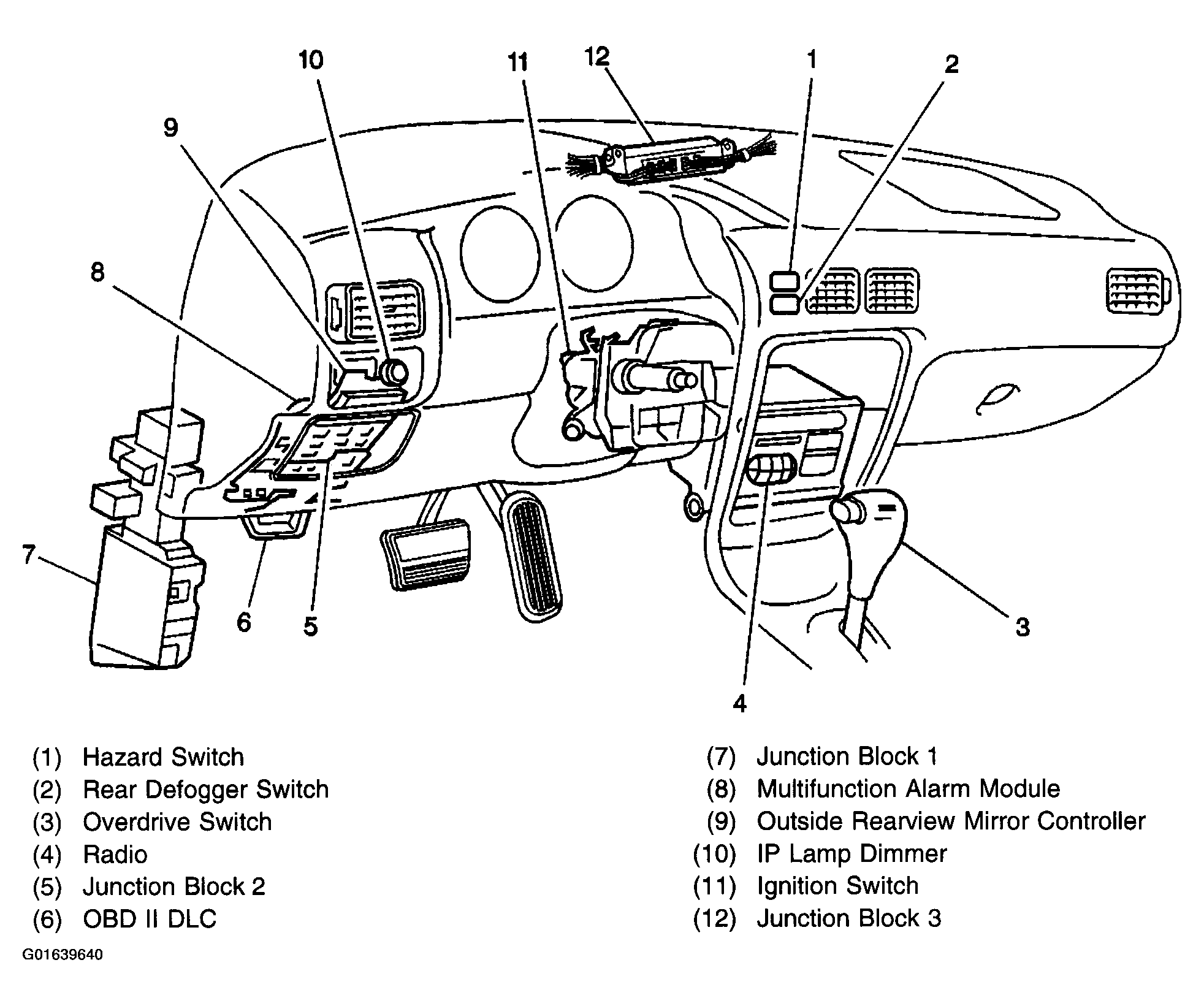

Fig 1: Instrument Panel Assembly (Left Side)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
