Stationary Windows Connector End Views

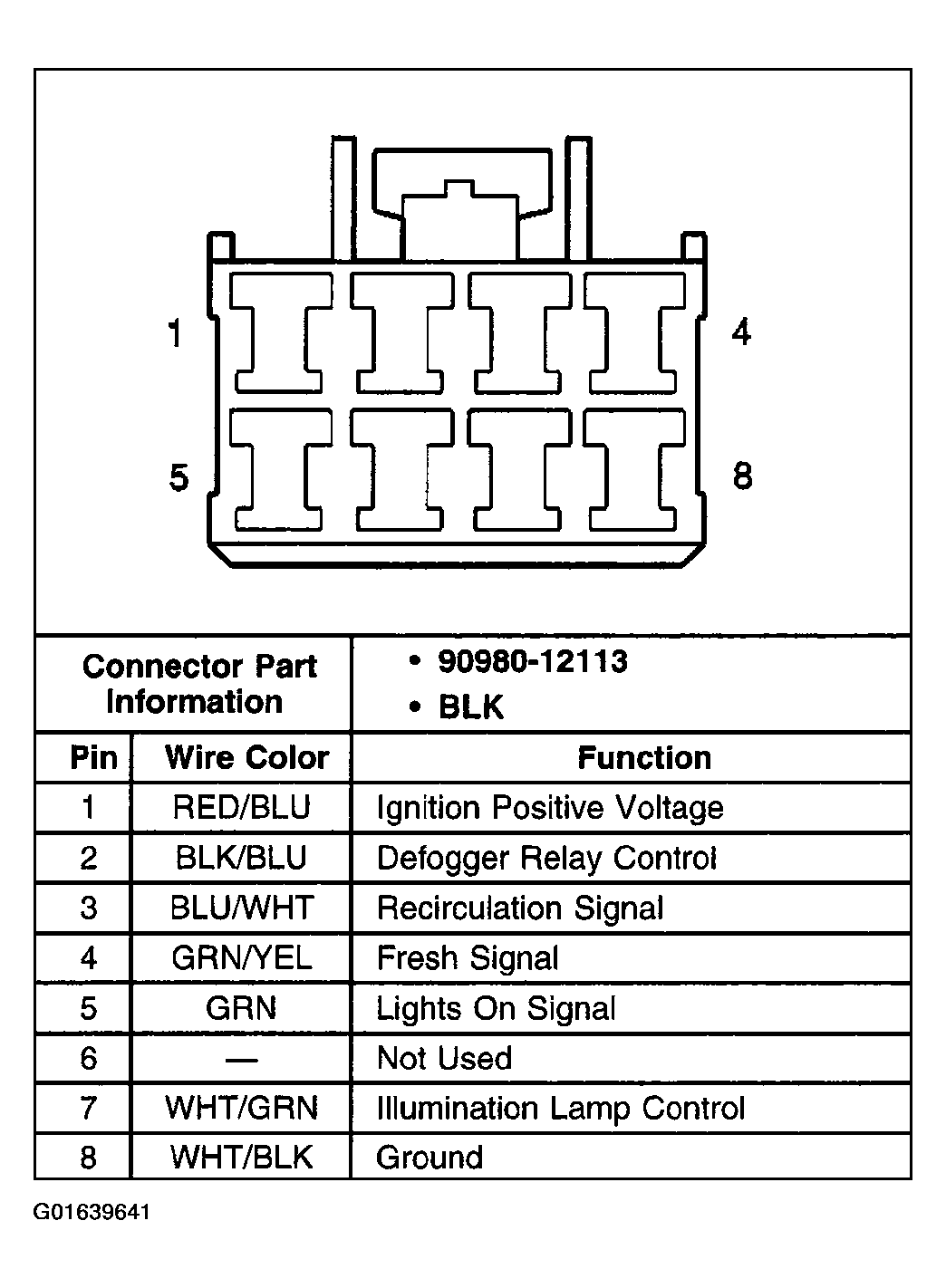

Fig 1: Air Inlet and Rear Defogger Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
