Installation Procedure

Install the LDM (2) to the printed circuit.
Install the Instrument Cluster Assembly (1). Refer to INSTRUMENT PANEL CLUSTER .

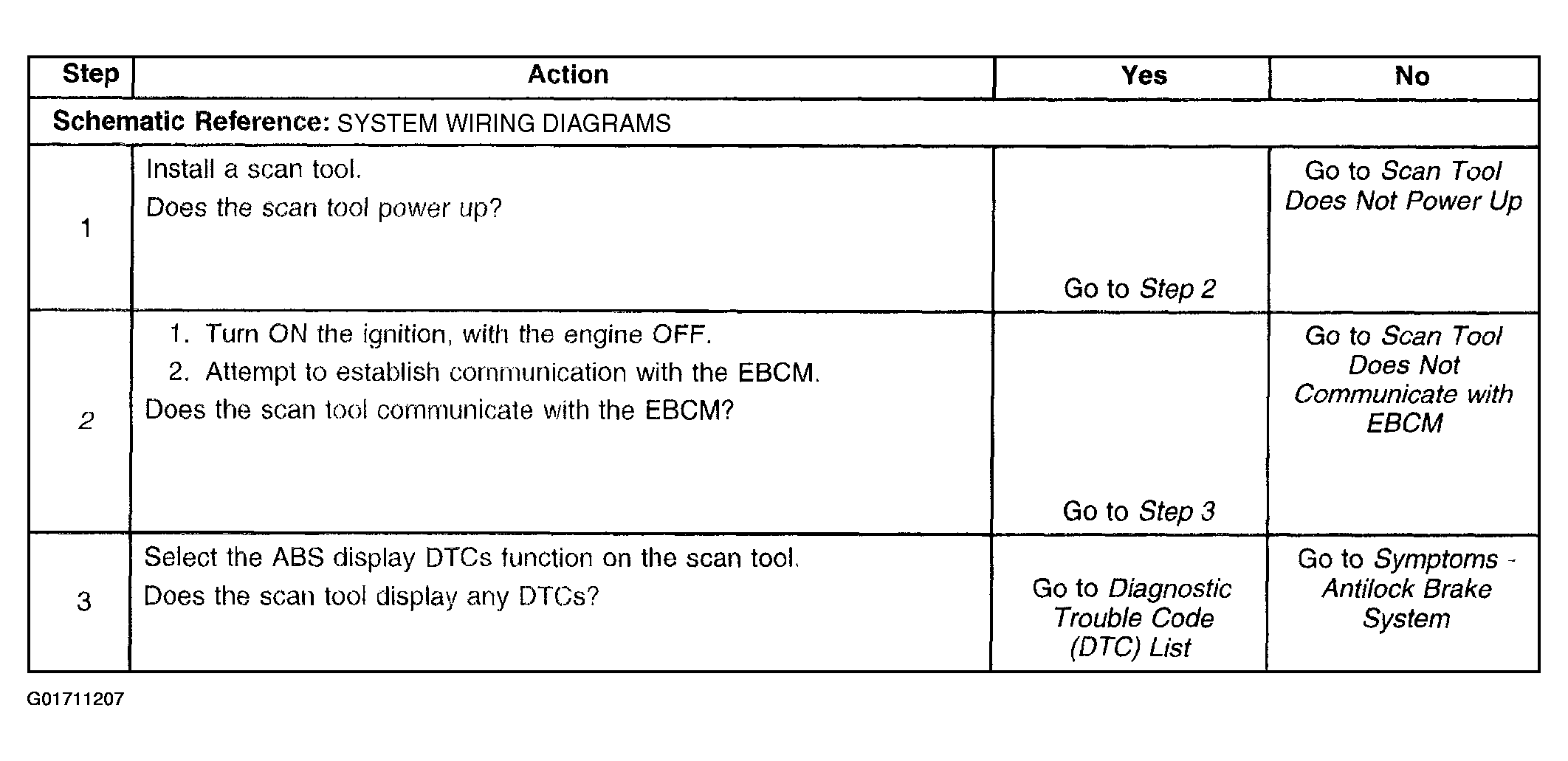

Perform Diagnostic System Check - ABS (Figure).

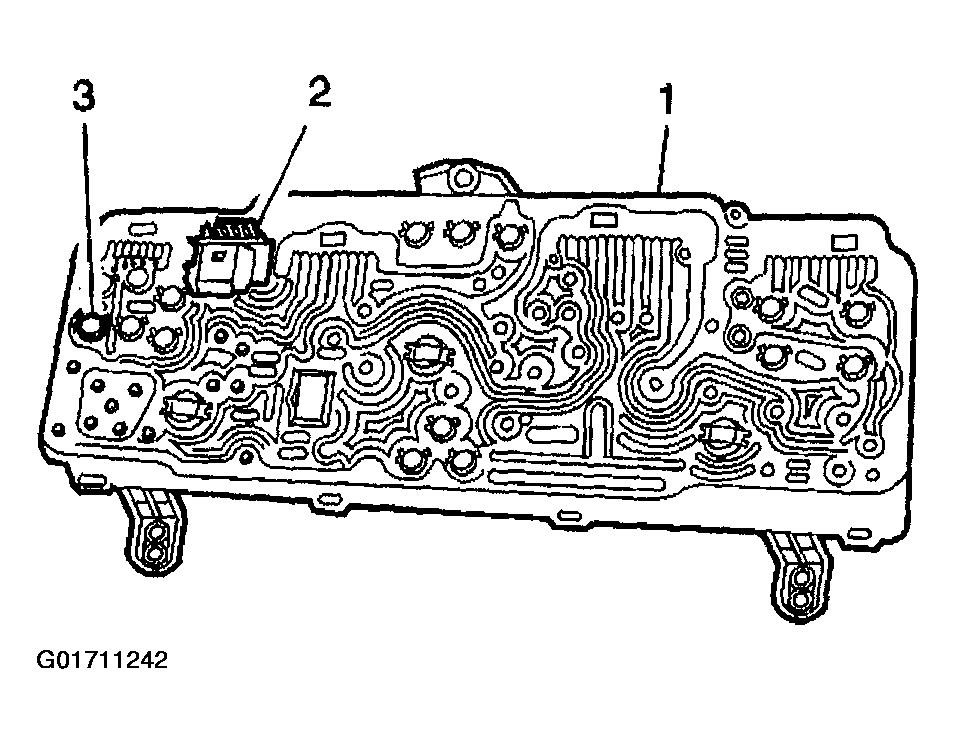

Fig 1: Installing Lamp Driver Module
Courtesy of GENERAL MOTORS CORP.
