Removal Procedure

Remove the Instrument Cluster Assembly (1). Refer to INSTRUMENT PANEL CLUSTER .
Remove the Lamp Driver Module (LDM) (2) from the printed circuit.

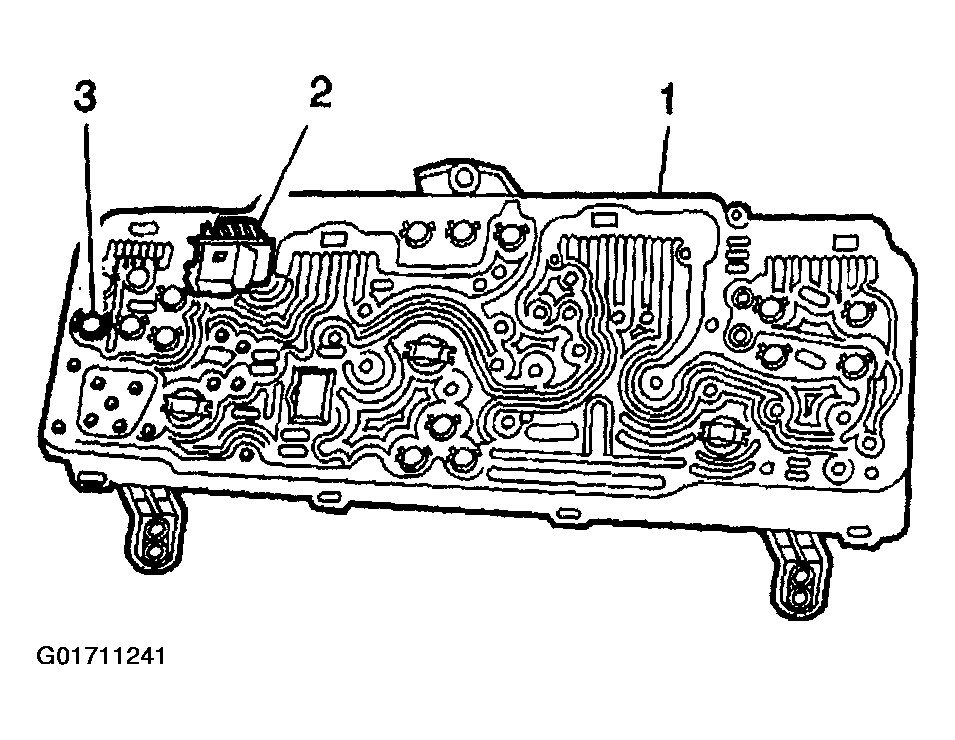

Fig 1: Removing Lamp Driver Module
Courtesy of GENERAL MOTORS CORP.
