Installation Procedure

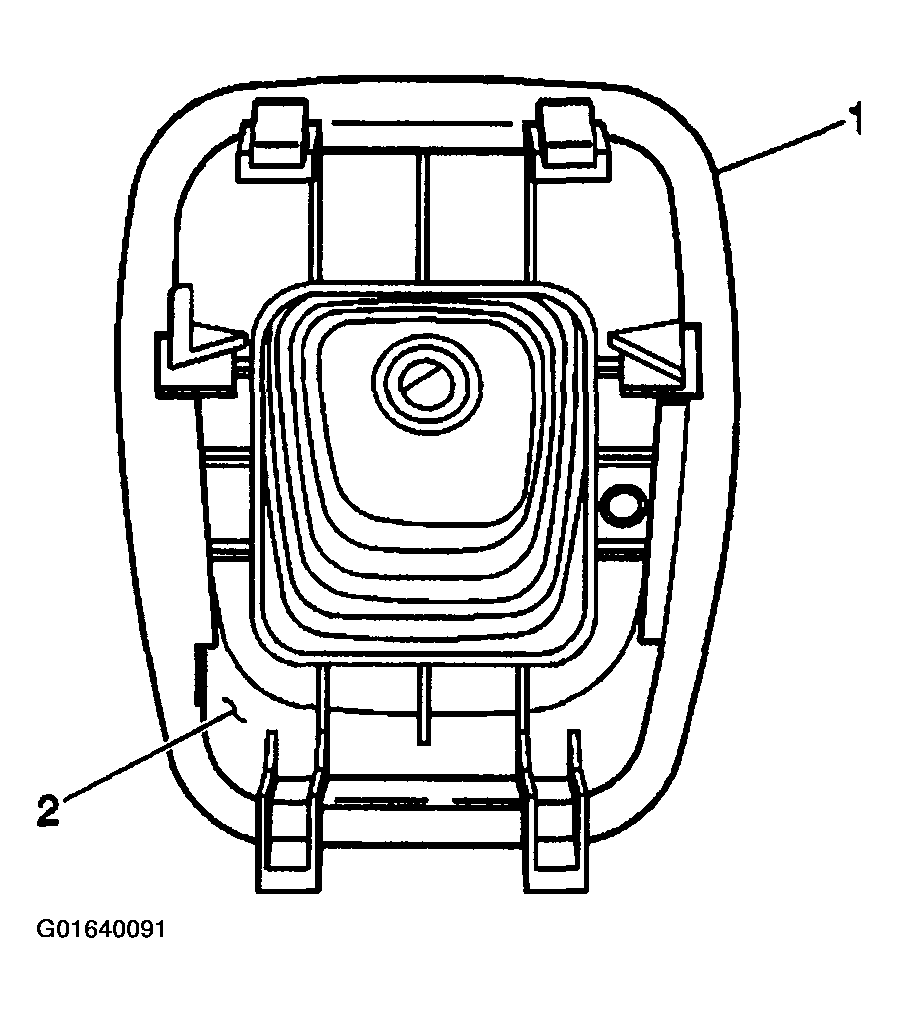

  1. Install the manual transaxle control lever boot (1) to the manual transaxle lever boot retainer (2).
    Fig 1: Installing Manual Transaxle Control Lever Boot
    G01640091Courtesy of GENERAL MOTORS CORP.

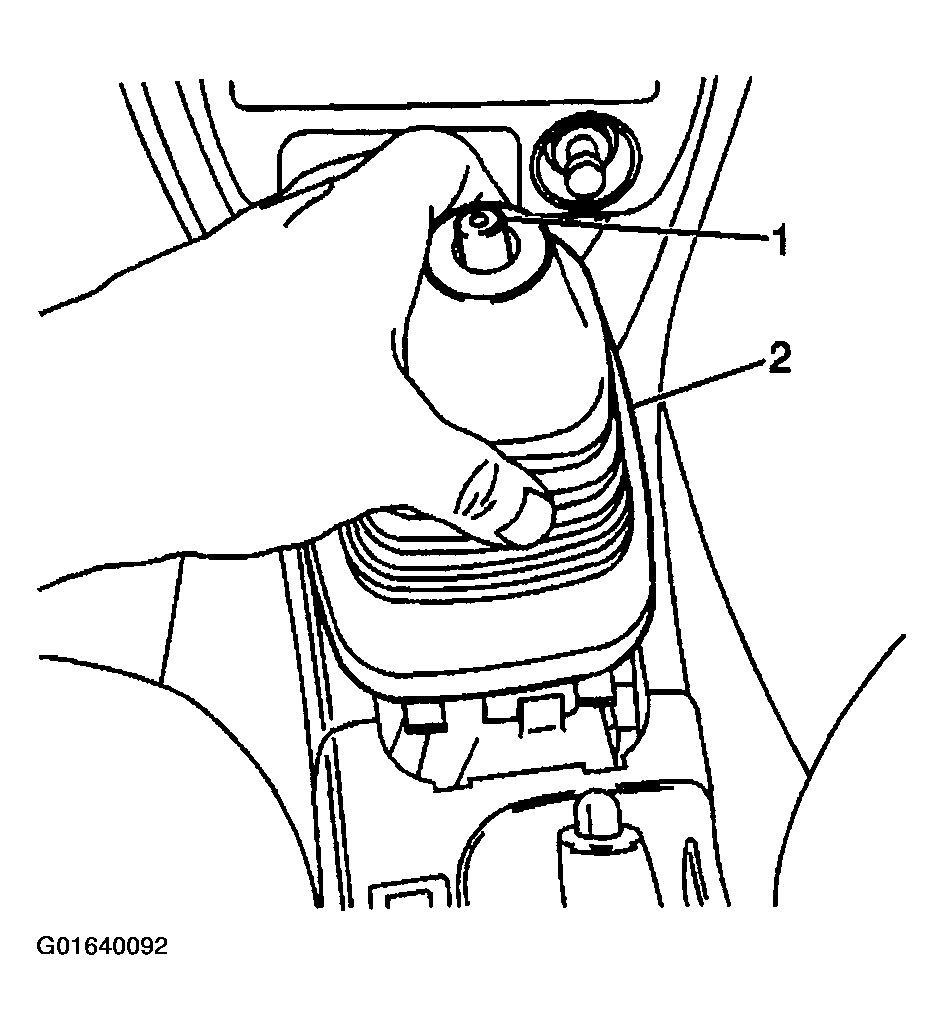

  2. Install the boot and retainer assembly (2) to the front floor consoles. Ensure that the retaining tabs are fully engaged.
    Fig 2: Installing Boot And Retainer Assembly To Front Floor Consoles
    G01640092Courtesy of GENERAL MOTORS CORP.

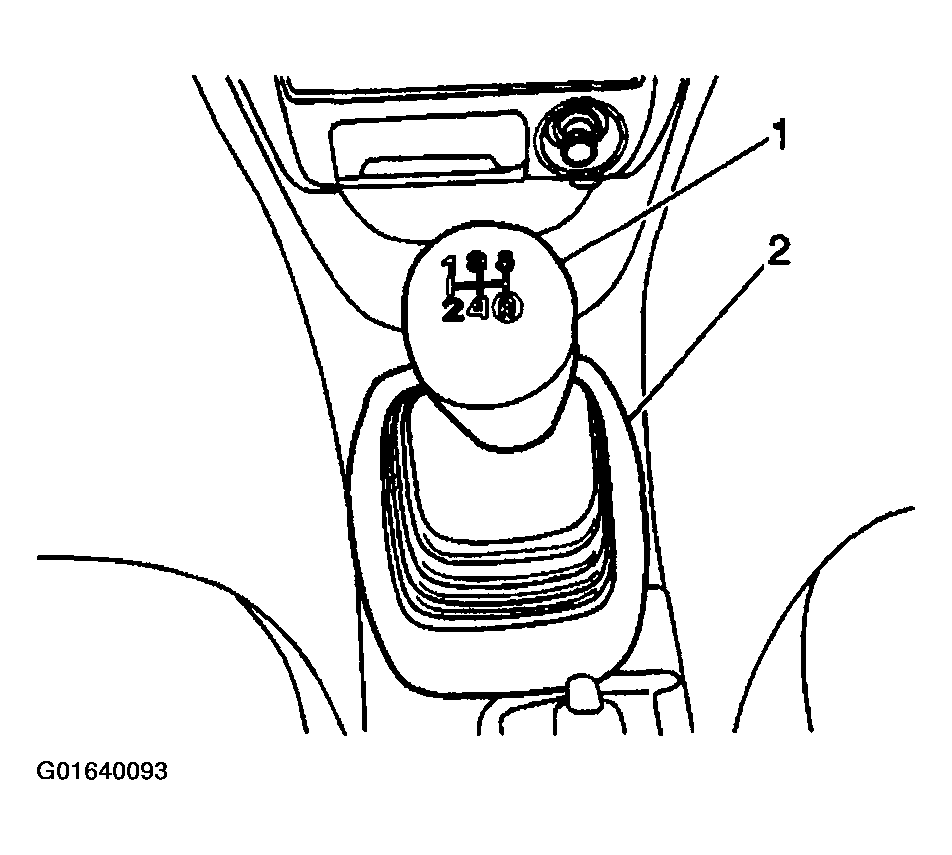

  3. Install the manual transaxle control lever knob (1) to the manual transaxle control lever by turning in a clockwise direction.
    Fig 3: Install the manual transaxle control lever knob
    G01640093Courtesy of GENERAL MOTORS CORP.
