Removal Procedure

  1. Remove the manual transaxle control lever knob (1) from the manual transaxle control lever by turning in a counterclockwise direction.
  2. Remove the manual transaxle control lever boot (2) from the control lever by pulling up to disengage the boot from the manual transaxle control lever boot retainer.

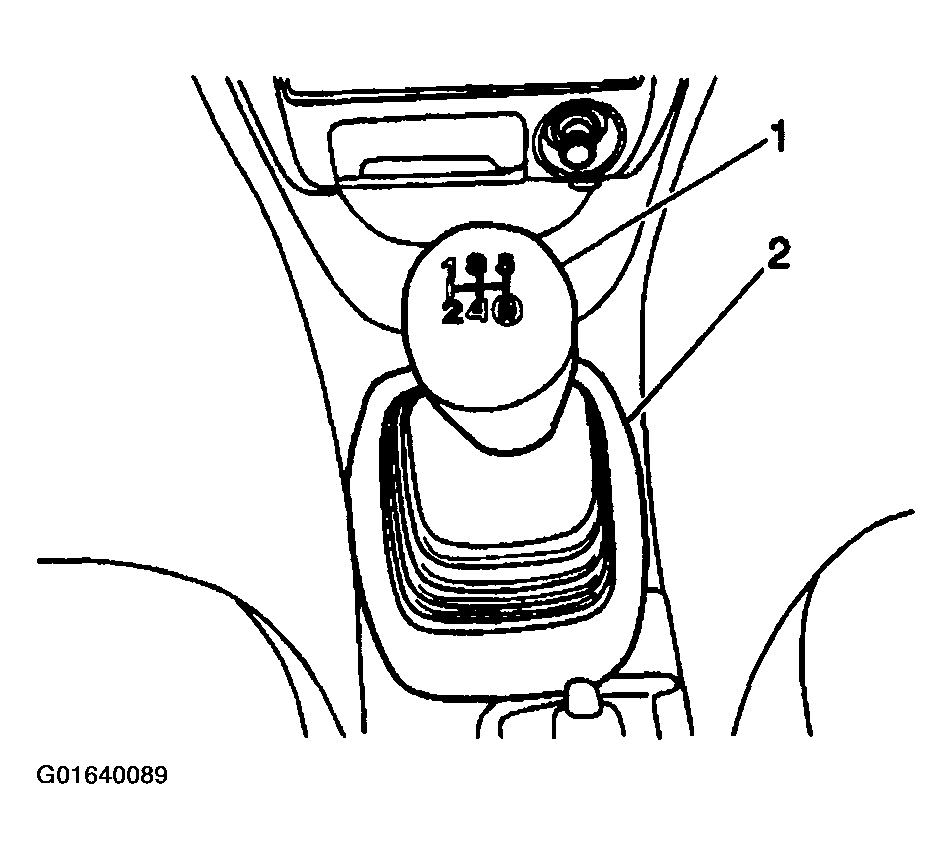

    Fig 1: Removing Manual Transaxle Control Lever Knob
    G01640089Courtesy of GENERAL MOTORS CORP.
  3. Remove the boot retainer (3) from the front floor consoles (2) by releasing the 2 retaining tabs.

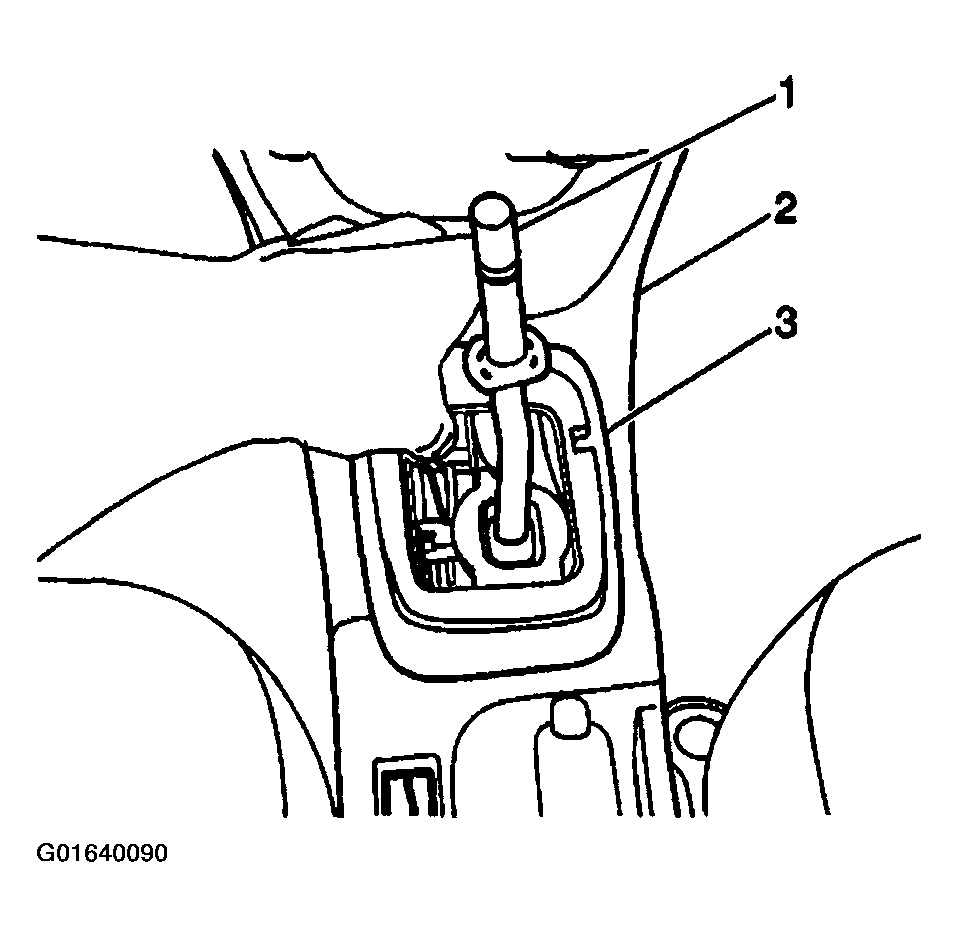

    Fig 2: Removing Boot Retainer From Front Floor Consoles
    G01640090Courtesy of GENERAL MOTORS CORP.
