Installation Procedure

Install the engine tachometer (1) to the instrument cluster case.

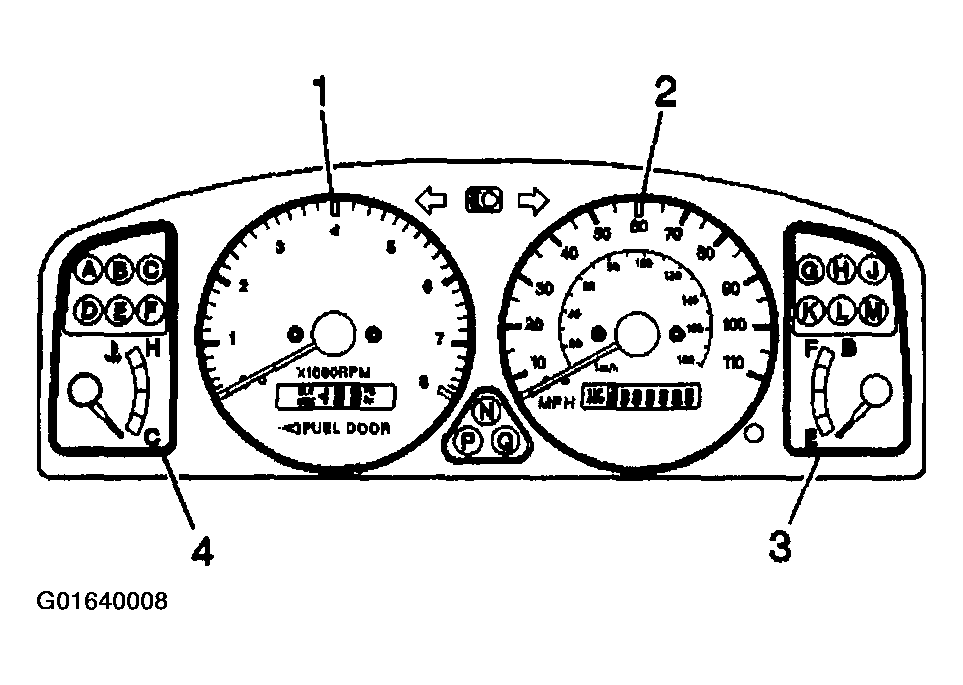

Fig 1: Installing Engine Tachometer To Instrument Cluster Case
Courtesy of GENERAL MOTORS CORP.
Secure the tachometer with the 6 screws (3).
Install the instrument cluster retainer. Refer to BEZEL REPLACEMENT - IP Cluster .

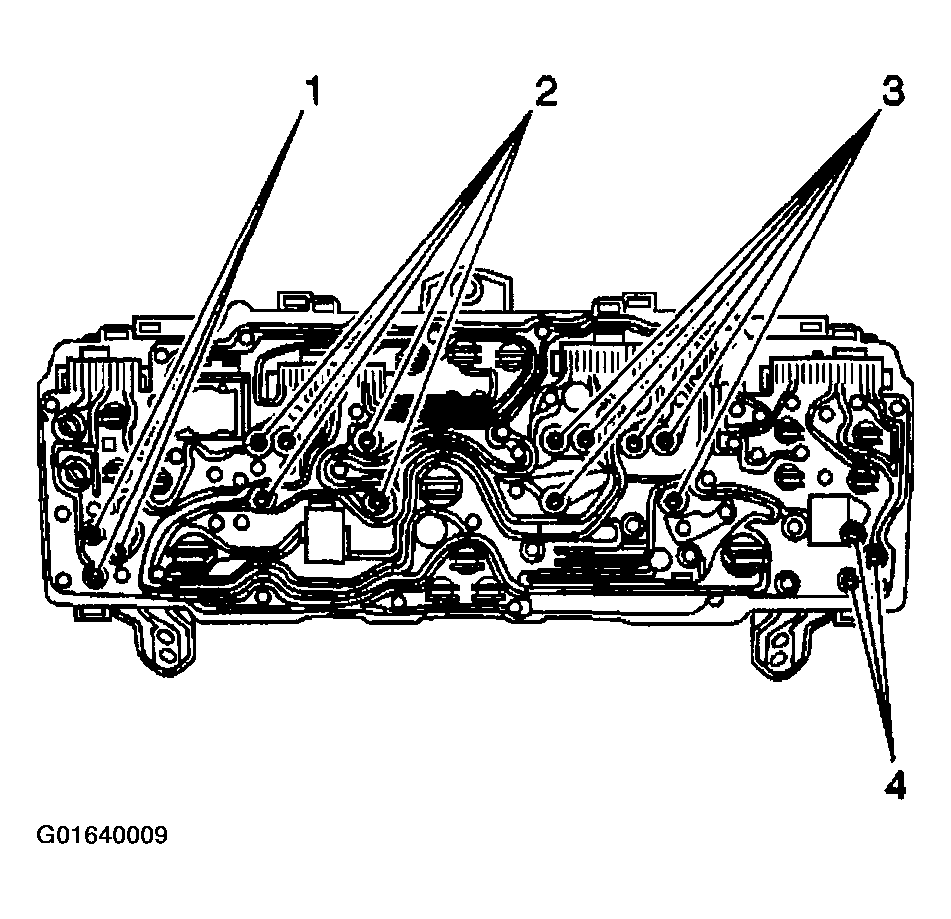

Fig 2: Securing Tachometer With 6 Screws
Courtesy of GENERAL MOTORS CORP.
