Starting System: Overhaul

NOTE: To overhaul starter, see Fig 1 . To overhaul starter solenoid, see Fig 2 .

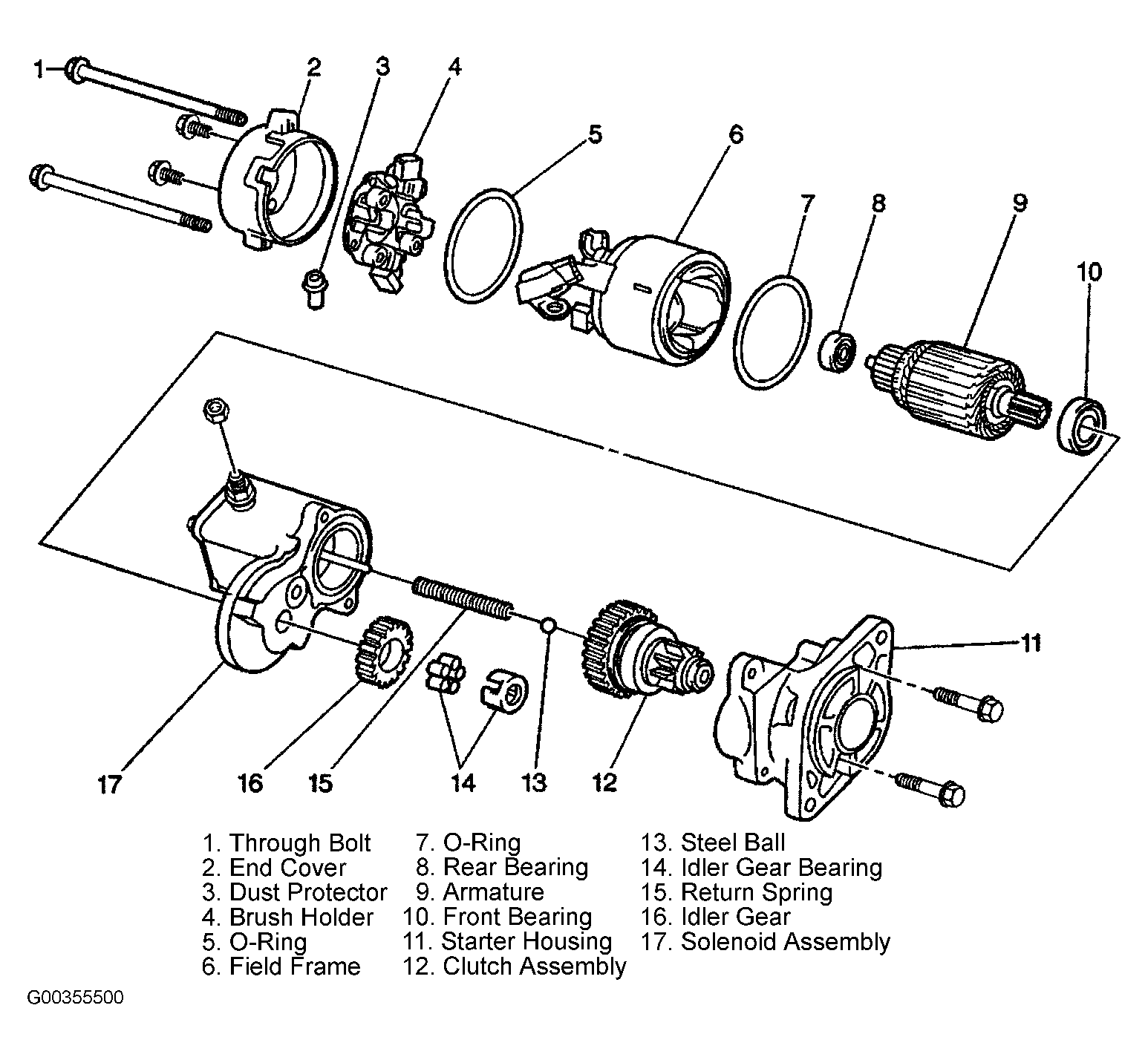

Fig 1: Exploded View Of Starter

Courtesy of GENERAL MOTORS CORP.

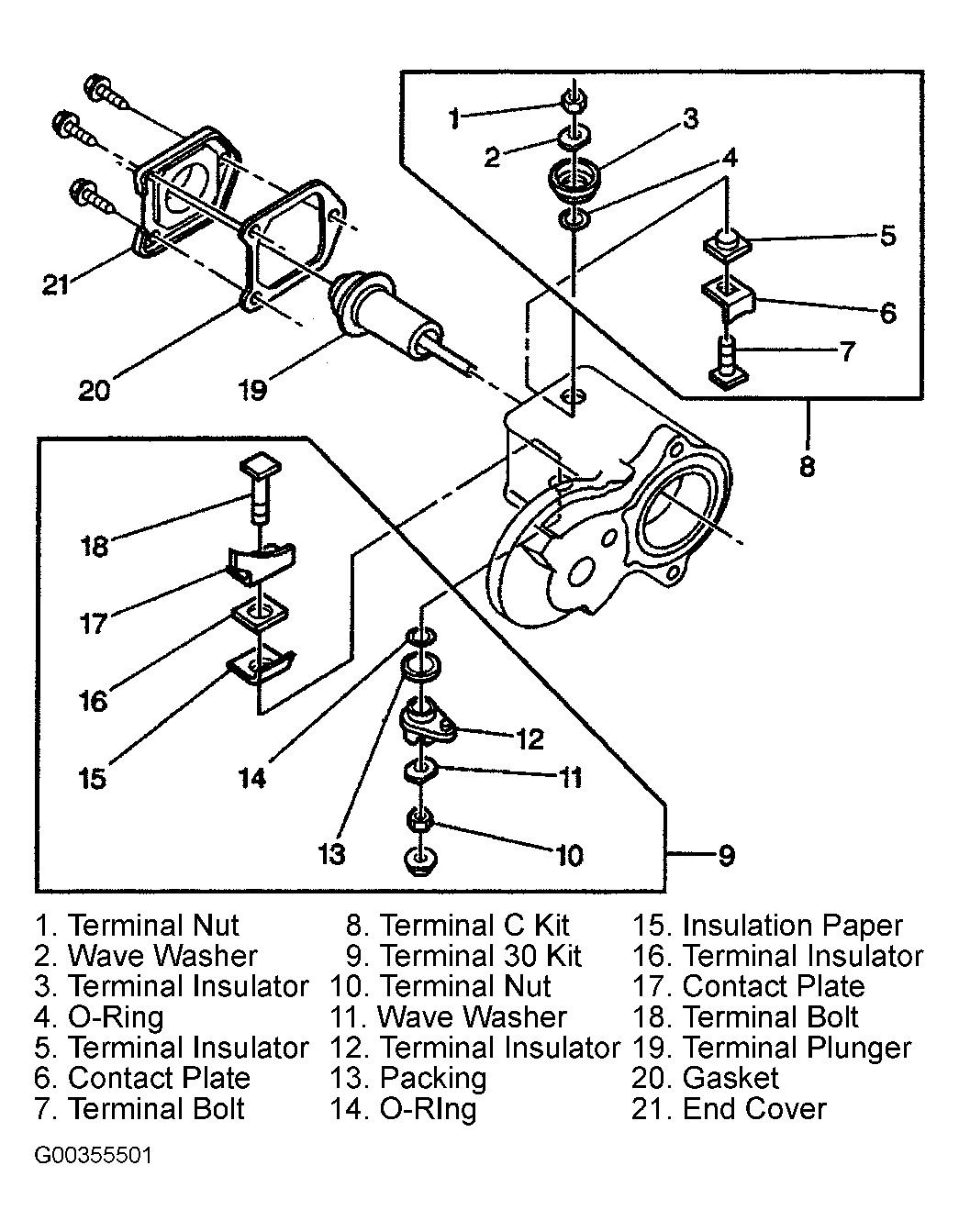

Fig 2: Exploded View Of Starter Solenoid

Courtesy of GENERAL MOTORS CORP.
