Cooling System Connector End Views

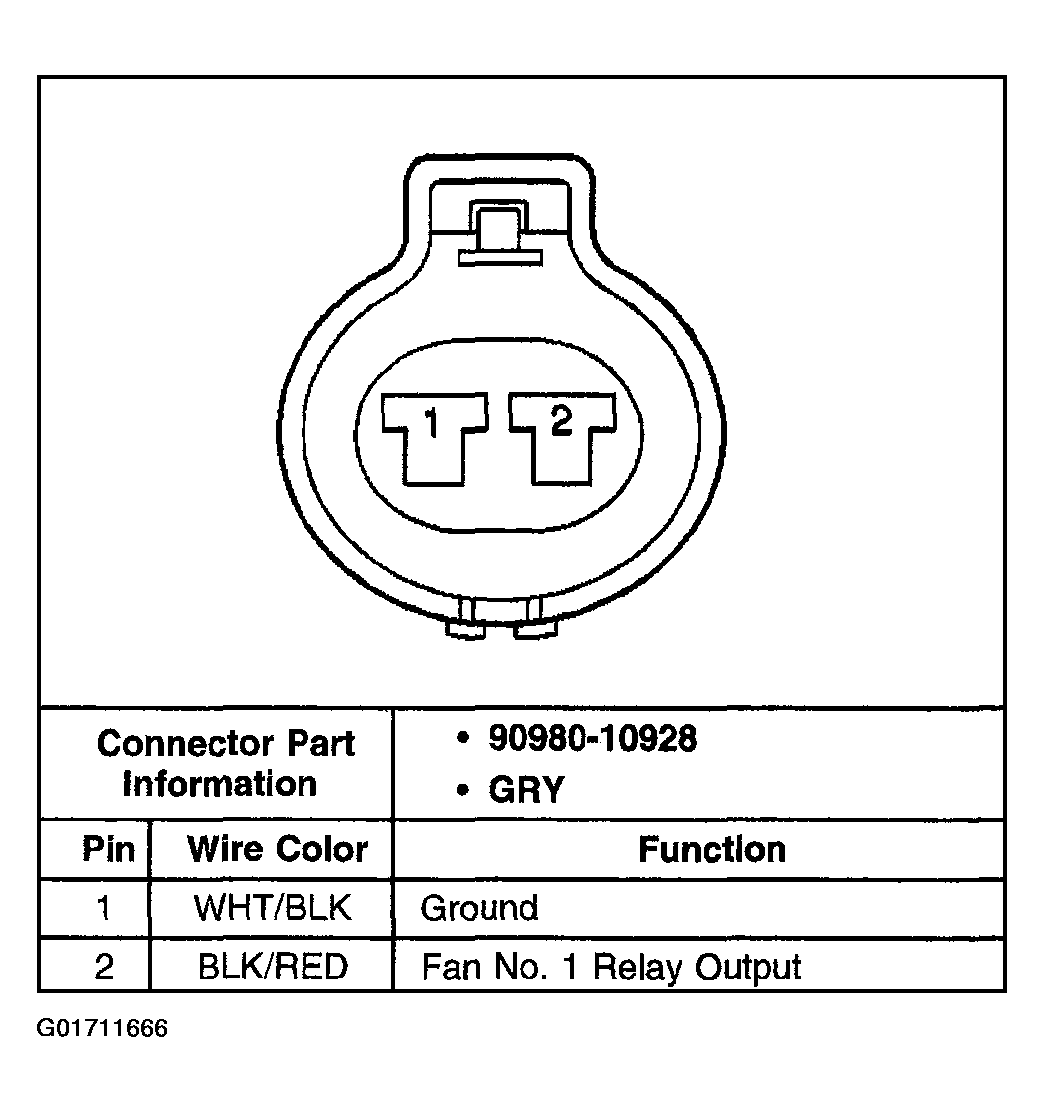

Fig 1: Main Fan Motor

Courtesy of GENERAL MOTORS CORP.

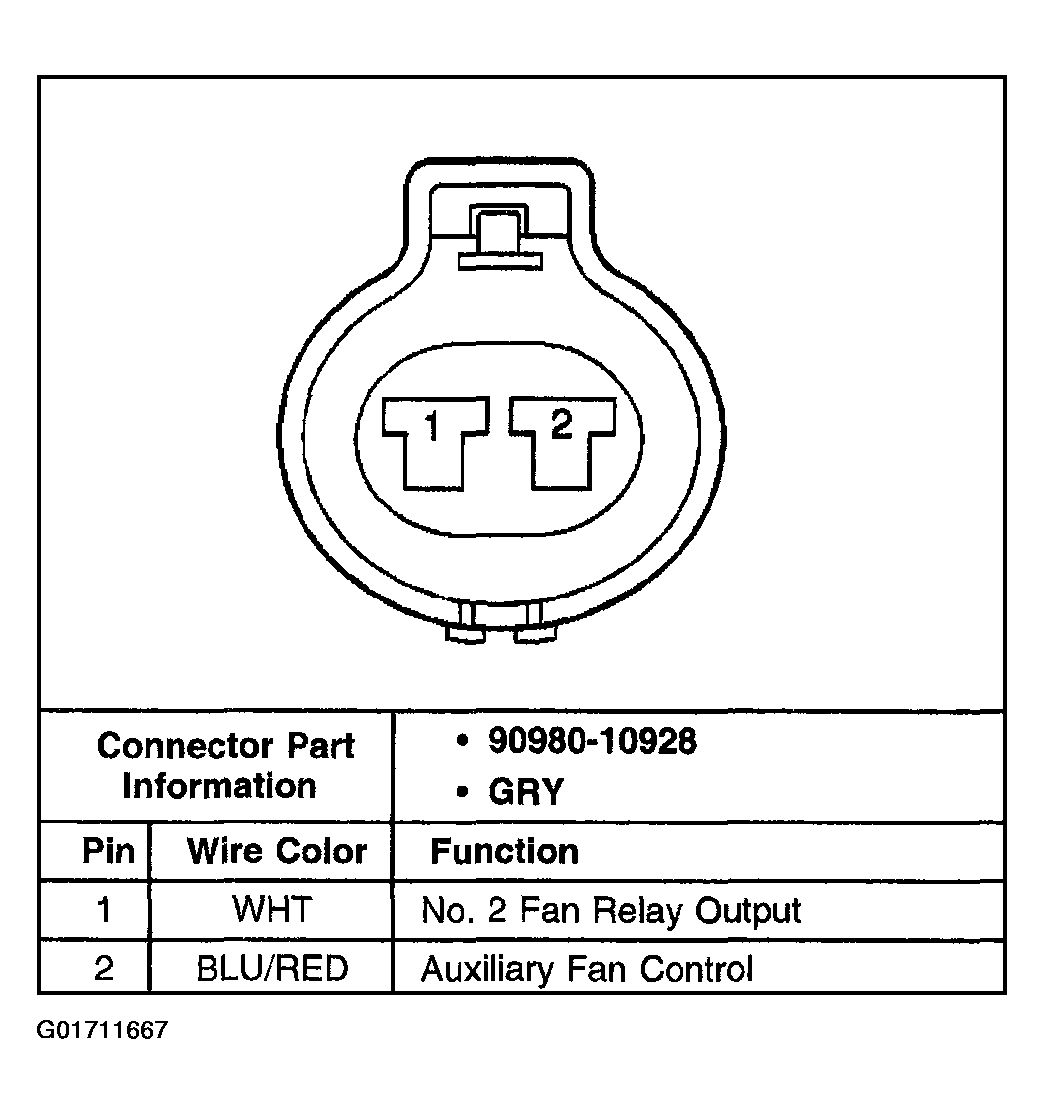

Fig 2: Auxiliary Fan Motor

Courtesy of GENERAL MOTORS CORP.

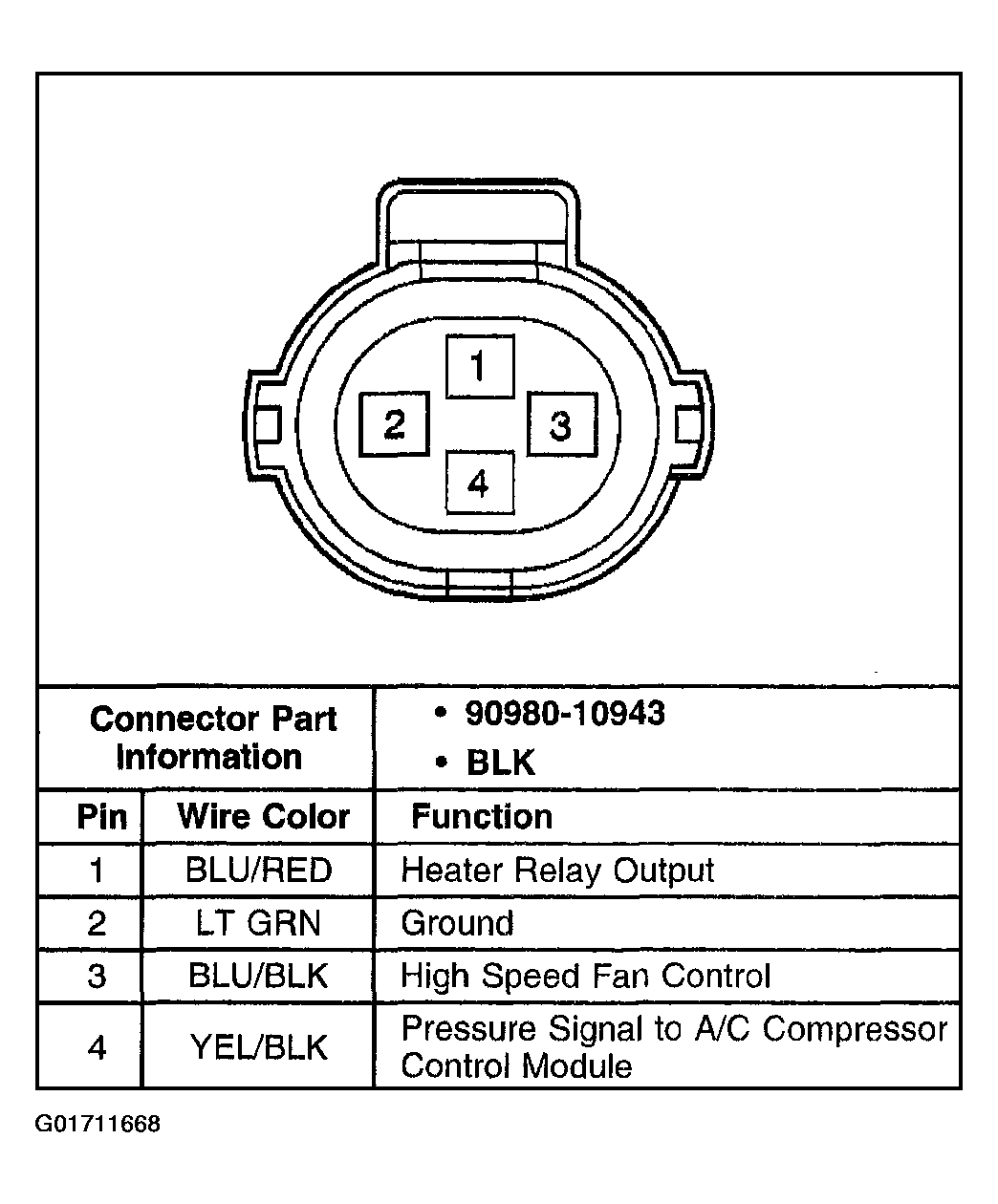

Fig 3: Refrigerant Pressure Switch

Courtesy of GENERAL MOTORS CORP.
