A/C Switch Connector End View
A/C Switch Connector End View

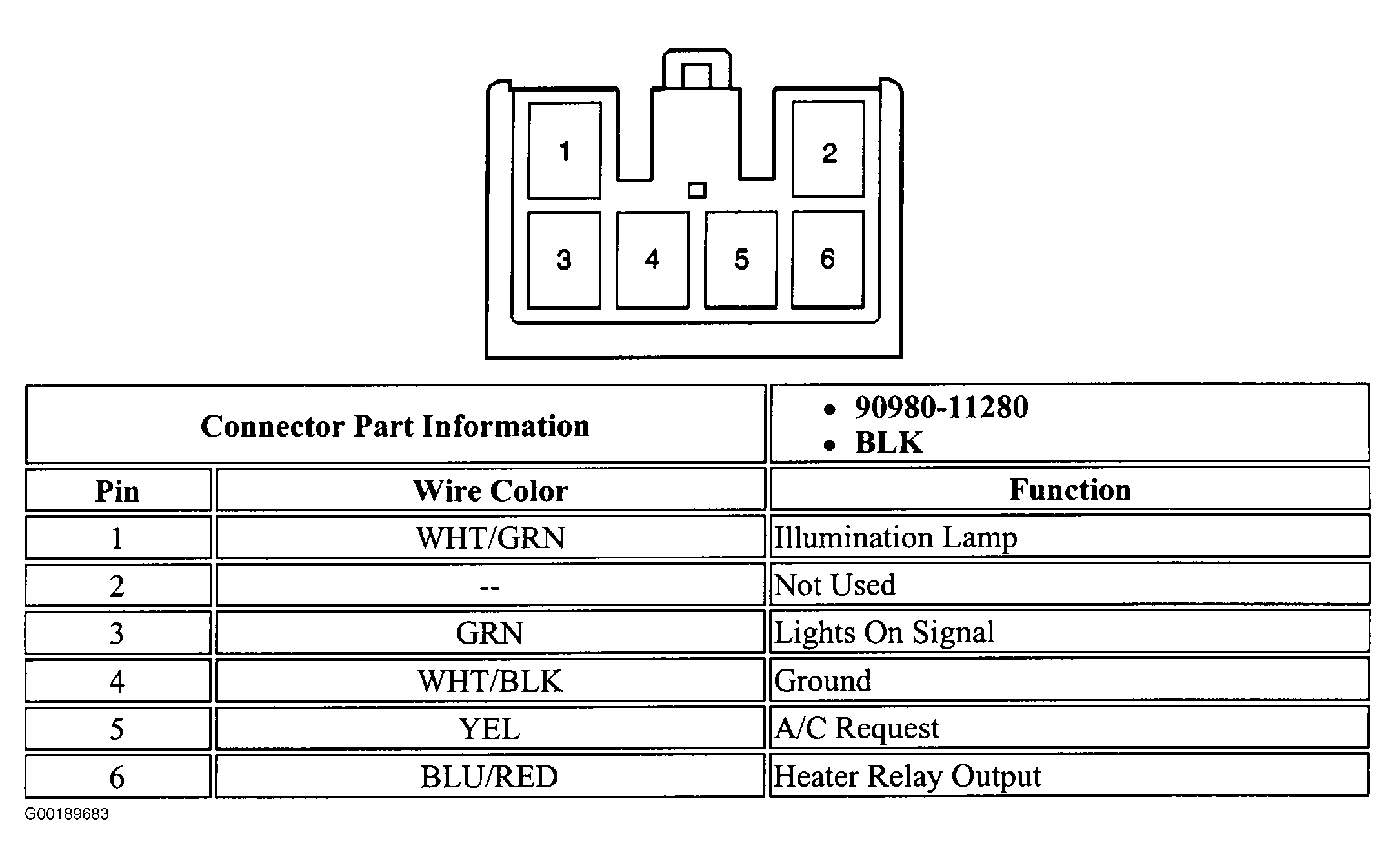

Fig 1: A/C Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
