Defogger Switch Connector End View
Defogger Switch Connector End View

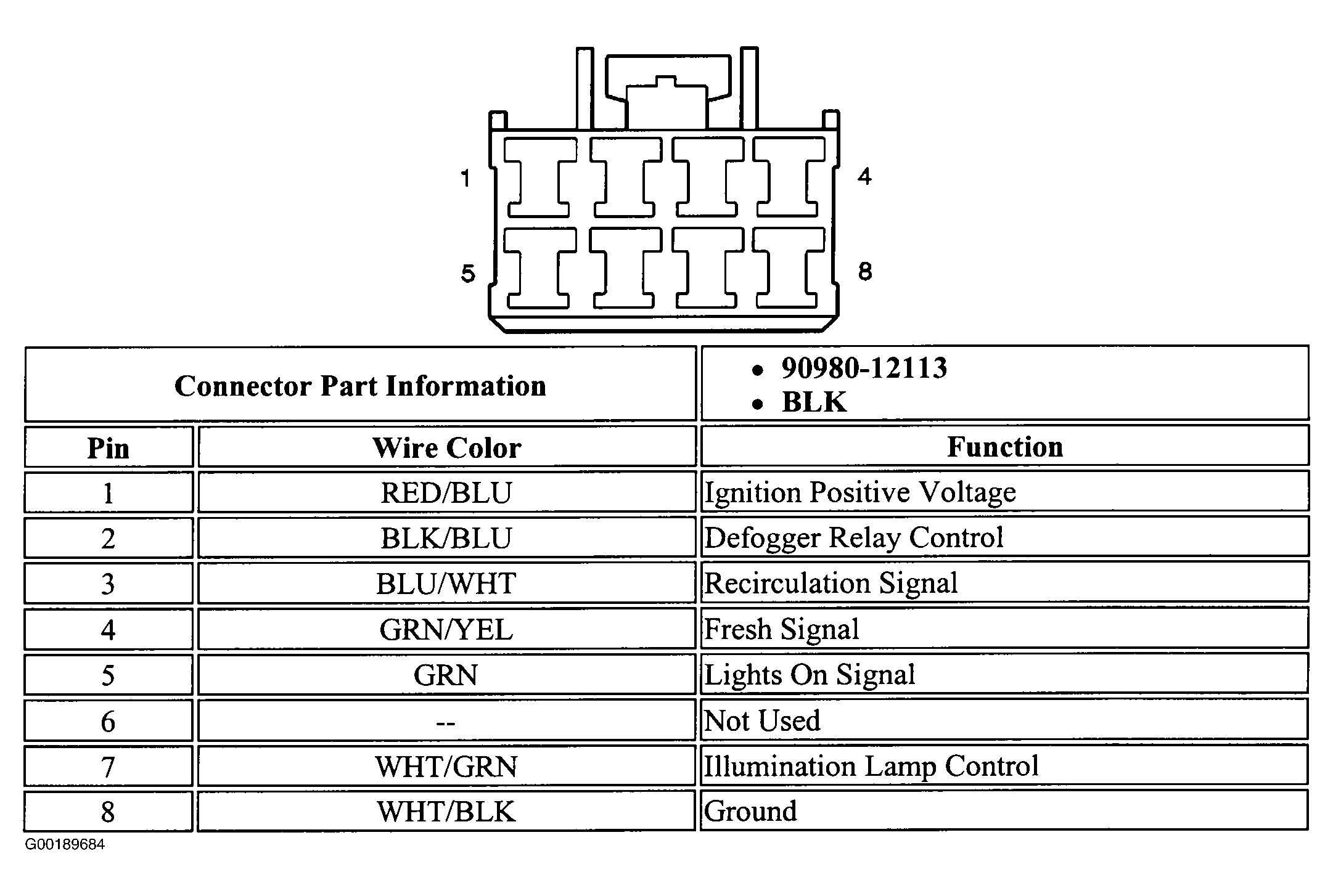

Fig 1: Defogger Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
