Instrument Cluster Assembly Connector End View C4
Instrument Cluster Assembly Connector End View C4

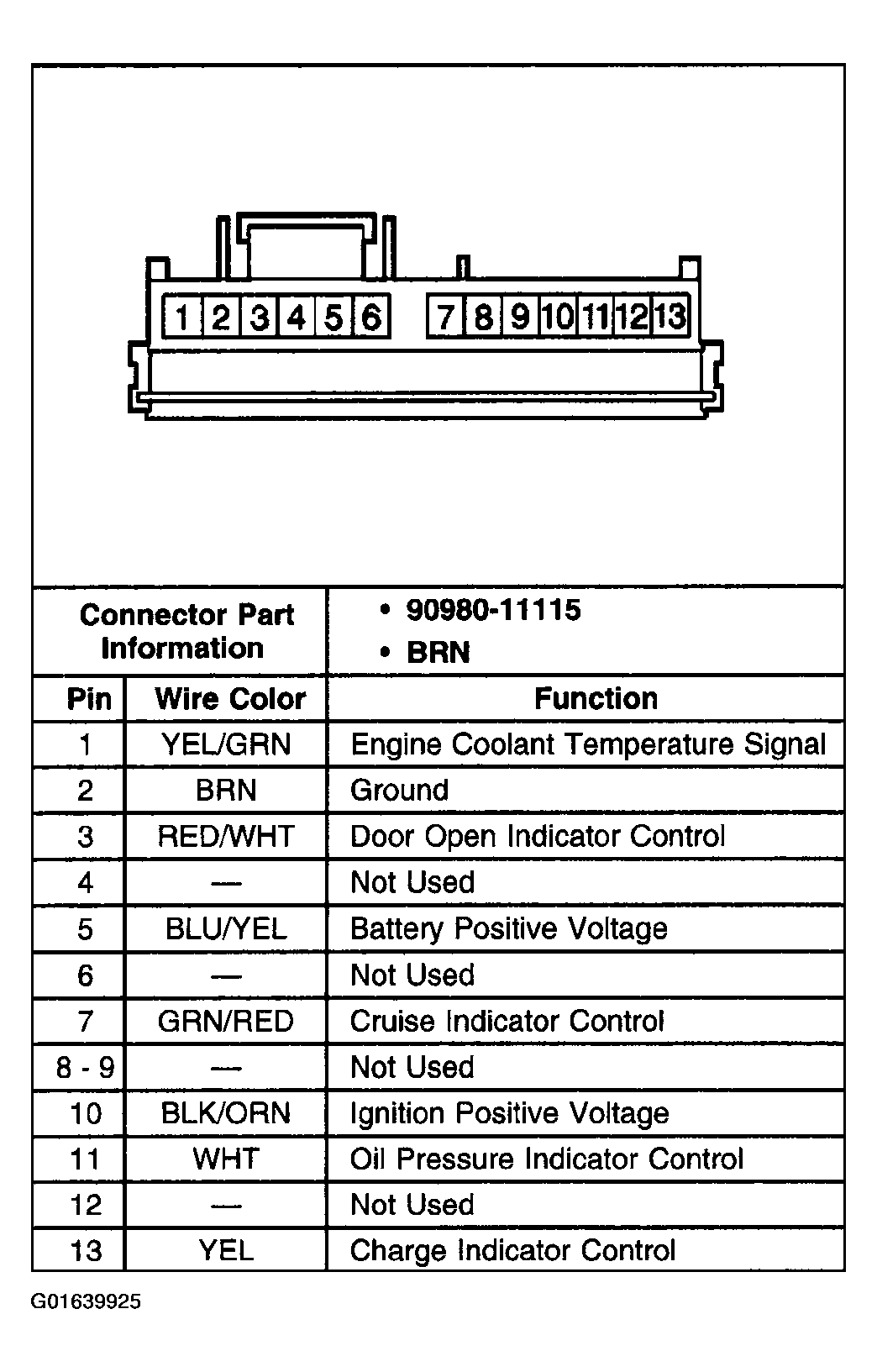

Fig 1: Instrument Cluster Assembly C4
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
