Left Front Wheel Speed Sensor Connector End View
Left Front Wheel Speed Sensor Connector End View

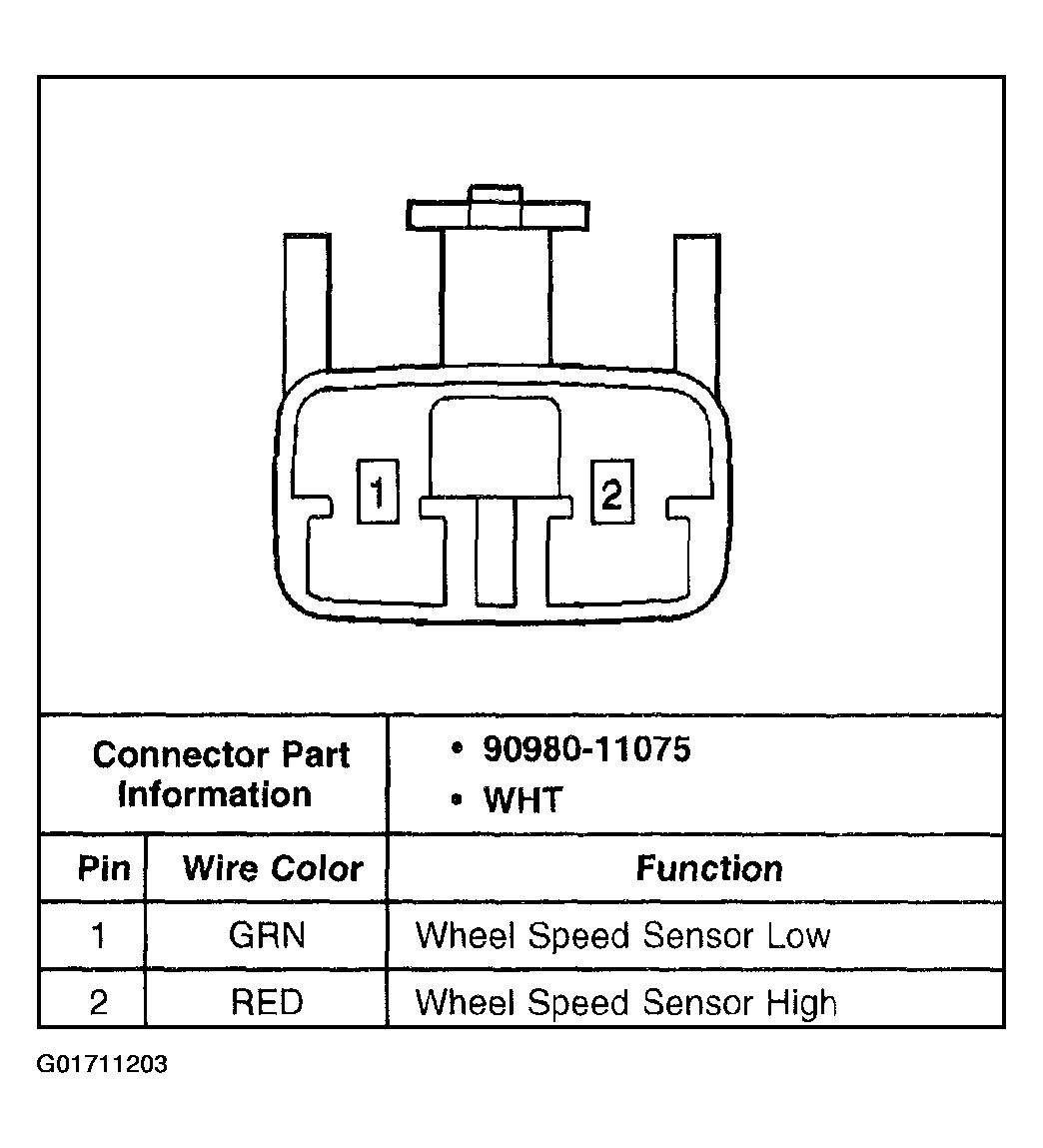

Fig 1: Left Front Wheel Speed Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
