Sunroof Switch Assembly Connector End Views

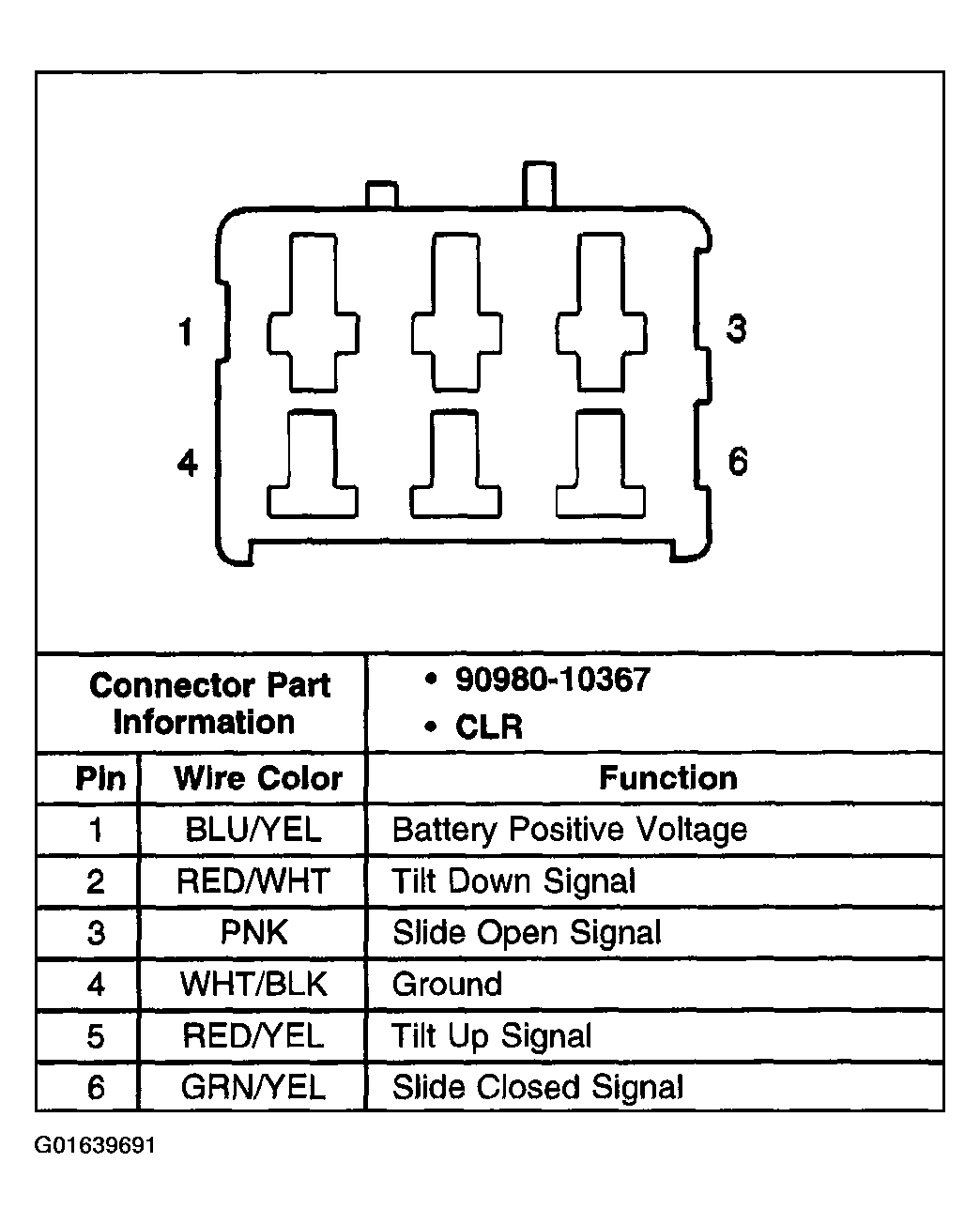

Fig 1: Sunroof Switch Assembly
G01639691Courtesy of GENERAL MOTORS CORP.
