Steering
›
Steering Wheel And Steering Column
›
Component Locator
›
Steering Column Disassembled View (Standard Column)
Steering Column Disassembled View (Standard Column)

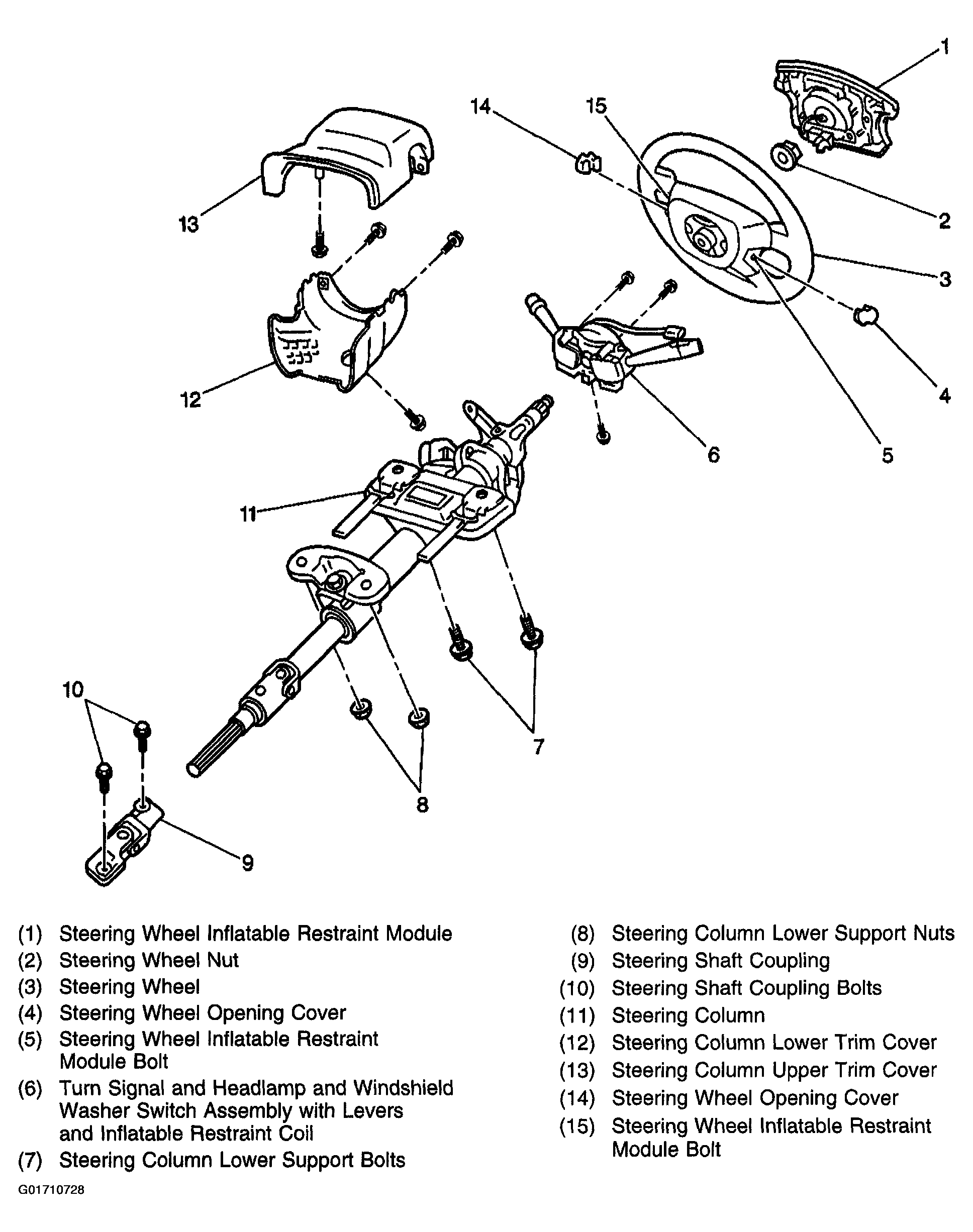

Fig 1: Standard Steering Wheel and Column Disassembled View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
