Steering Column Disassembled View (Tilt Column)
Steering Column Disassembled View (Tilt Column)

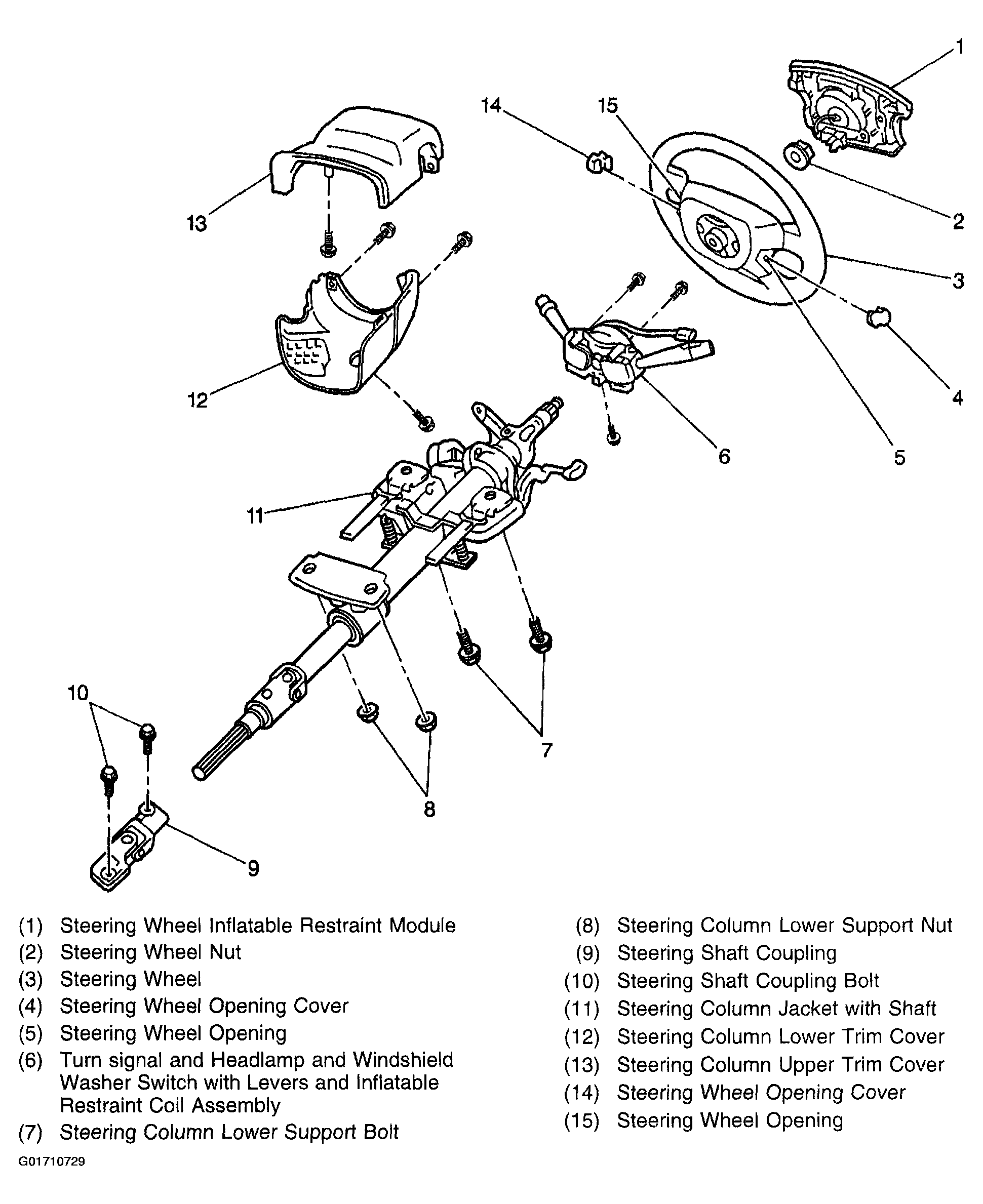

Fig 1: Tilt Steering Wheel and Column Disassembled View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
