Installation Procedure

  1. Install the ignition switch (6). Secure with 2 screws.
  2. Connect the ignition switch electrical connector.
    Fig 1: Installing Ignition Switch
    G01710749Courtesy of GENERAL MOTORS CORP.
  3. Install the steering column upper trim cover (7). Secure with 1 screw.
  4. Install the steering column lower trim cover (6). Secure with 3 screws.

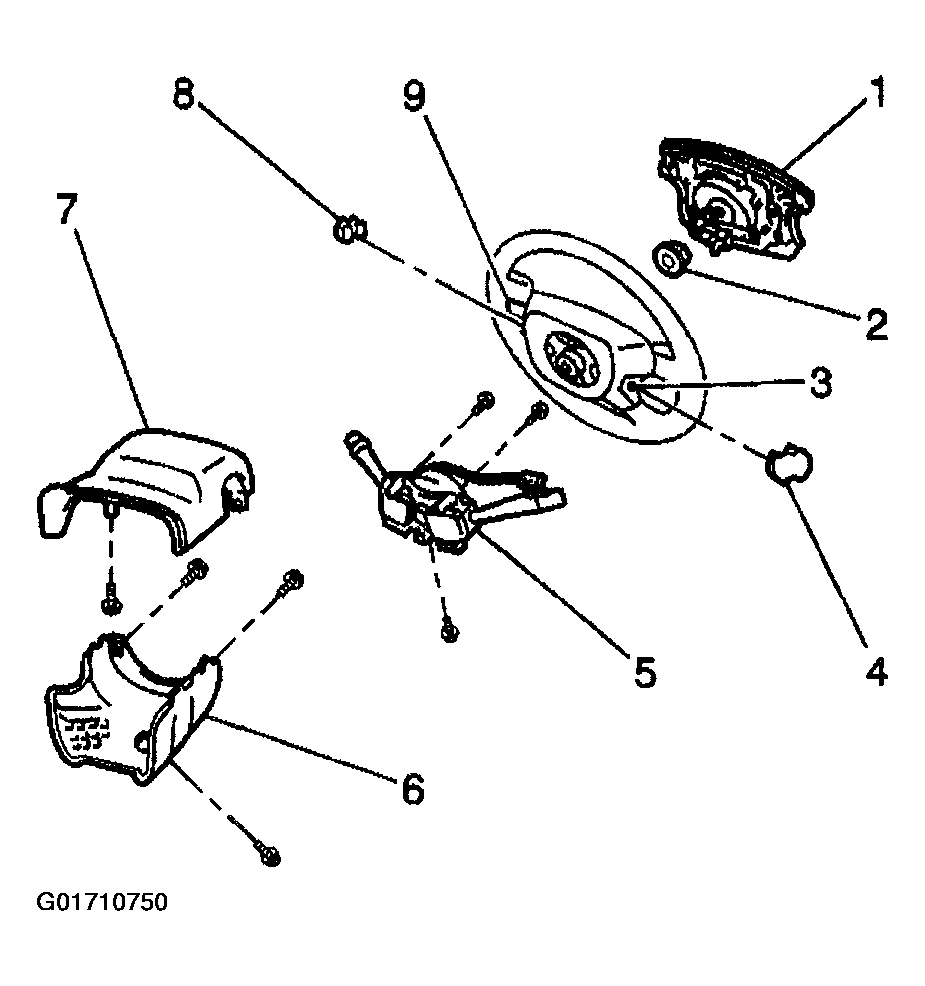

    5. Fig 2: Installing Steering Column Upper Trim Cover
    G01710750Courtesy of GENERAL MOTORS CORP.
  5. Install the knee bolster and the knee bolster trim panel. Refer to KNEE BOLSTER REPLACEMENT .
  6. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
