Installation Procedure
- If you are installing a new steering shaft coupling, copy the match mark from the old coupling to the new coupling.

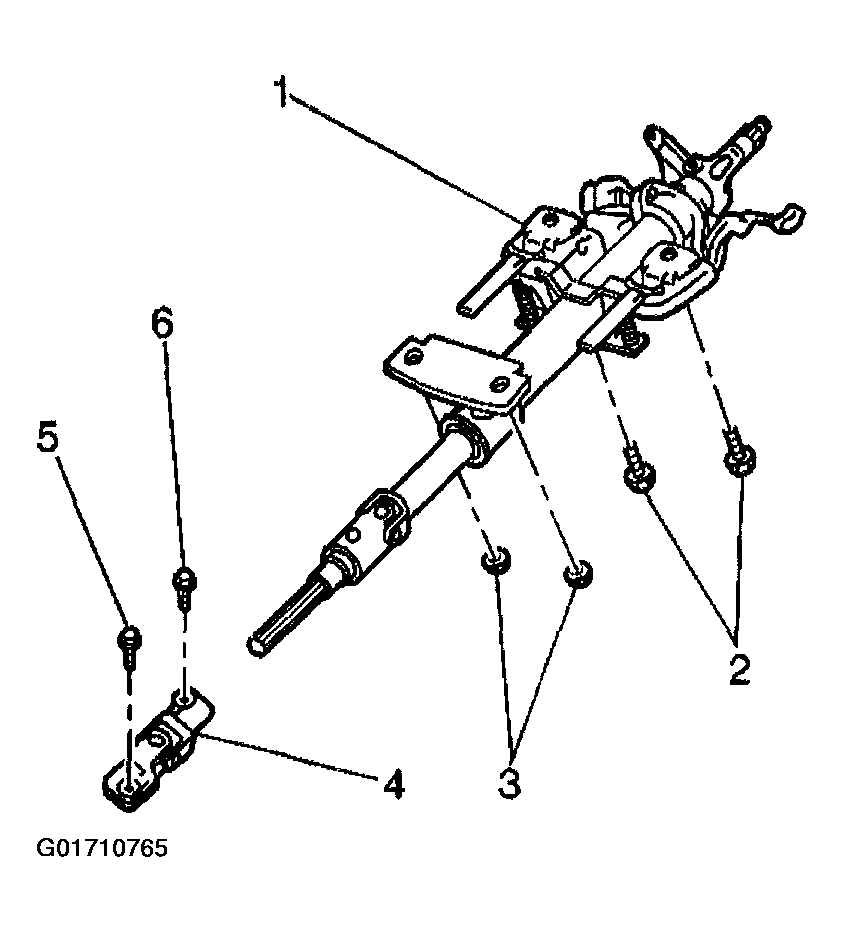

- Move the coupling (4) onto the steering column shaft.

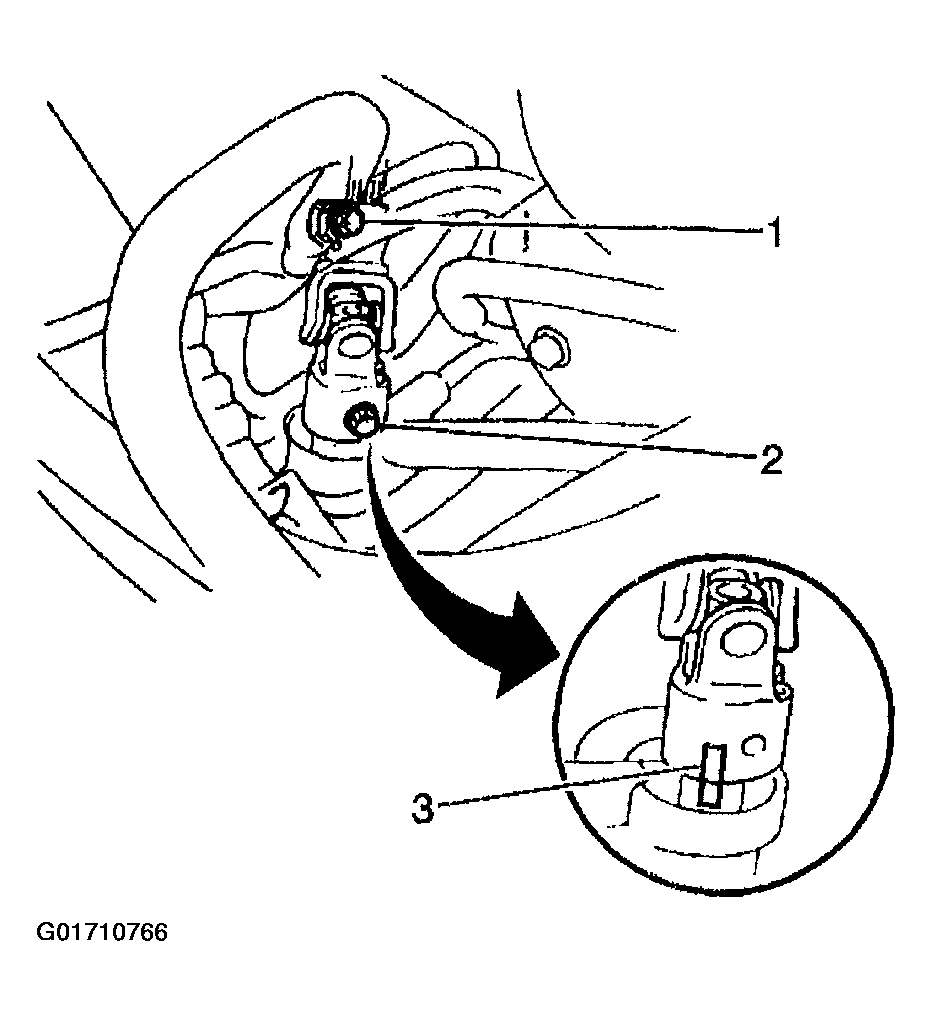

- Align the match marks (3) and move the coupling onto the steering gear pinion shaft.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Install the upper bolt (1) and the lower bolt (2) to the coupling.
Tighten the 2 bolts to 35 N.m (26 lb ft).
