Chevrolet
›
2002
›
Prizm LSi, Automatic, A131L/MB3
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Brake System
›
Component Locator
›
ABS Connector End Views
ABS Connector End Views

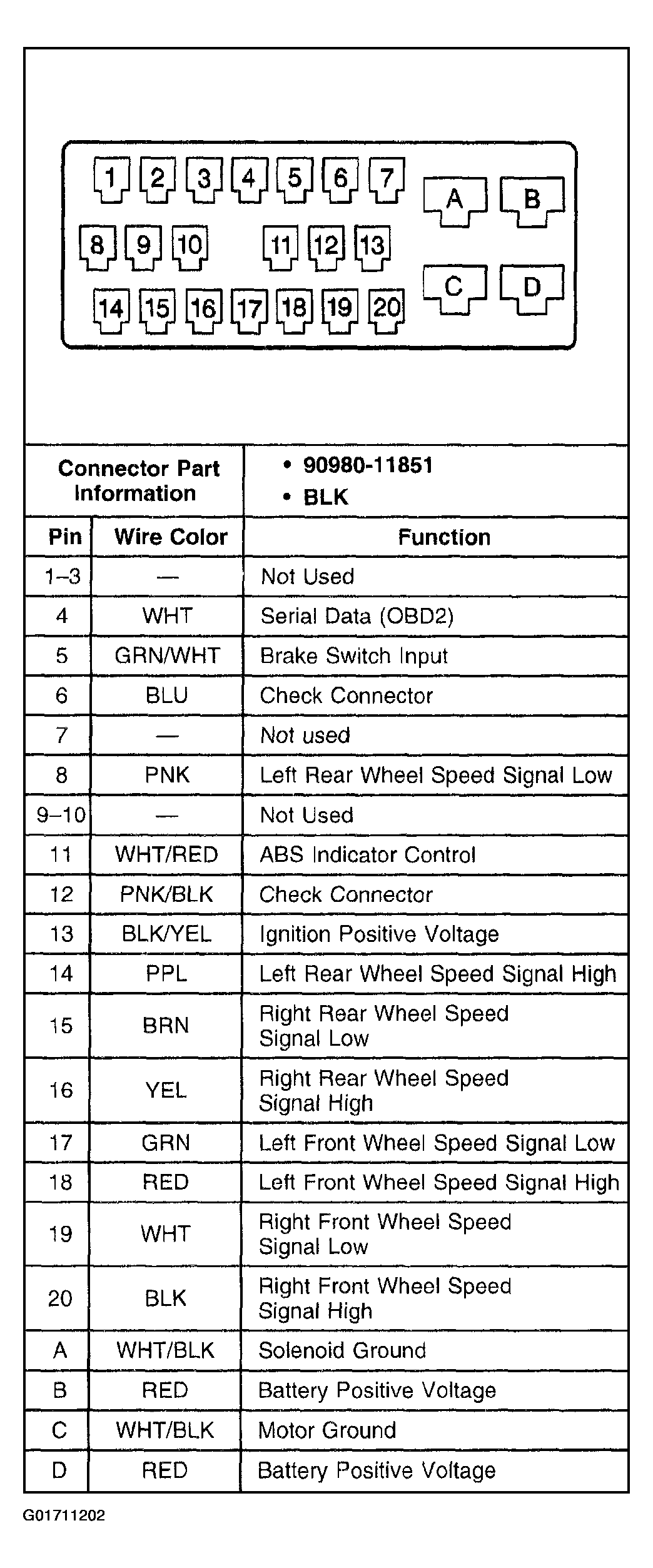

Fig 1: Brake Pressure Modulator Valve (BPMV)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left Front Wheel Speed Sensor
Courtesy of GENERAL MOTORS CORP.

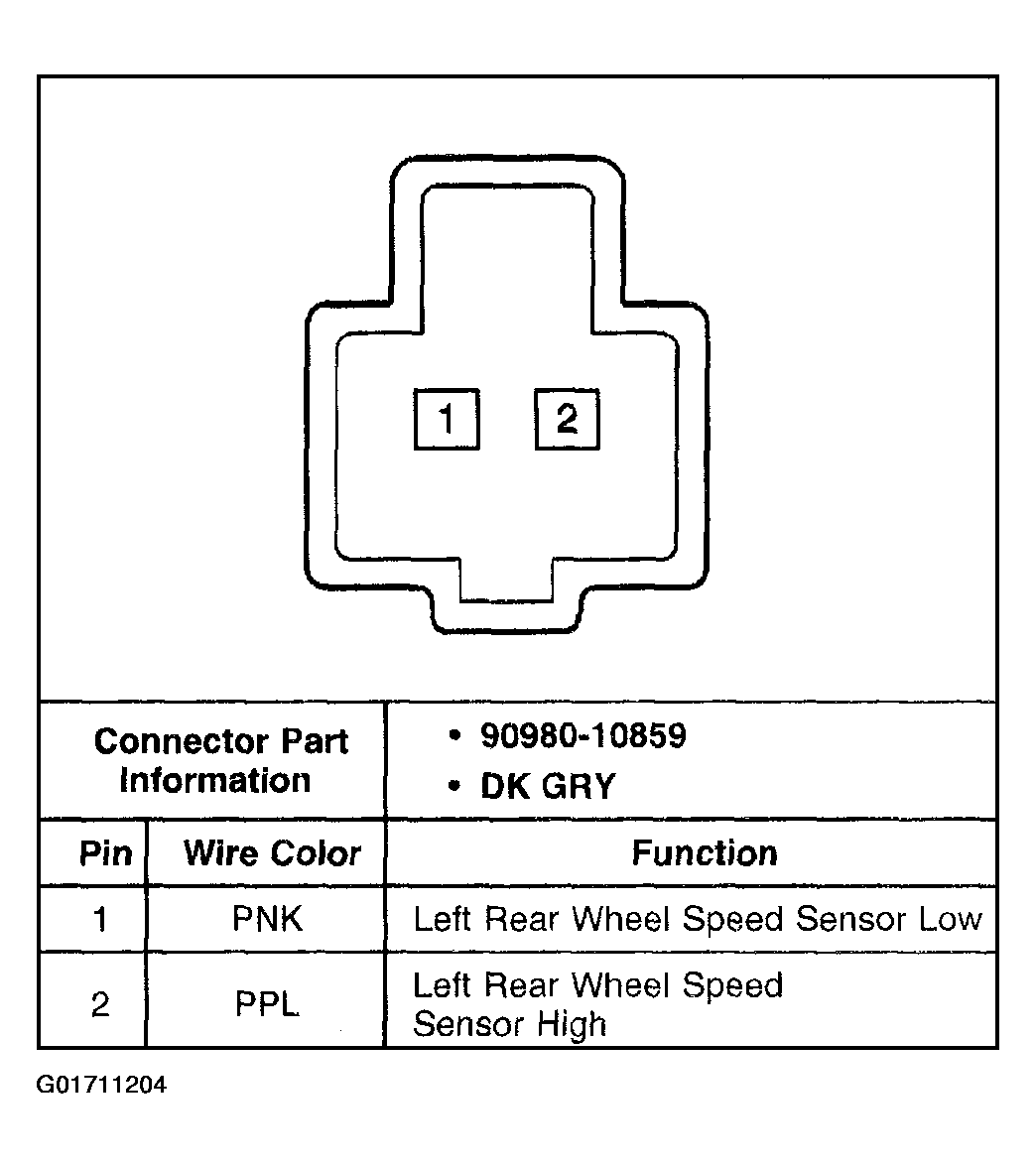

Fig 3: Left Rear Wheel Speed Sensor
Courtesy of GENERAL MOTORS CORP.

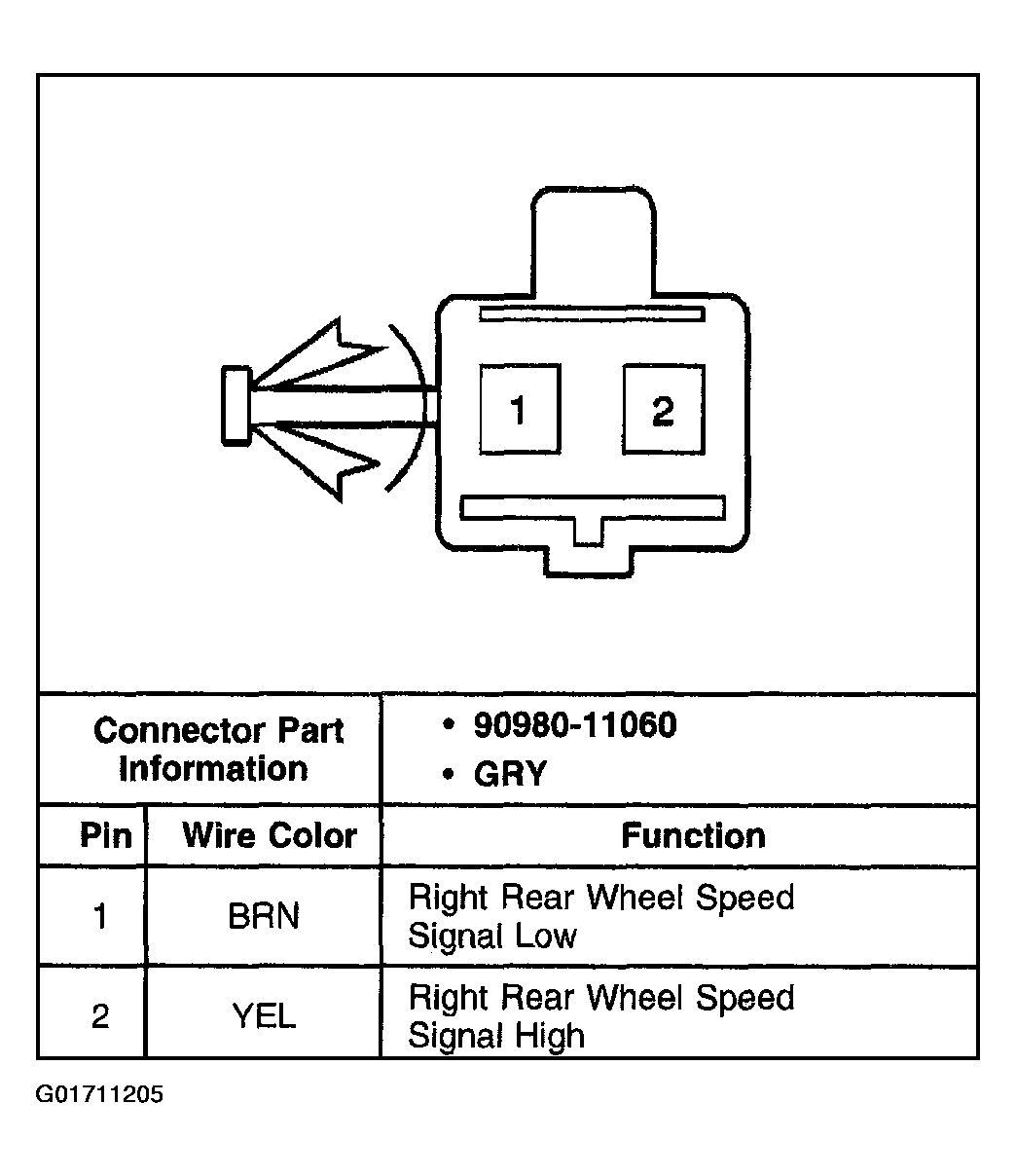

Fig 4: Right Rear Wheel Speed Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 5: Right Front Wheel Speed Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
