Blower Speed Switch Connector End View
Blower Speed Switch Connector End View

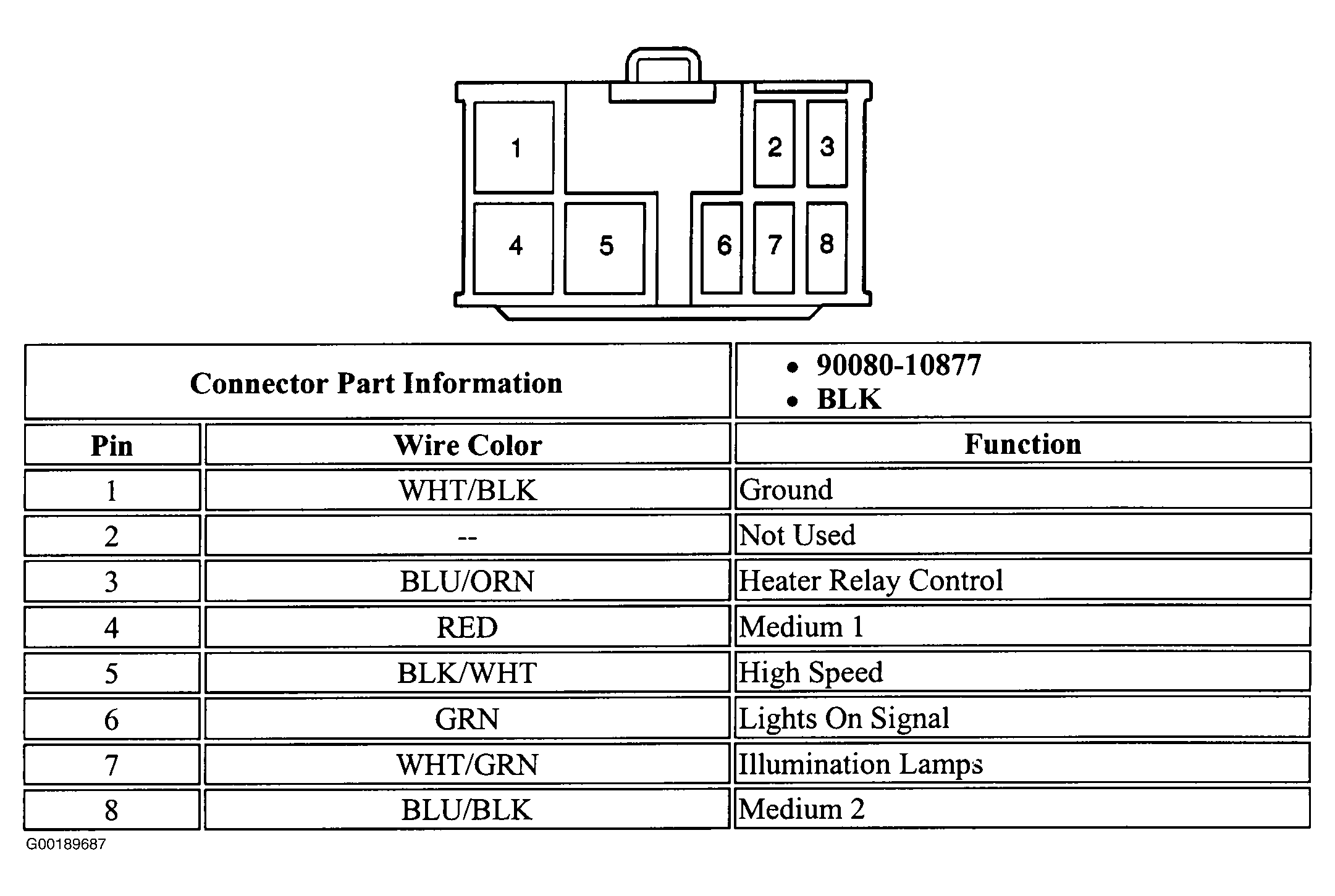

Fig 1: Blower Speed Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
