Instrument Cluster Assembly Connector End View C2

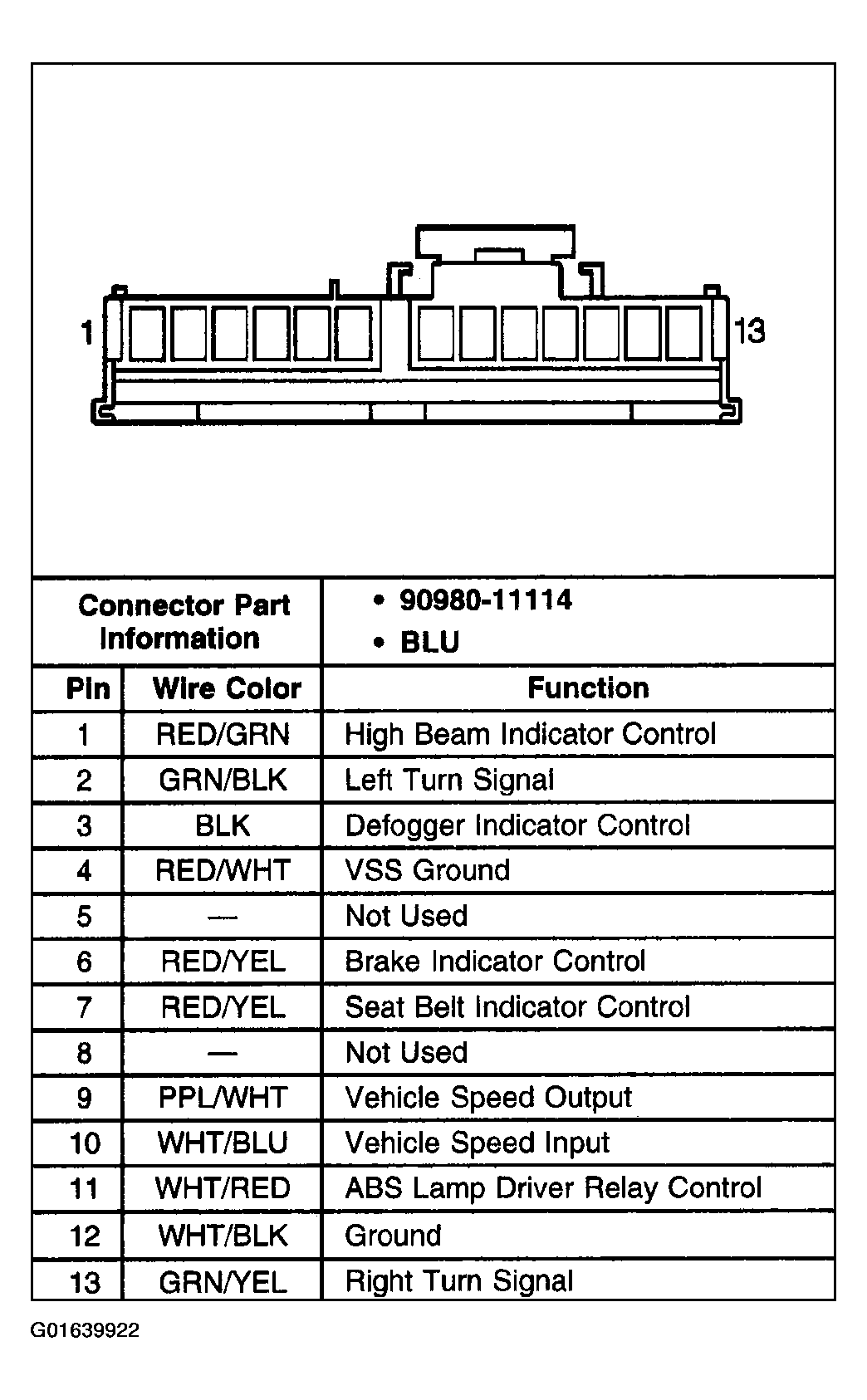

Fig 1: Instrument Cluster Assembly C2
G01639922Courtesy of GENERAL MOTORS CORP.
