Main Fan Motor Connector End View

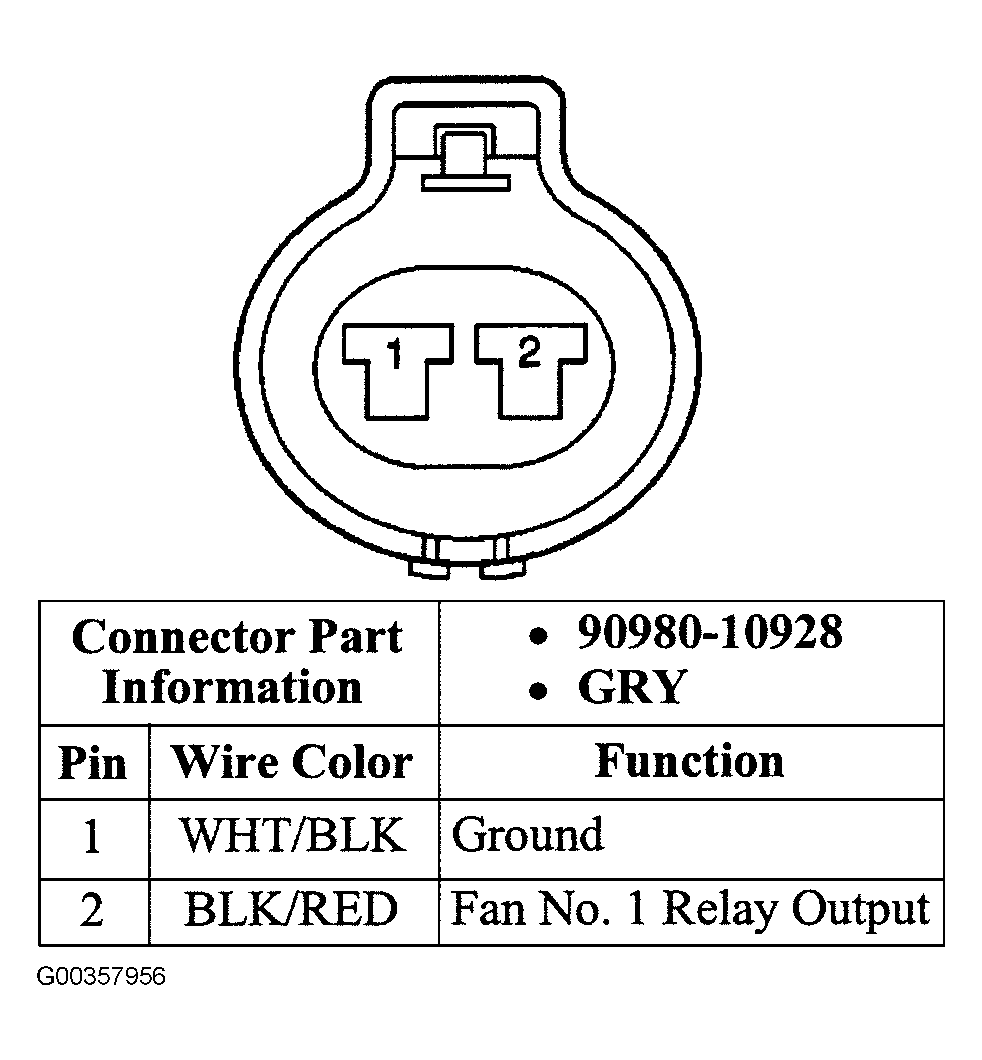

Fig 1: Main Fan Motor
G00357956Courtesy of GENERAL MOTORS CORP.


Fig 1: Main Fan Motor
G01711666Courtesy of GENERAL MOTORS CORP.
