Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
Seat Belt System
›
Component Locator
›
Seat Belt Component Views
Seat Belt Component Views

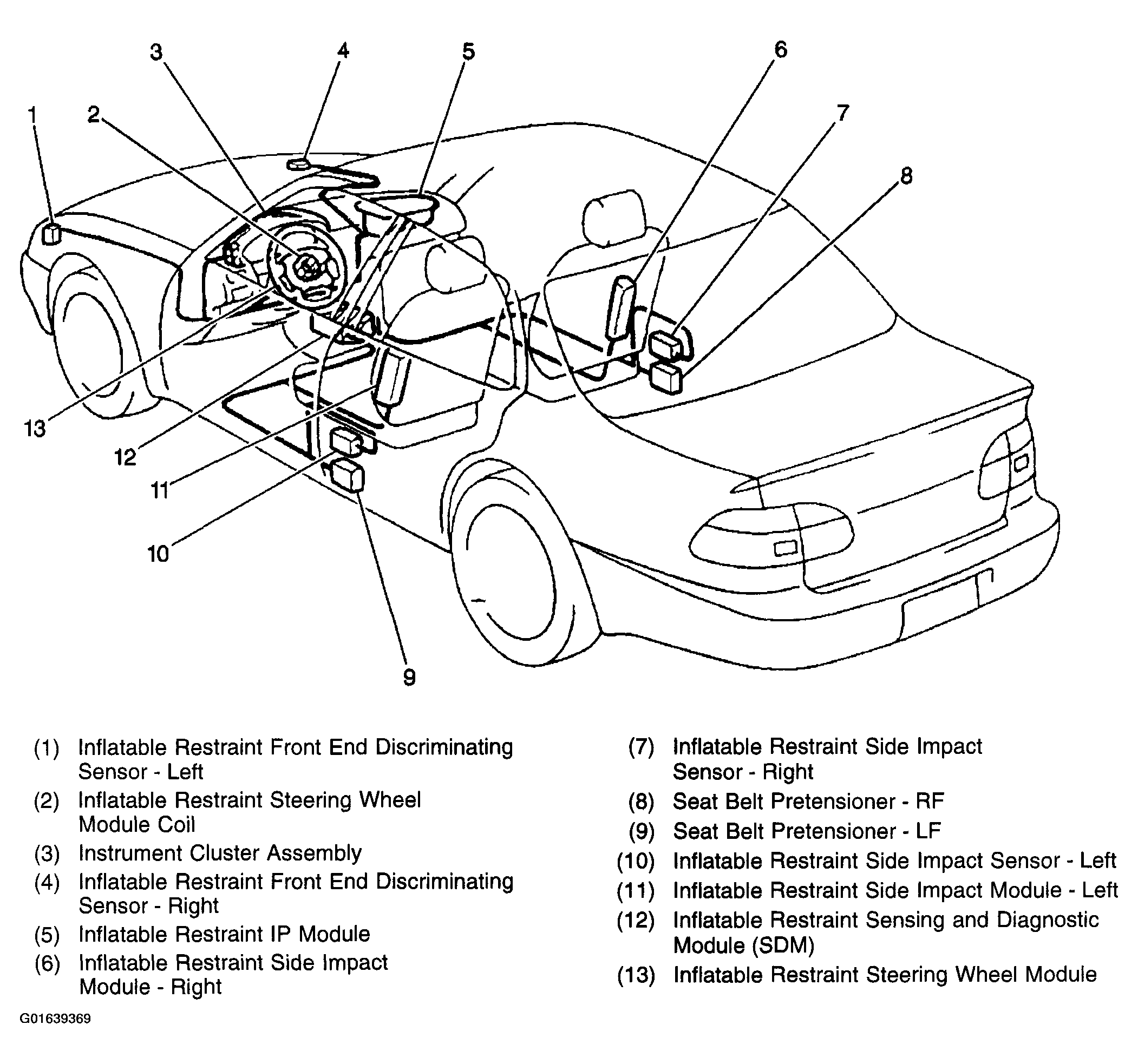

Fig 1: Seat Belt Component Views
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
