Power Steering Gear Disassembled View
Power Steering Gear Disassembled View

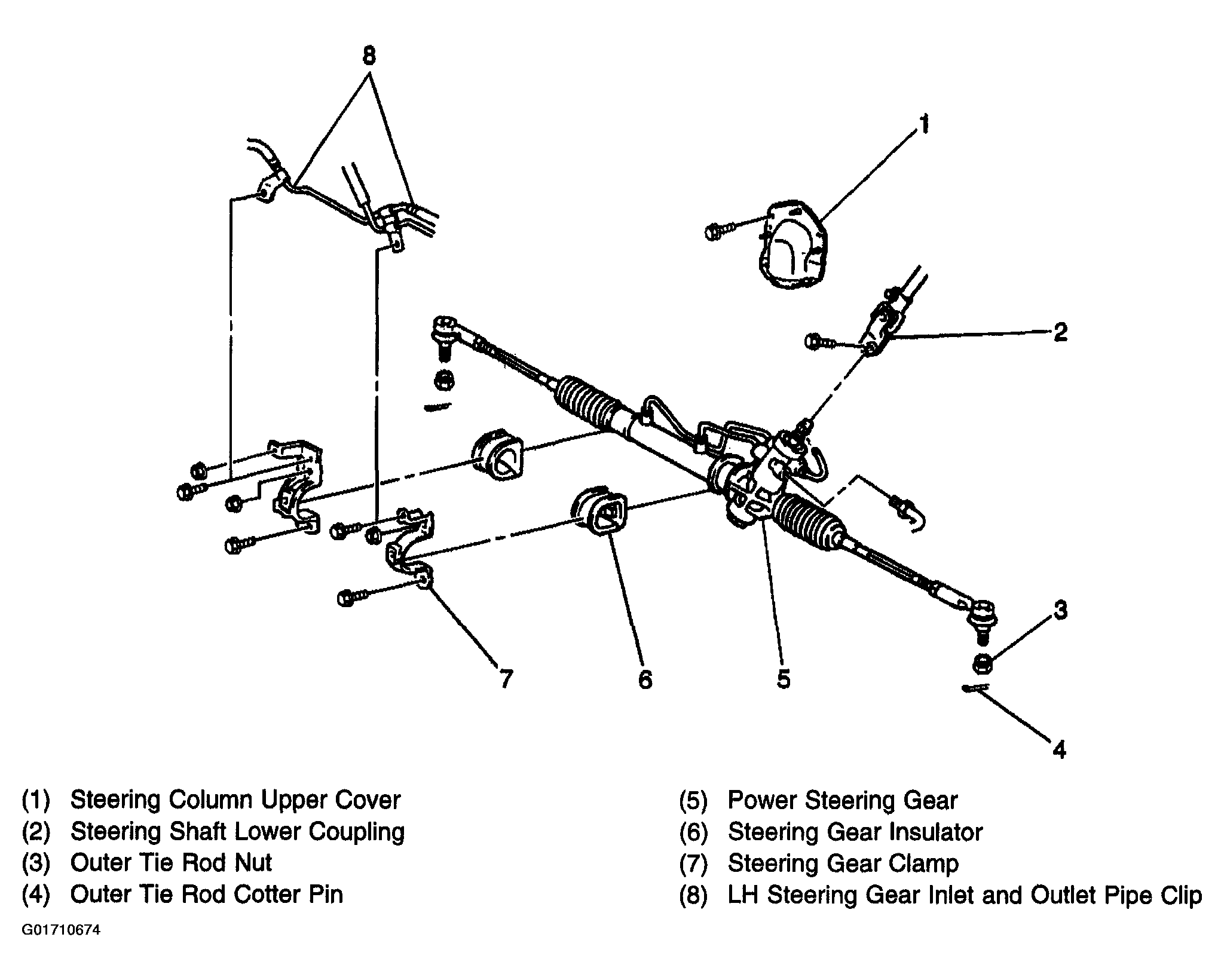

Fig 1: Power Steering Gear Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
