Installation Procedure

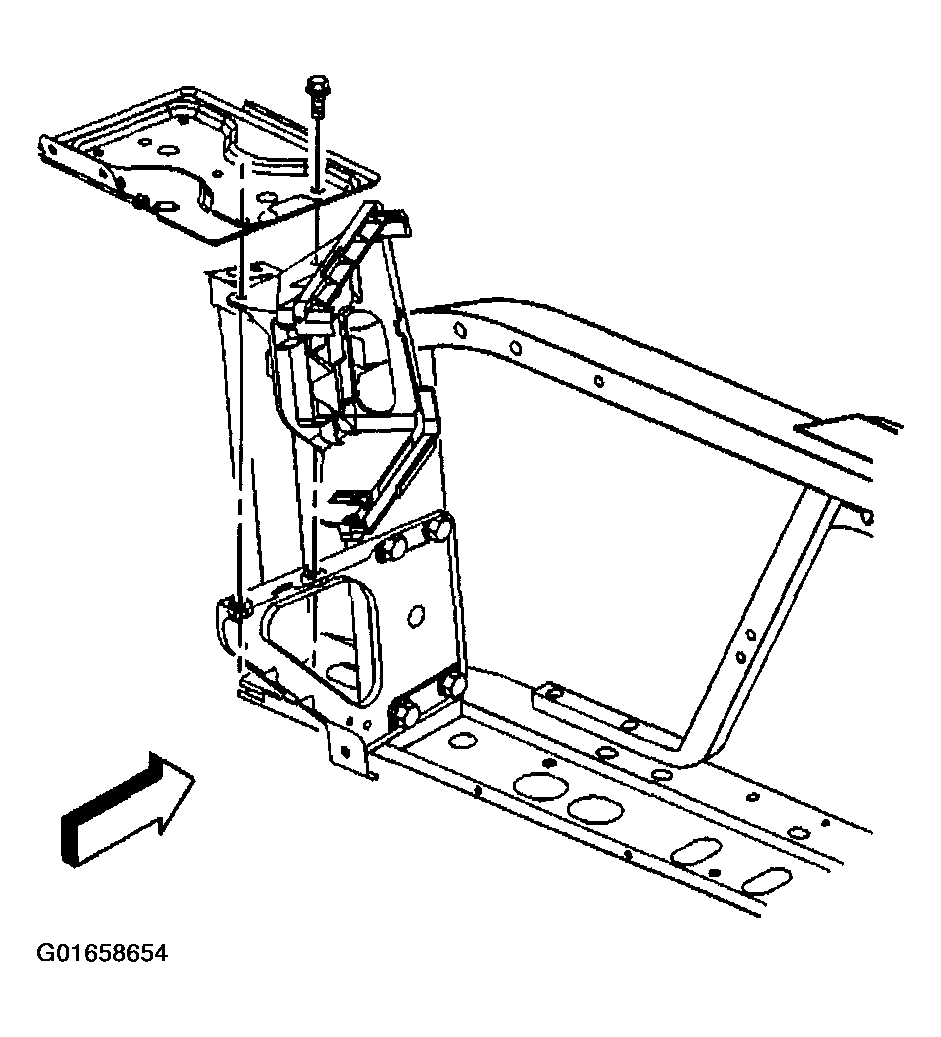

- Install the battery tray.NOTE: Refer to Fastener Notices in CAUTIONS & NOTICES .
- Install the battery tray bolts to the following:
- Fender inner panel
- Battery tray reinforcement
- Battery tray support
Tighten
Tighten the battery tray bolts to 9 N.m (80 lb in).
- Install the battery. Refer to Battery Replacement .
