Alternative Fuels Engine Control Module Connector C001 Terminals
Alternative Fuels Engine Control Module Connector C001 Terminals

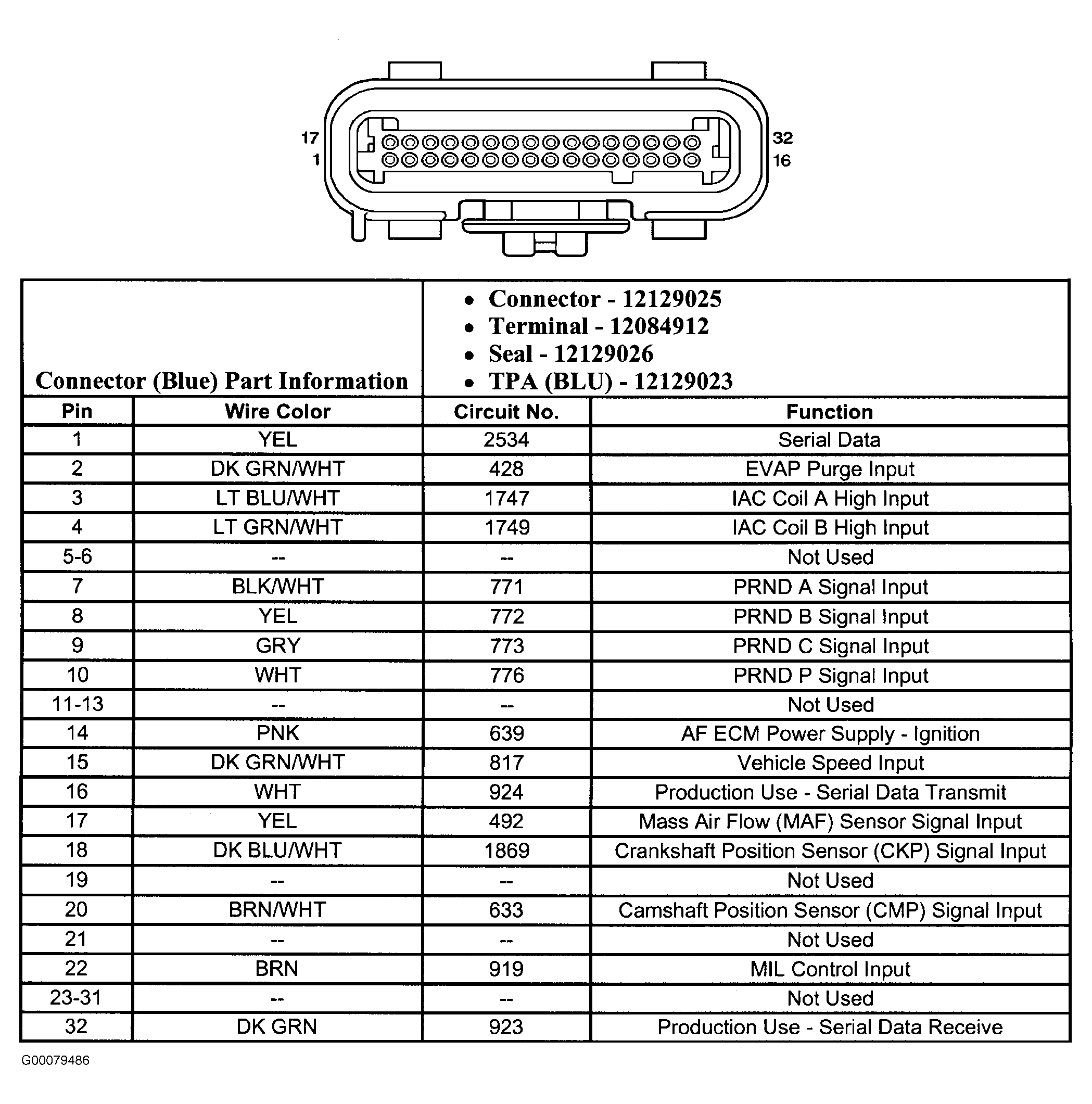

Fig 1: Alternative Fuels Engine Control Module Connector C001 Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
