ECT Sensor Connector End View
ECT Sensor Connector End View

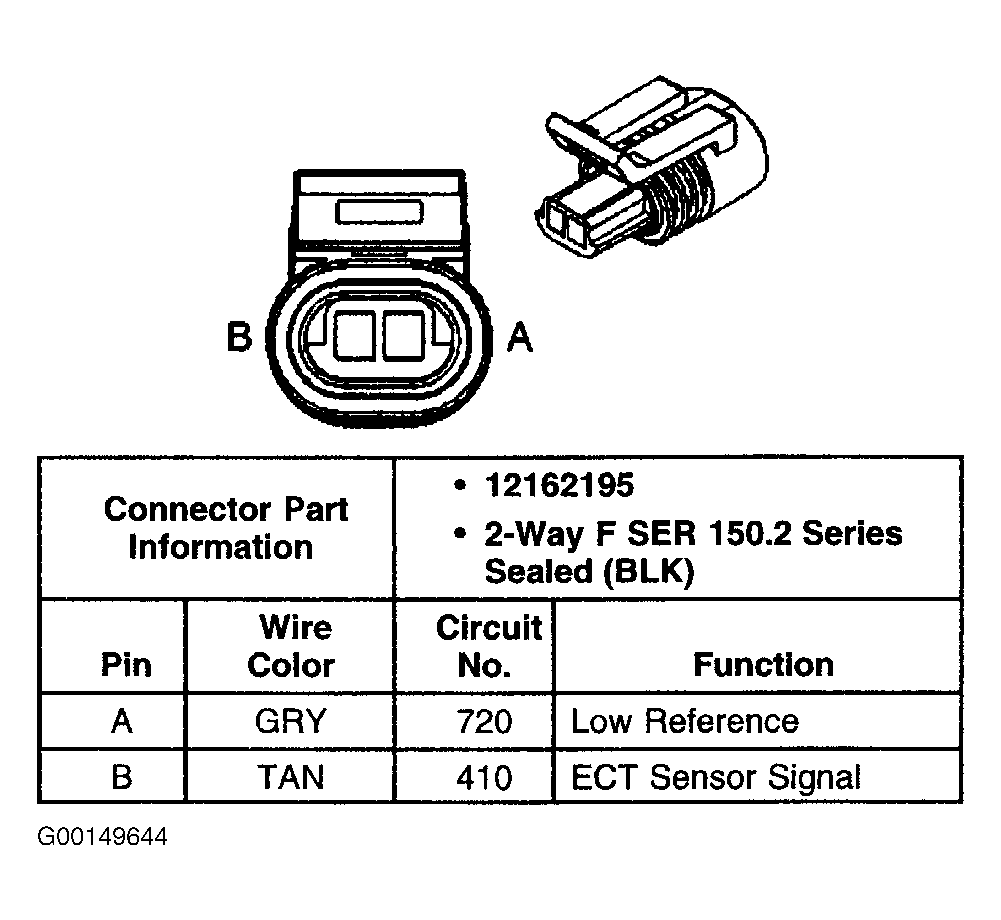

Fig 1: ECT Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 1: ECT Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 1: ECT Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 1: ECT Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
