HVAC Control Module Connector End View (2 Of 2)

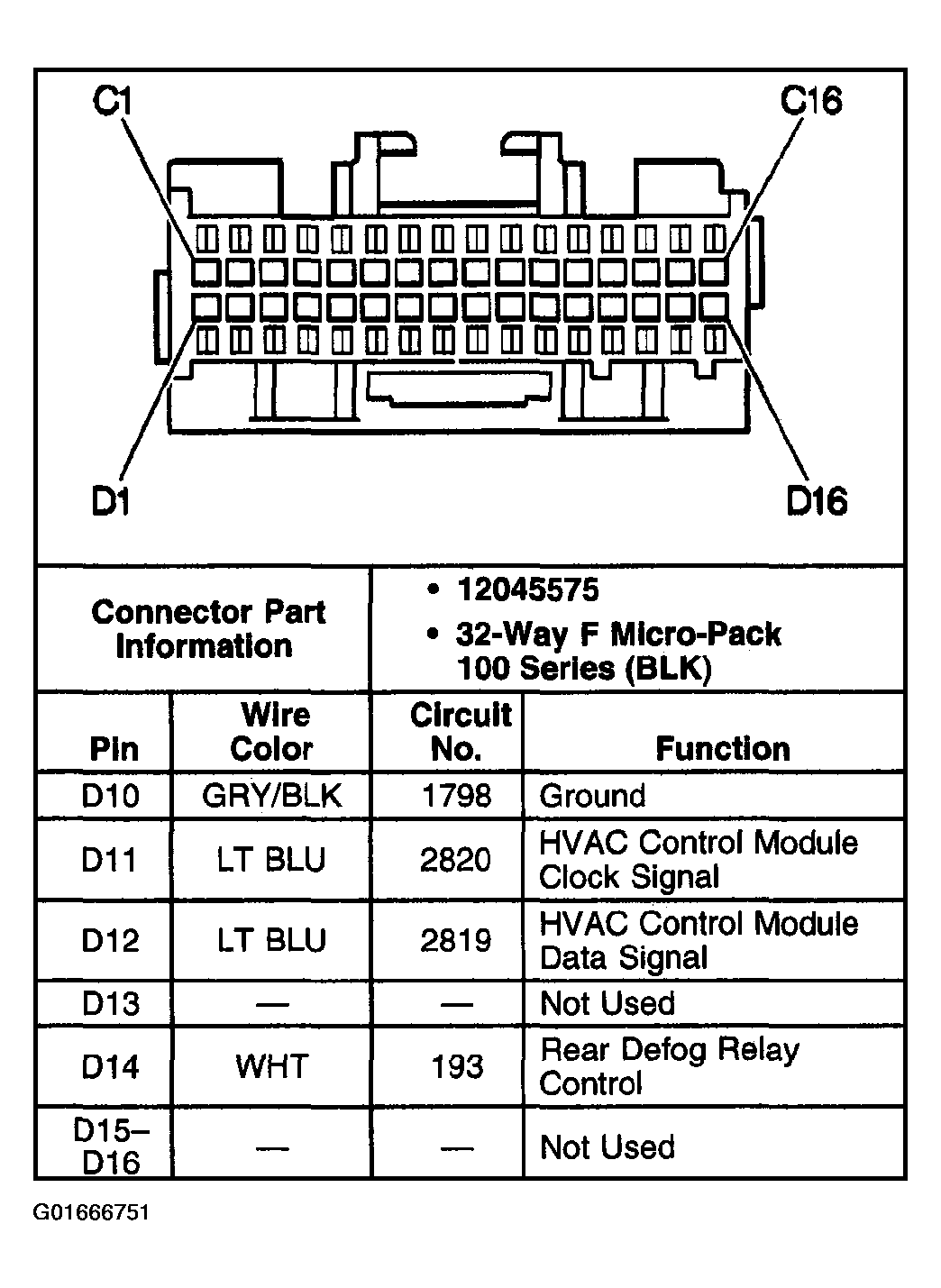

Fig 1: HVAC Control Module Connector End View (2 Of 2)
G01666751Courtesy of GENERAL MOTORS CORP.
