Output Speed Sensor Connector End View

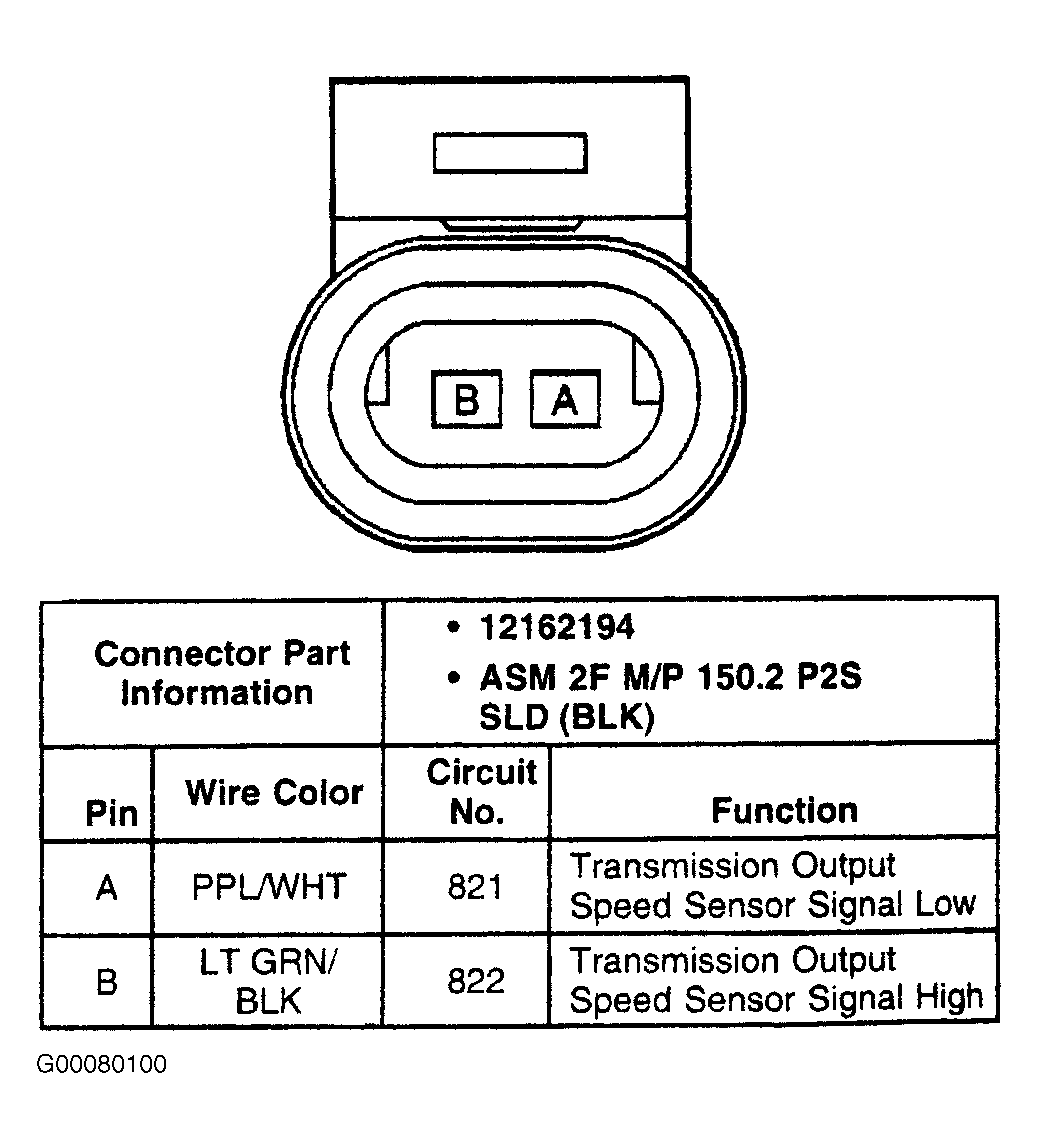

Fig 1: Output Speed Sensor Connector End View
G00080100Courtesy of GENERAL MOTORS CORP.
