Rear Wheel Steering Control Module - C3 Connector End View
Rear Wheel Steering Control Module - C3 Connector End View

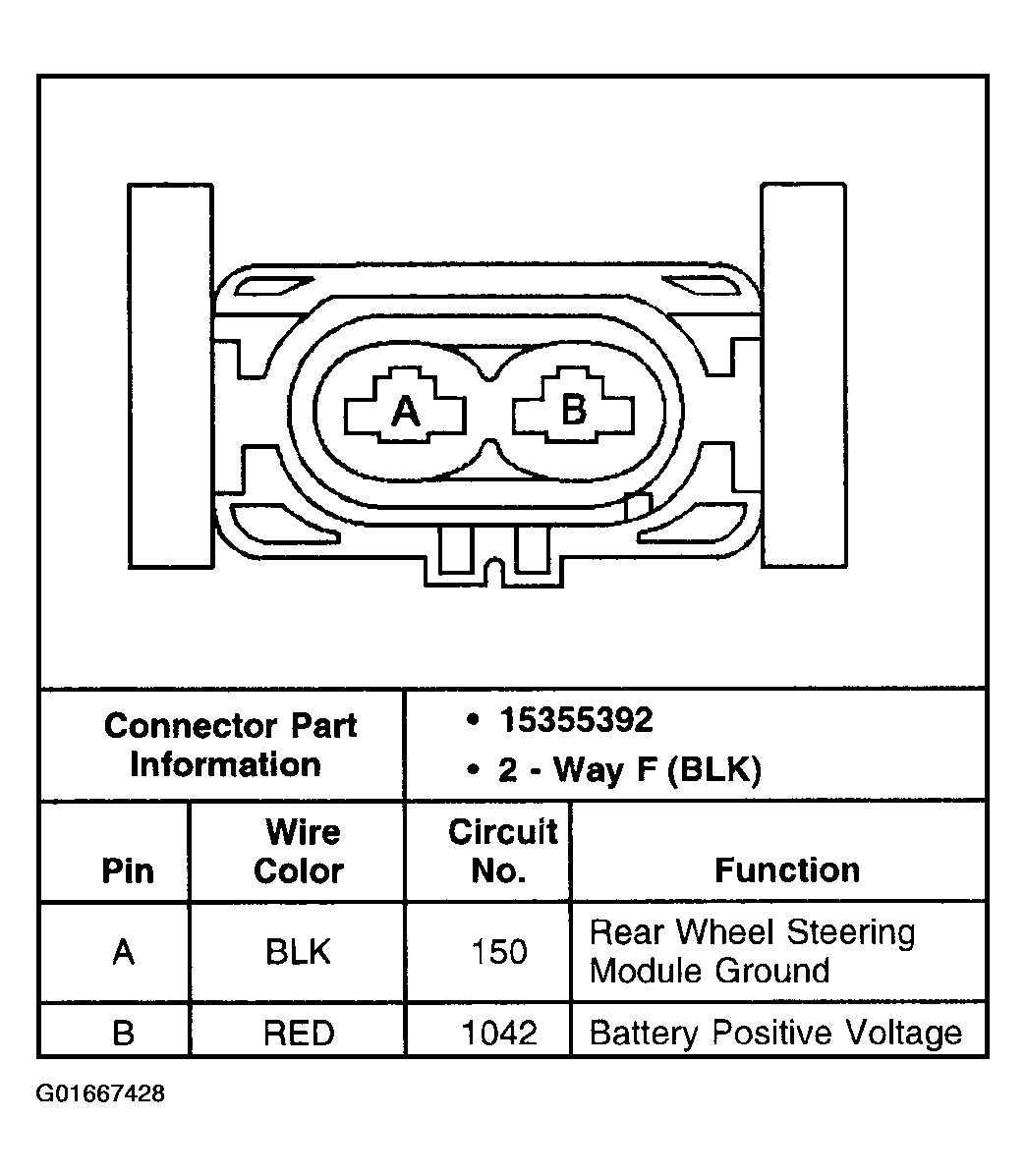

Fig 1: Rear Wheel Steering Control Module - C3 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
