Transfer Case - C2 (Encoder Motor) Connector End View
Transfer Case - C2 (Encoder Motor) Connector End View

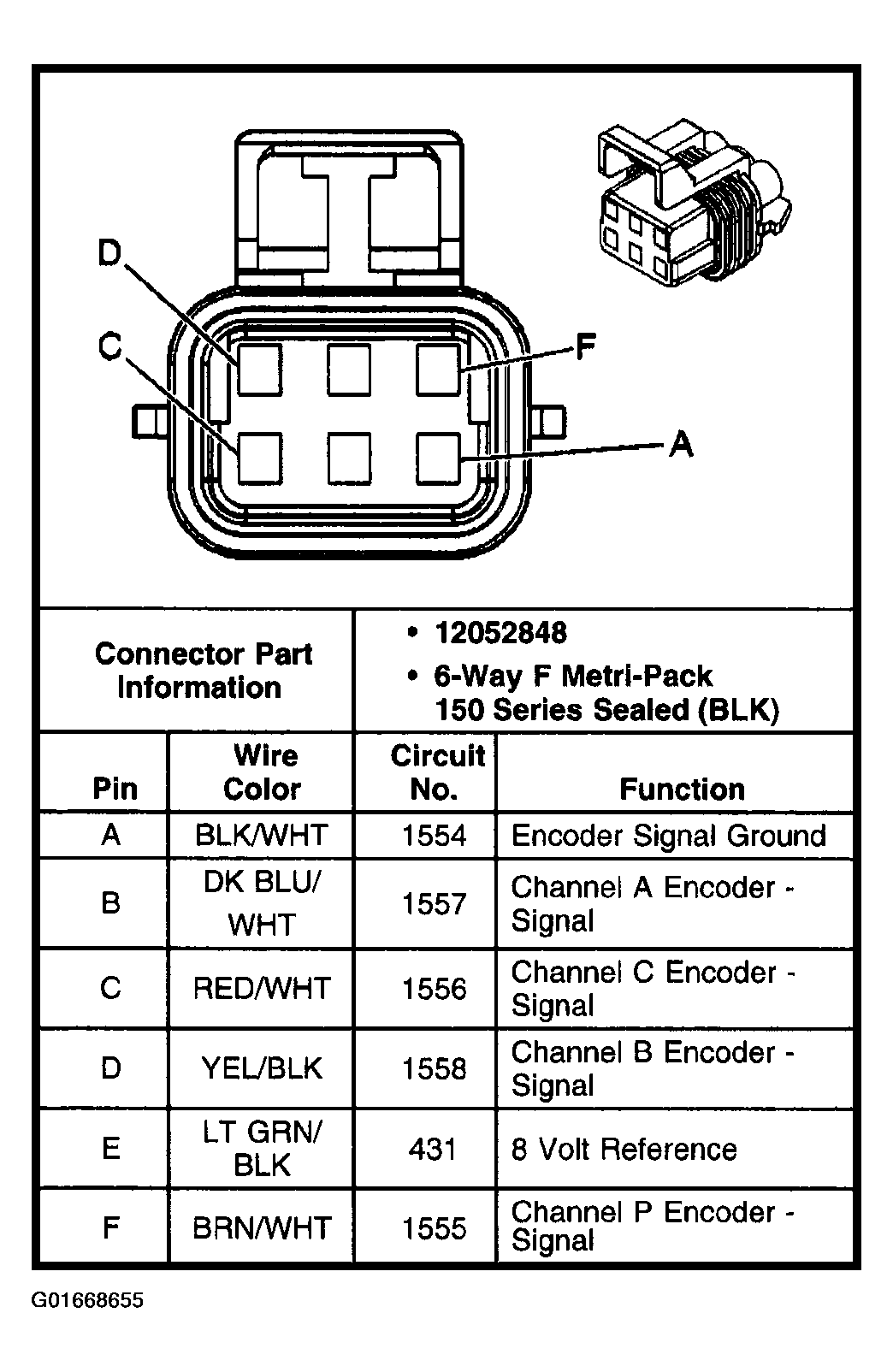

Fig 1: Transfer Case - C2 (Encoder Motor) Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
