Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the hazard warning switch electrical connector (2).
  2. Install the hazard warning switch (1) to the instrument panel. Ensure that the retaining tabs are fully engaged.
  3. Install the IP cluster trim plate. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .

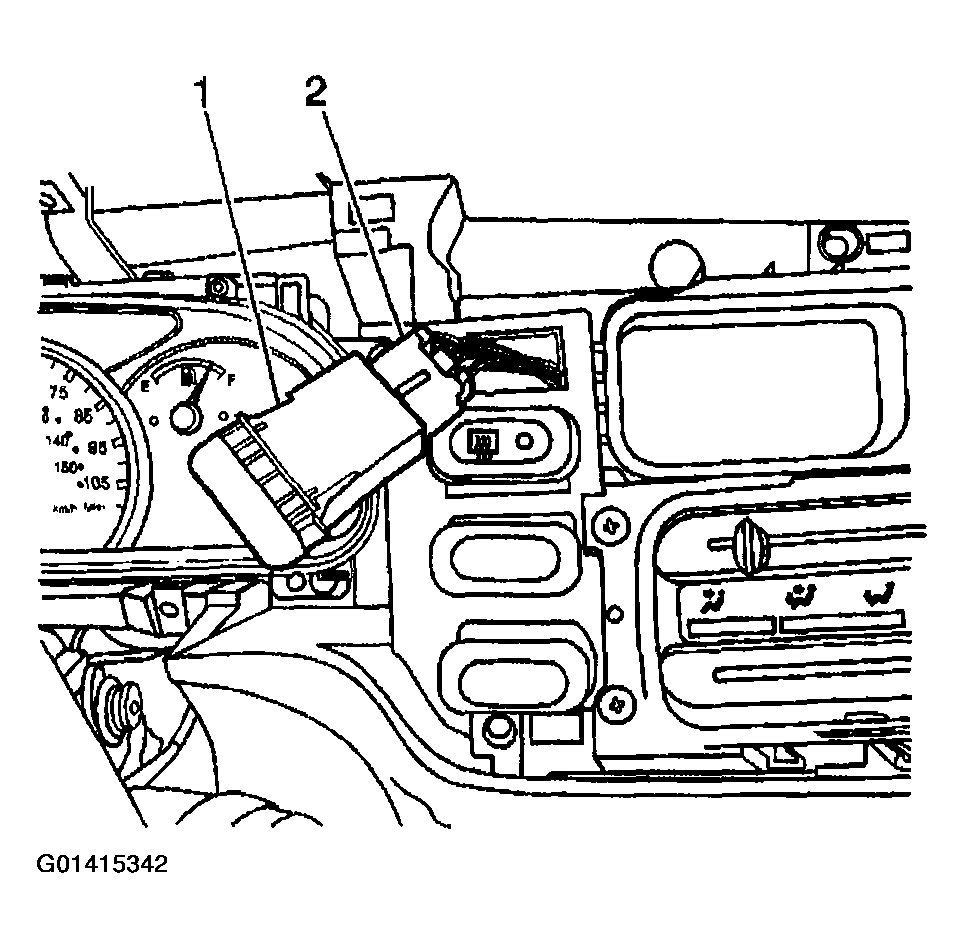

    Fig 1: Connecting Hazard Warning Switch Electrical Connector
    G01415342Courtesy of GENERAL MOTORS CORP.
