Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cruise control module cover (1).

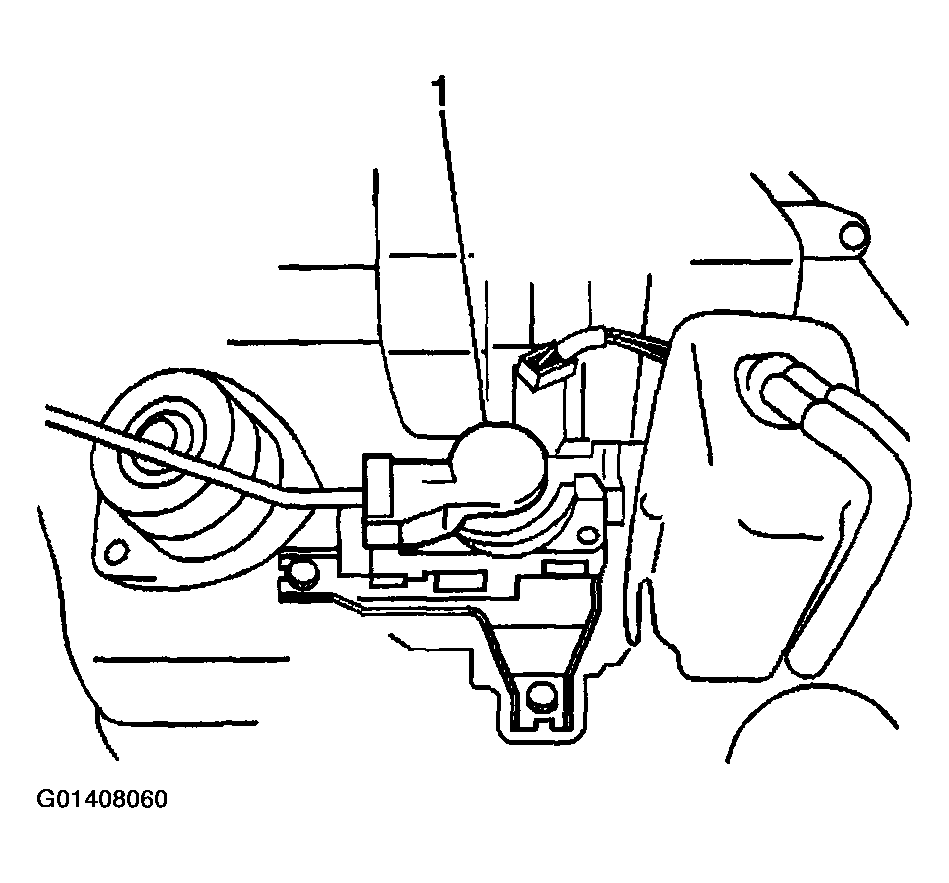

    Fig 1: Cruise Control Module Cover
    G01408060Courtesy of GENERAL MOTORS CORP.
  2. Loosen the cruise control servo cable locknut (5).
  3. Remove the cruise control servo cable (3) from the cruise control servo assembly (1).

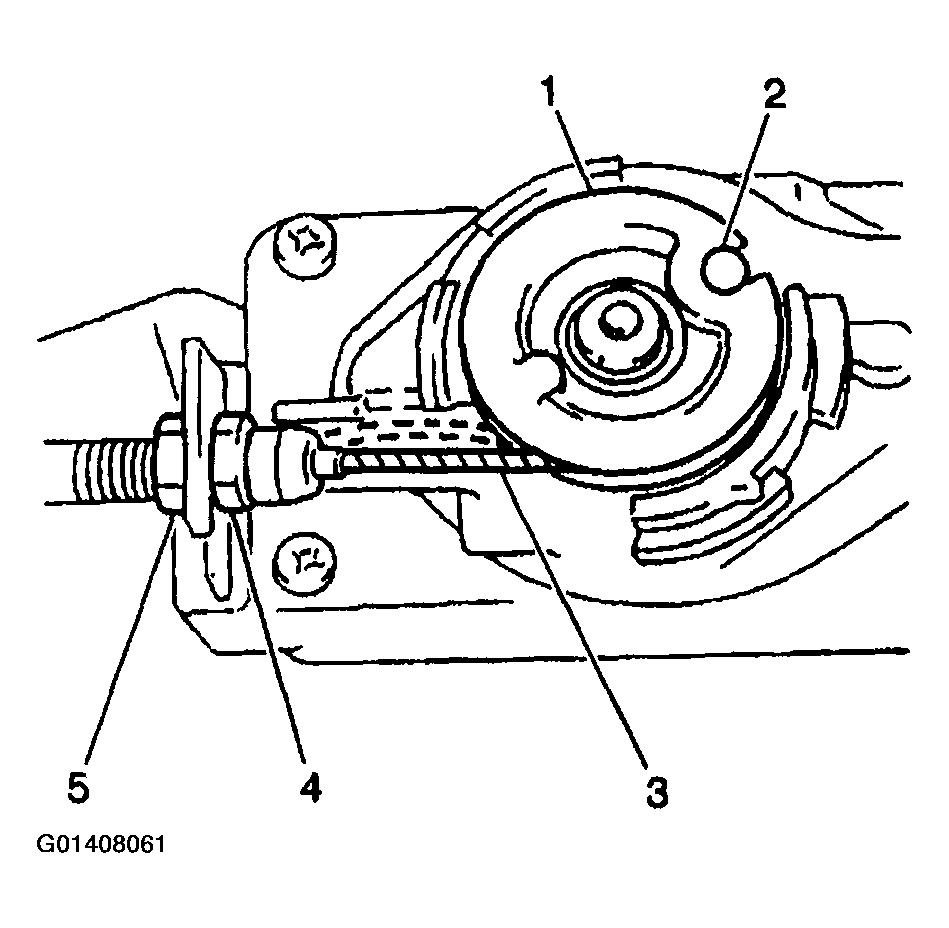

    Fig 2: Removing Cruise Control Servo Cable From Cruise Control Servo Assembly
    G01408061Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the cruise control servo assembly electrical connector.
  5. Remove the 3 bolts (2) and the cruise control servo assembly (6) from the vehicle.

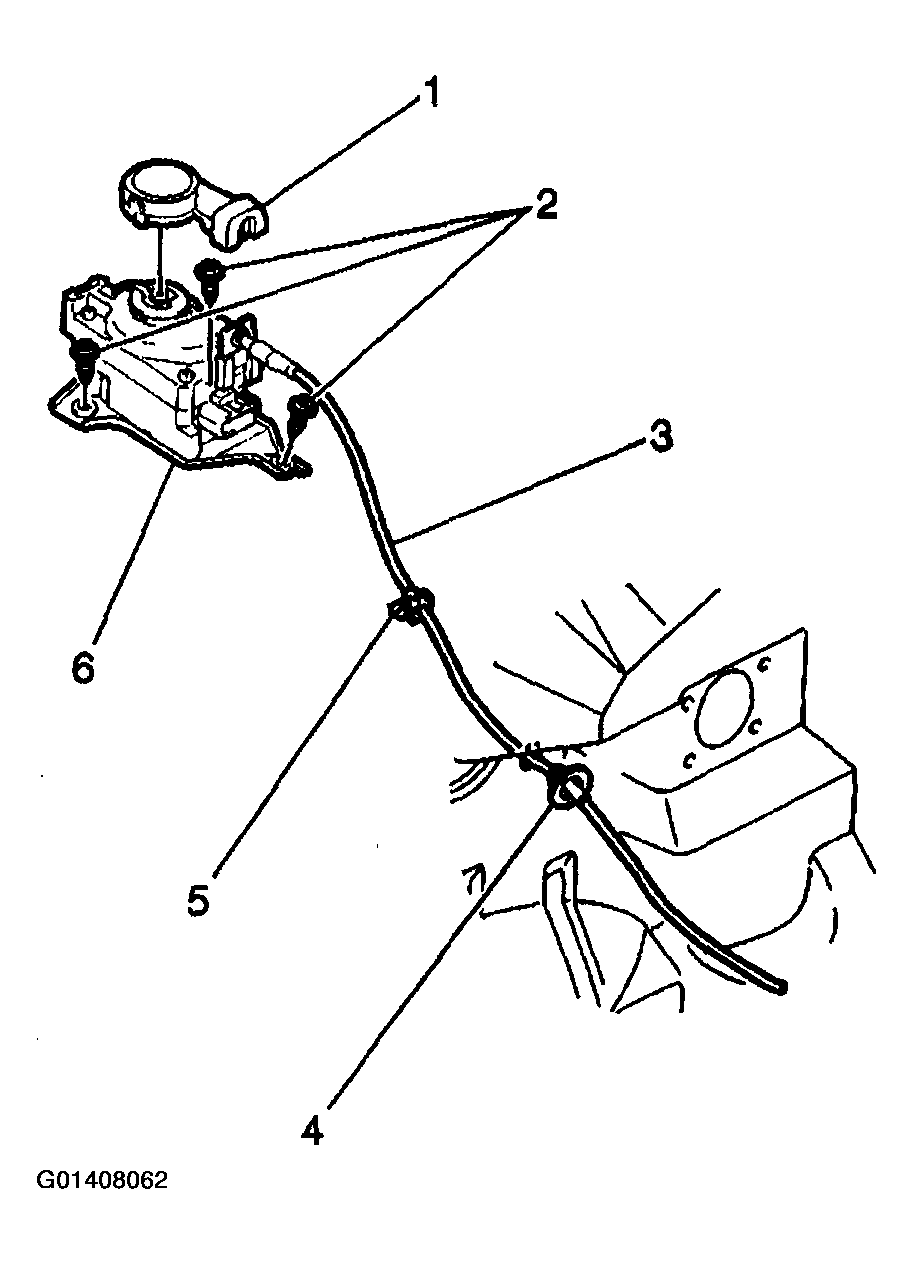

    Fig 3: Removing Cruise Control Servo Assembly From Vehicle
    G01408062Courtesy of GENERAL MOTORS CORP.
