Component Locator
›
ABS Component Views
ABS Component Views

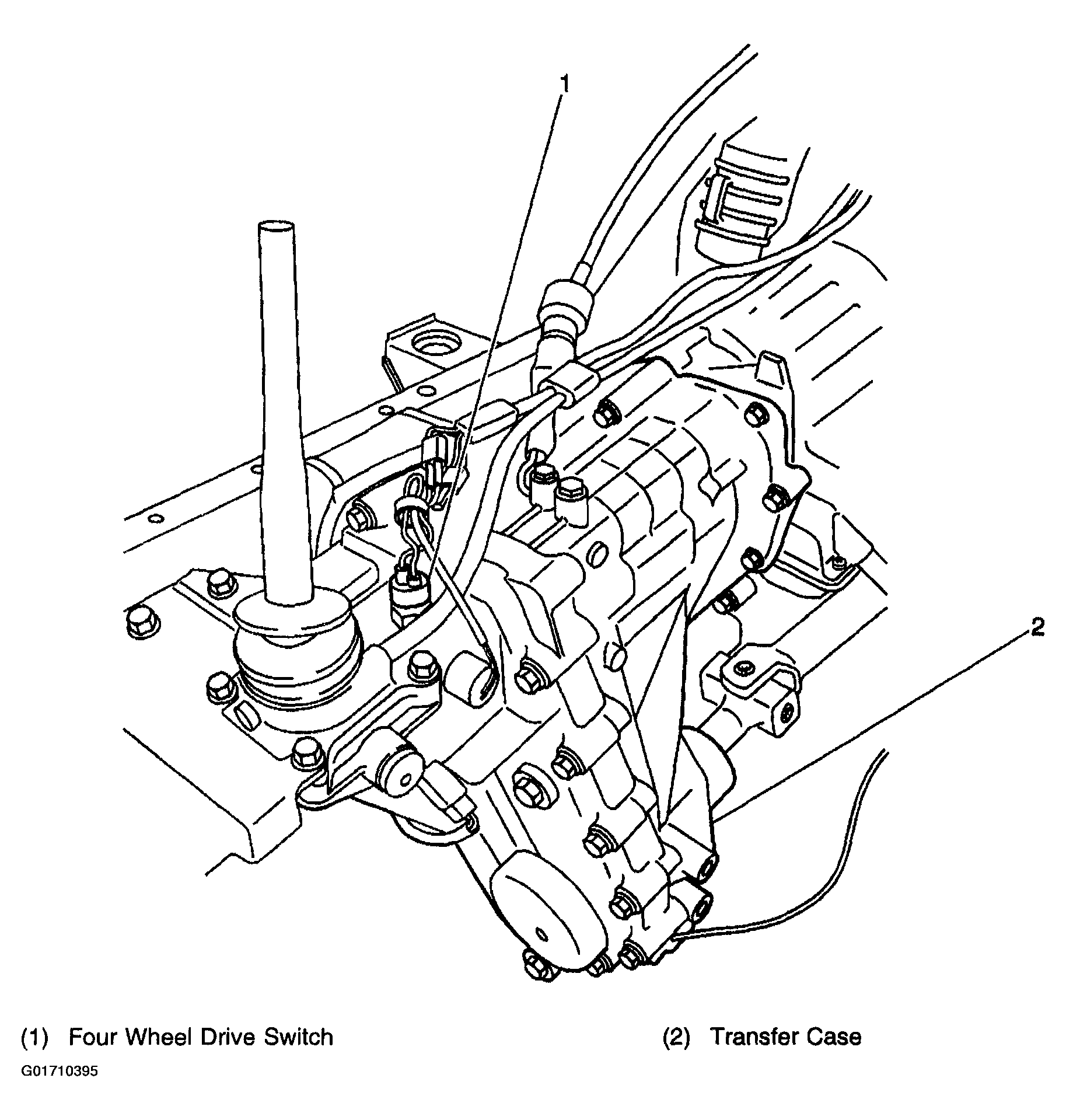

Fig 1: Locating 4WD Switch
Courtesy of GENERAL MOTORS CORP.

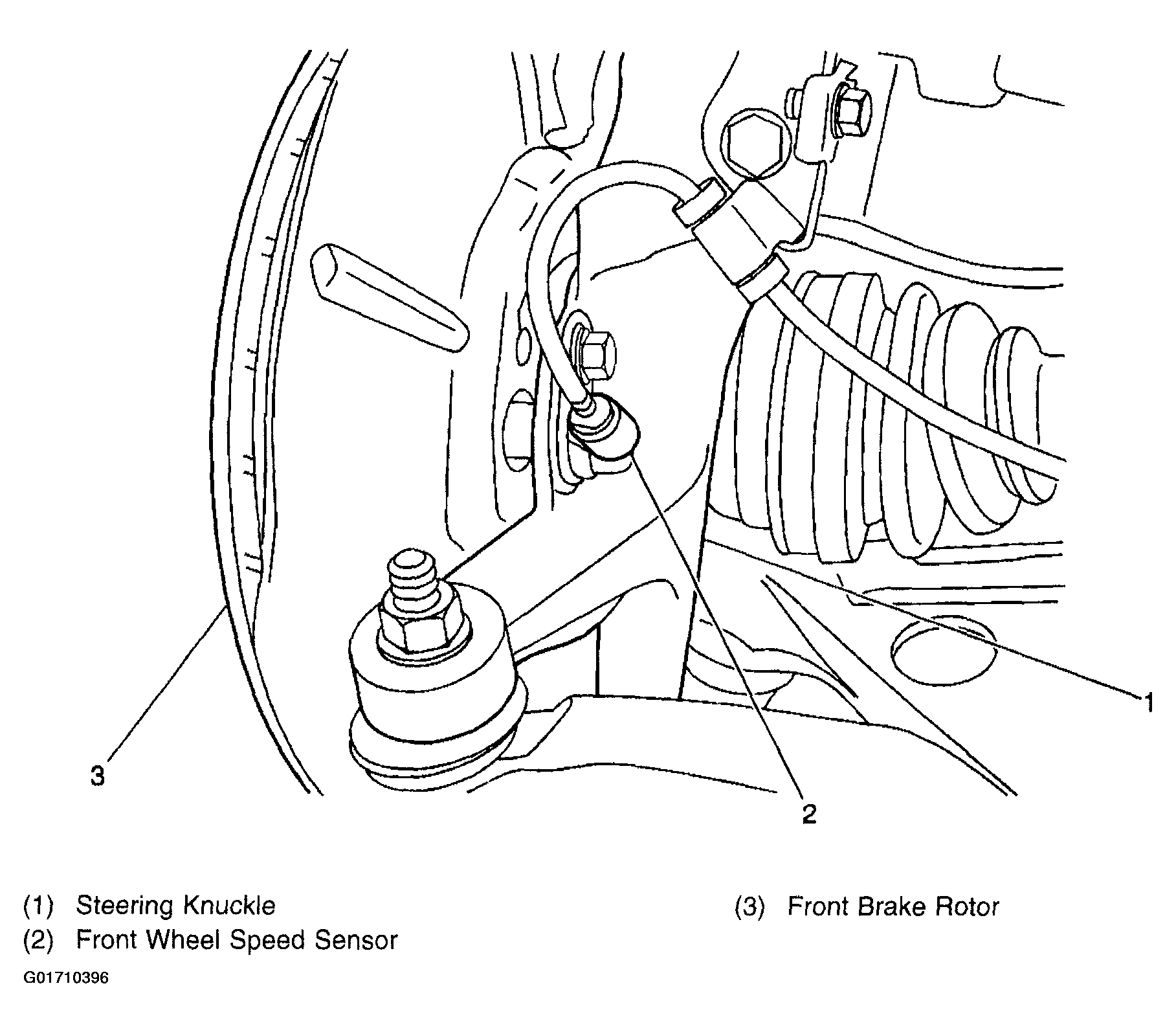

Fig 2: Locating Front Wheel Speed Sensor
Courtesy of GENERAL MOTORS CORP.

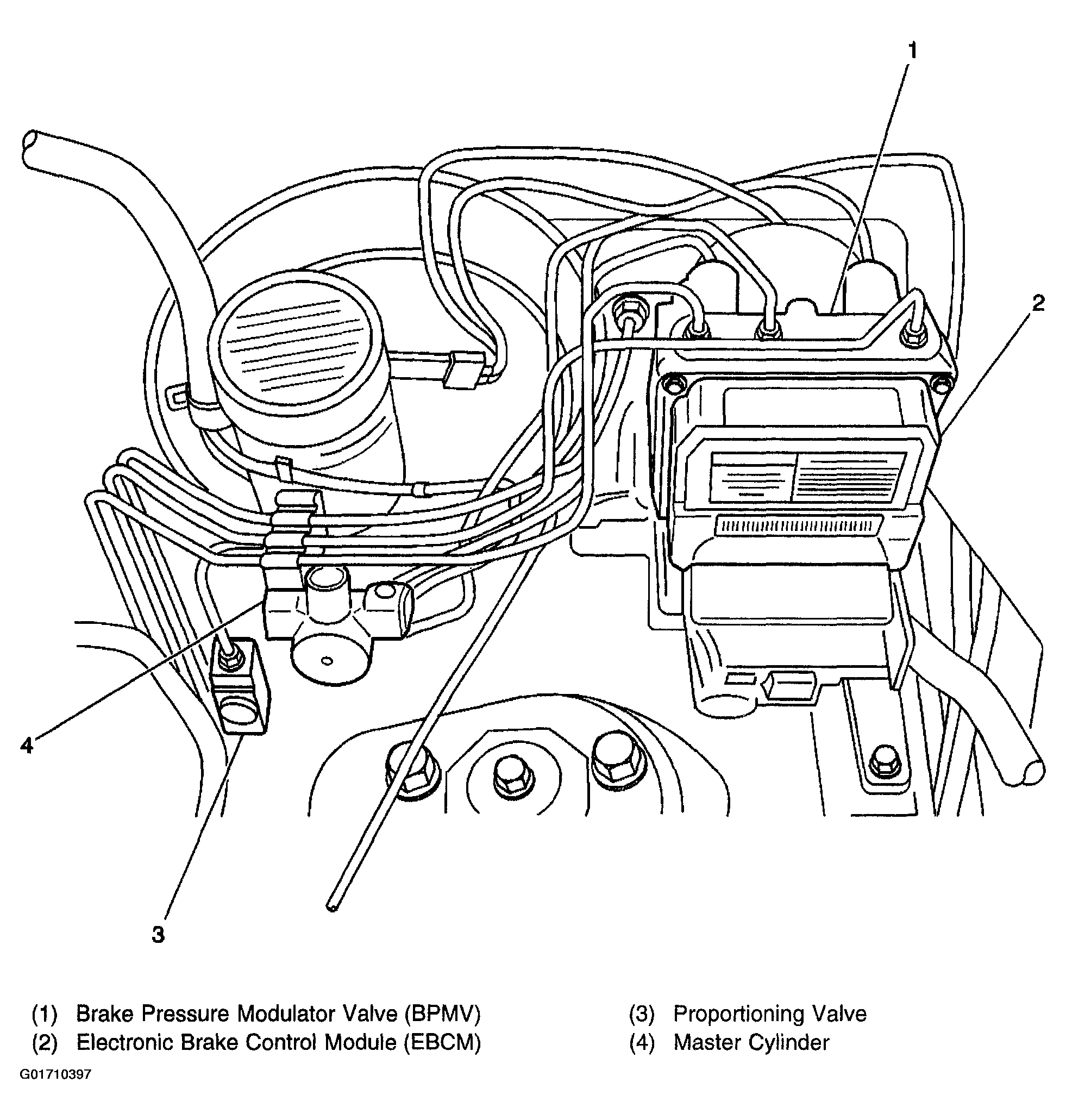

Fig 3: Locating EBCM/BPMV Assembly
Courtesy of GENERAL MOTORS CORP.

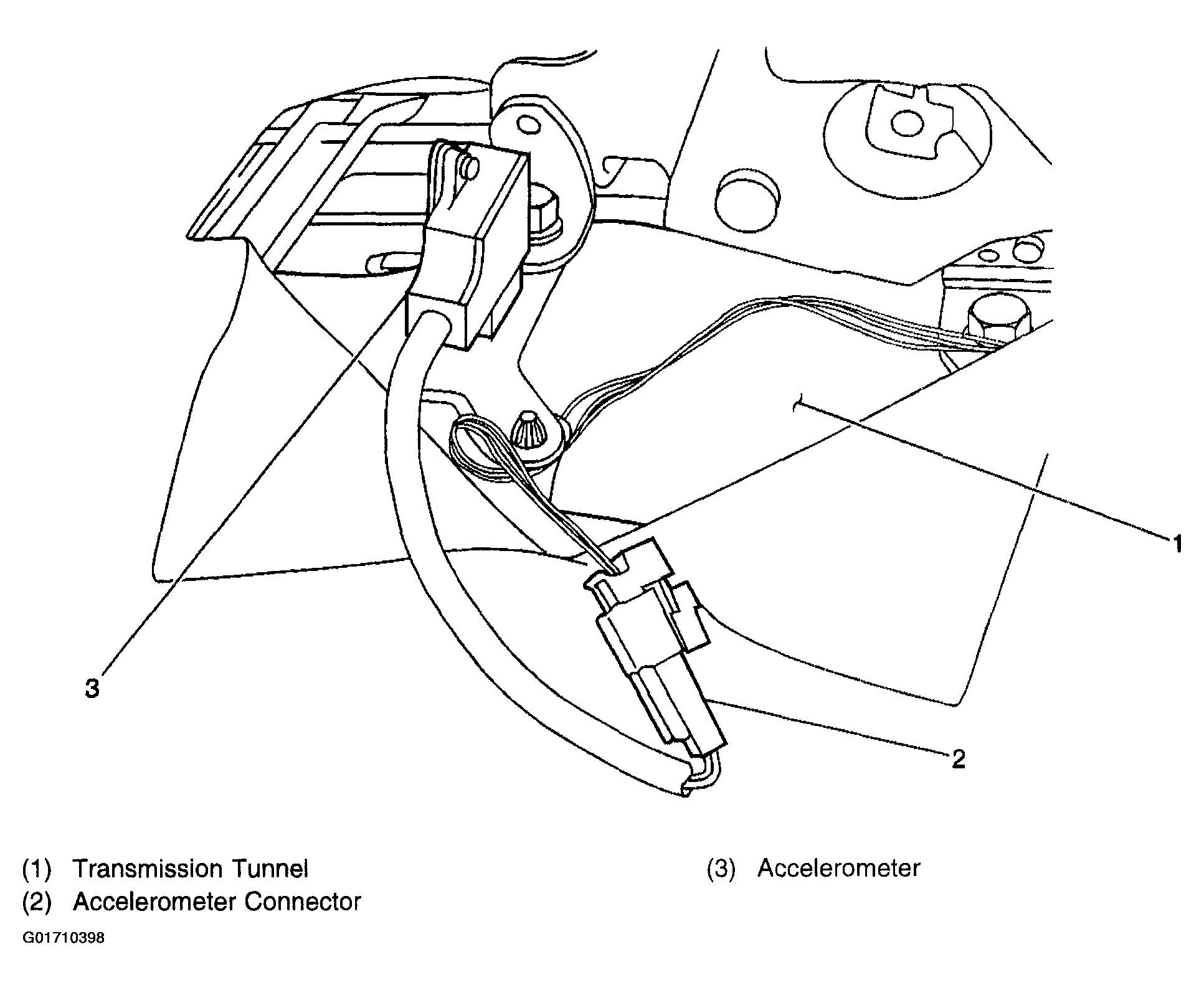

Fig 4: Locating Accelerometer
Courtesy of GENERAL MOTORS CORP.

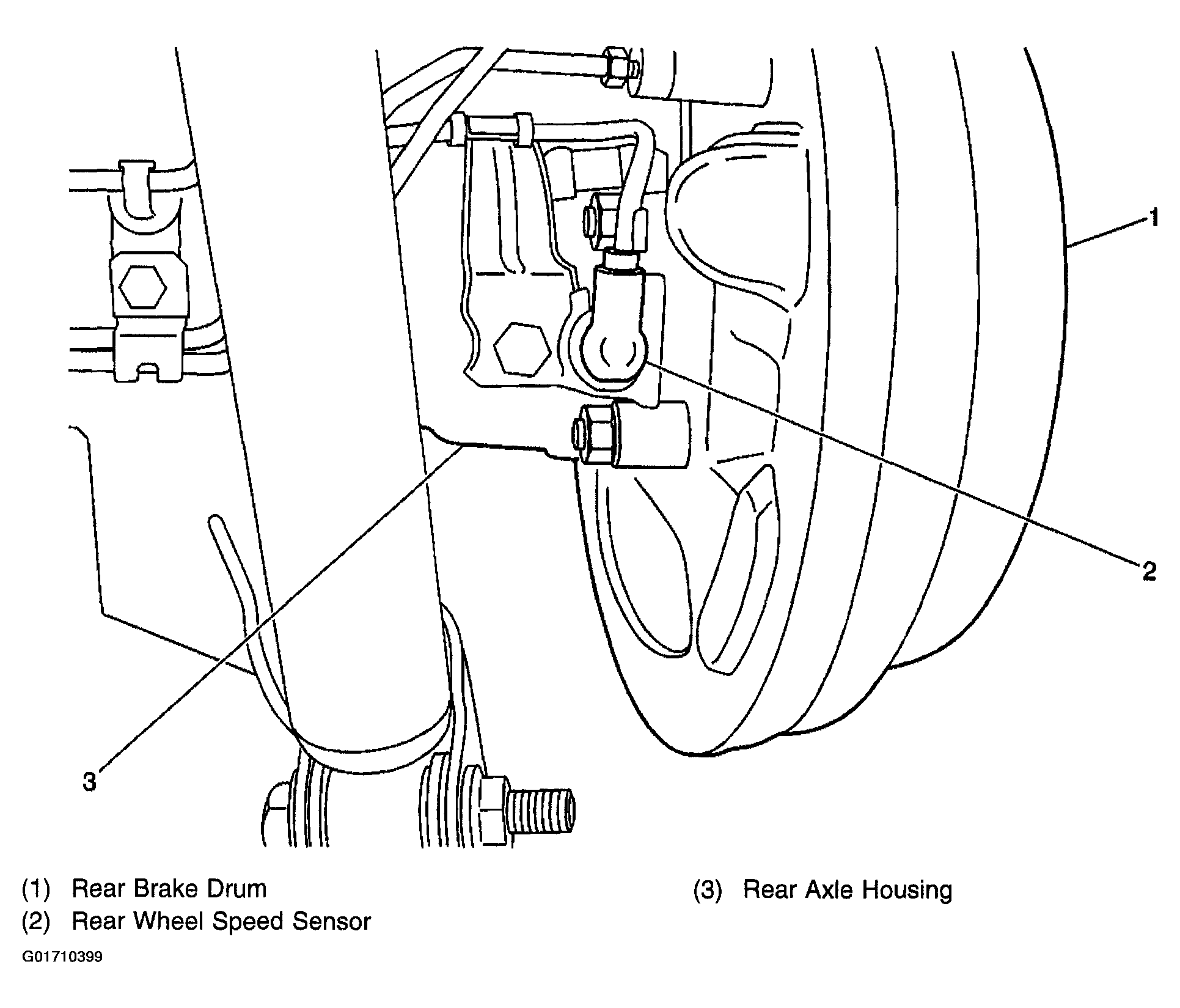

Fig 5: Locating Rear Wheel Speed Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
