Installation Procedure

Clean the EBCM gasket and the BPMV surface with alcohol using a clean rag.
Install the EBCM (2) to the BPMV (4).
NOTE: Refer to FASTENER NOTICE .
Install the four screws (1) that attaches the EBCM (2) to BPMV (4).
Tighten

Tighten the four screws to 5 N.m (44 lb in).

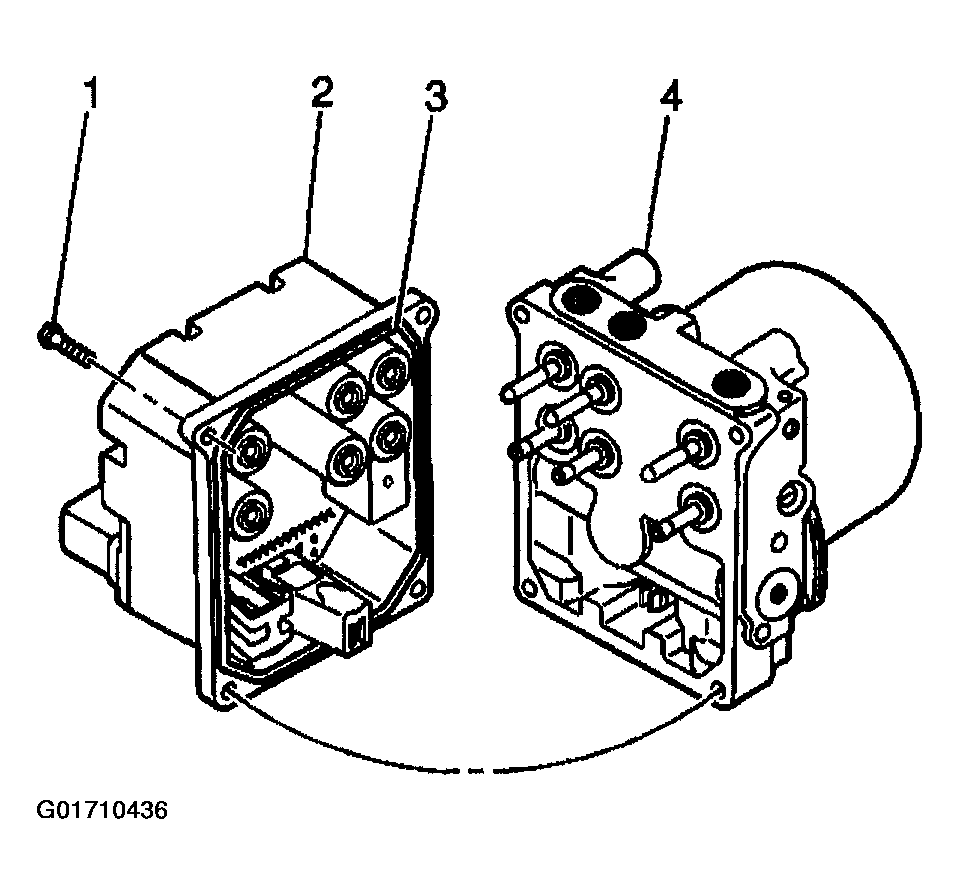

Fig 1: Attaching Electronic Brake Control Module To Brake Pressure Modulator Valve
Courtesy of GENERAL MOTORS CORP.
Connect the EBCM harness connector (2).
Push down lock tab and then move sliding connector cover back in the home position to lock.

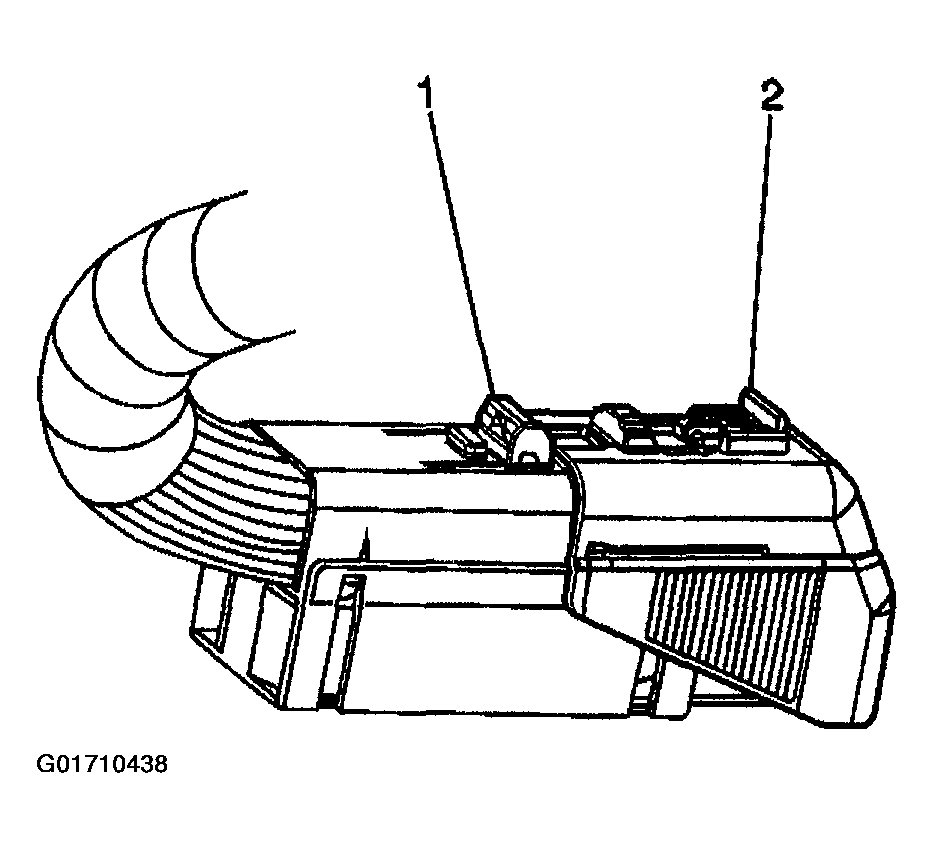

Fig 2: Connecting Lock Tab For Sliding Connector
Courtesy of GENERAL MOTORS CORP.
Push the CPA (2) back into place.

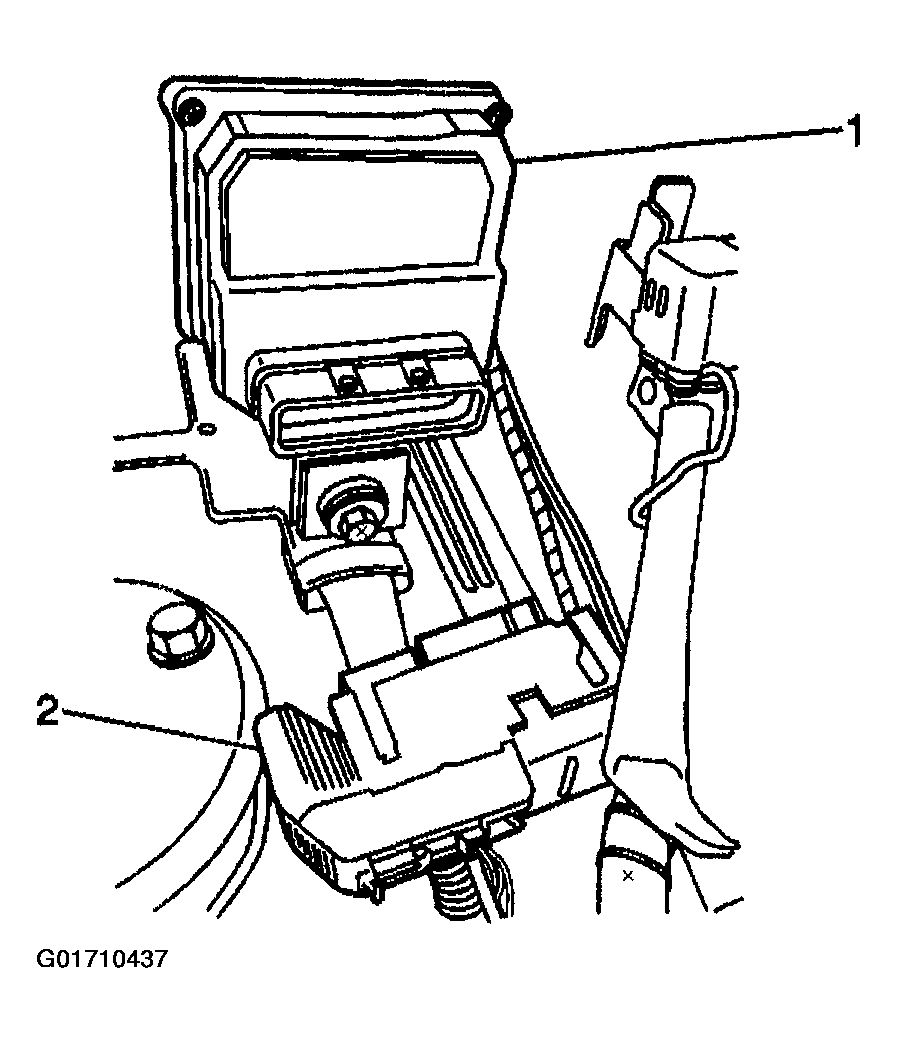

Fig 3: Connecting Connector Position Assurance

Courtesy of GENERAL MOTORS CORP.
