Removal Procedure

Remove the Instrument Cluster Assembly (2). Refer to Instrument Panel Cluster (IPC) Replacement in Instrument Panel, Gages and Console.
Remove the Lamp Driver Module (LDM) (1) from the printed circuit.

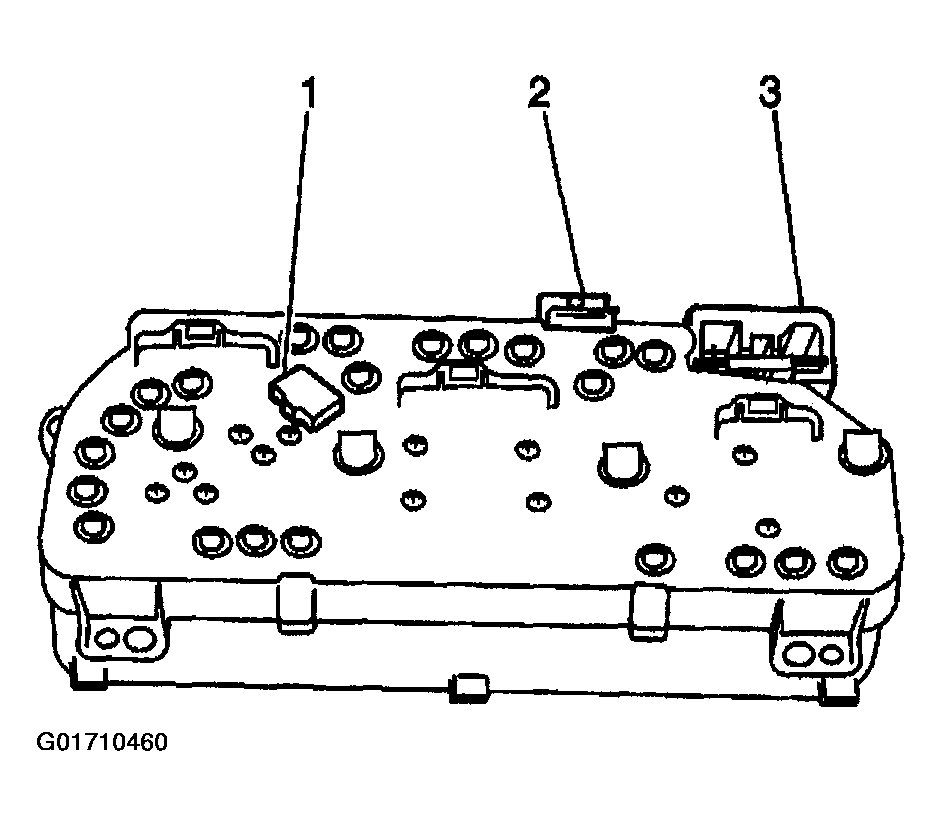

Fig 1: Removing Lamp Driver Module From Printed Circuit Board
Courtesy of GENERAL MOTORS CORP.
