Removal Procedure

Remove the parking brake lever bezel attaching screws (2).
Remove the parking brake lever bezel (1).

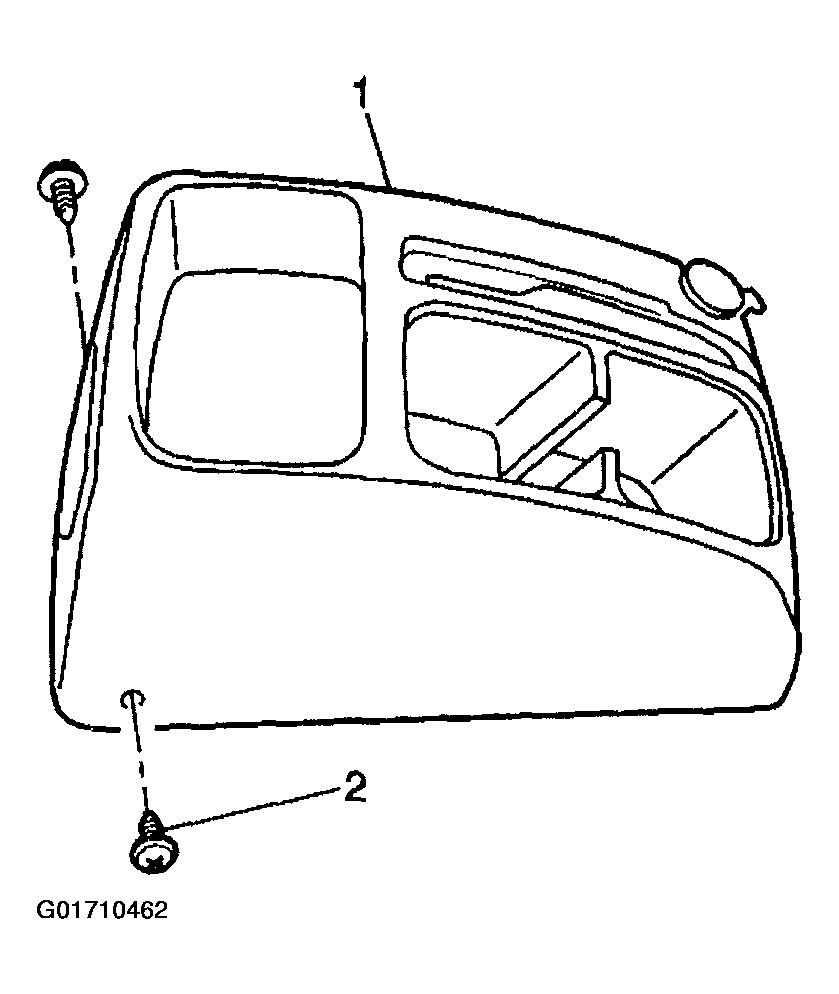

Fig 1: Removing Parking Brake Lever Bezel
Courtesy of GENERAL MOTORS CORP.
Disconnect the accelerometer electrical connector (2).

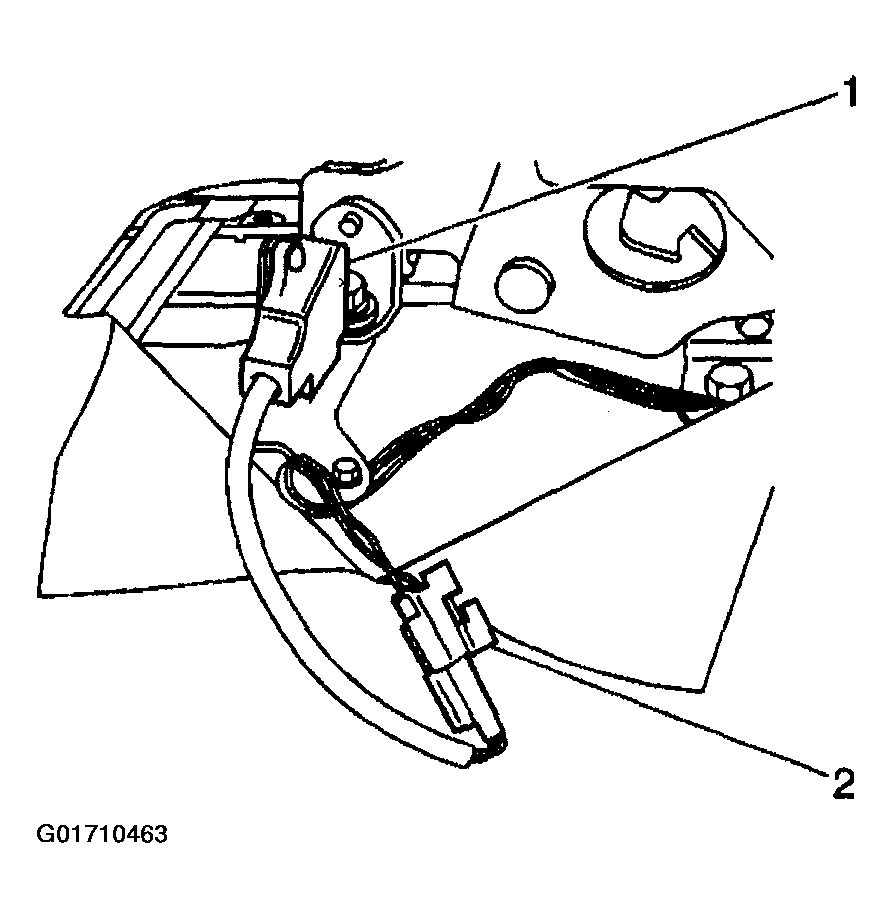

Fig 2: Disconnecting Accelerometer Connector
Courtesy of GENERAL MOTORS CORP.
Remove the two bolts (2) that retain the accelerometer (1).
Remove the accelerometer (1) from the vehicle.

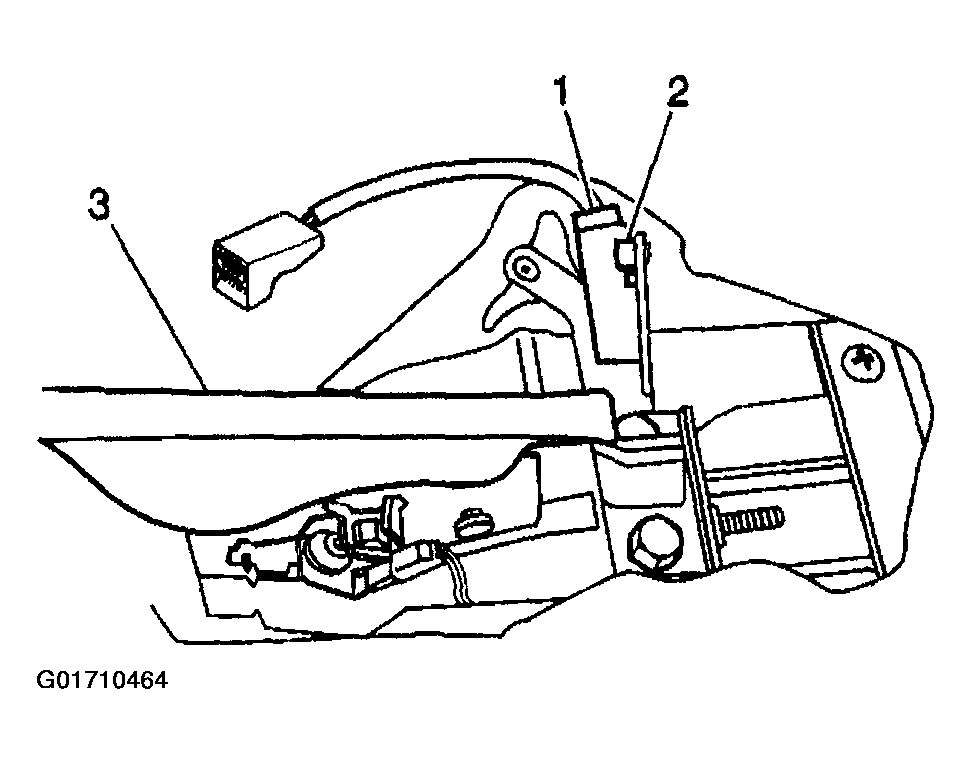

Fig 3: Removing Accelerometer
Courtesy of GENERAL MOTORS CORP.
