Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

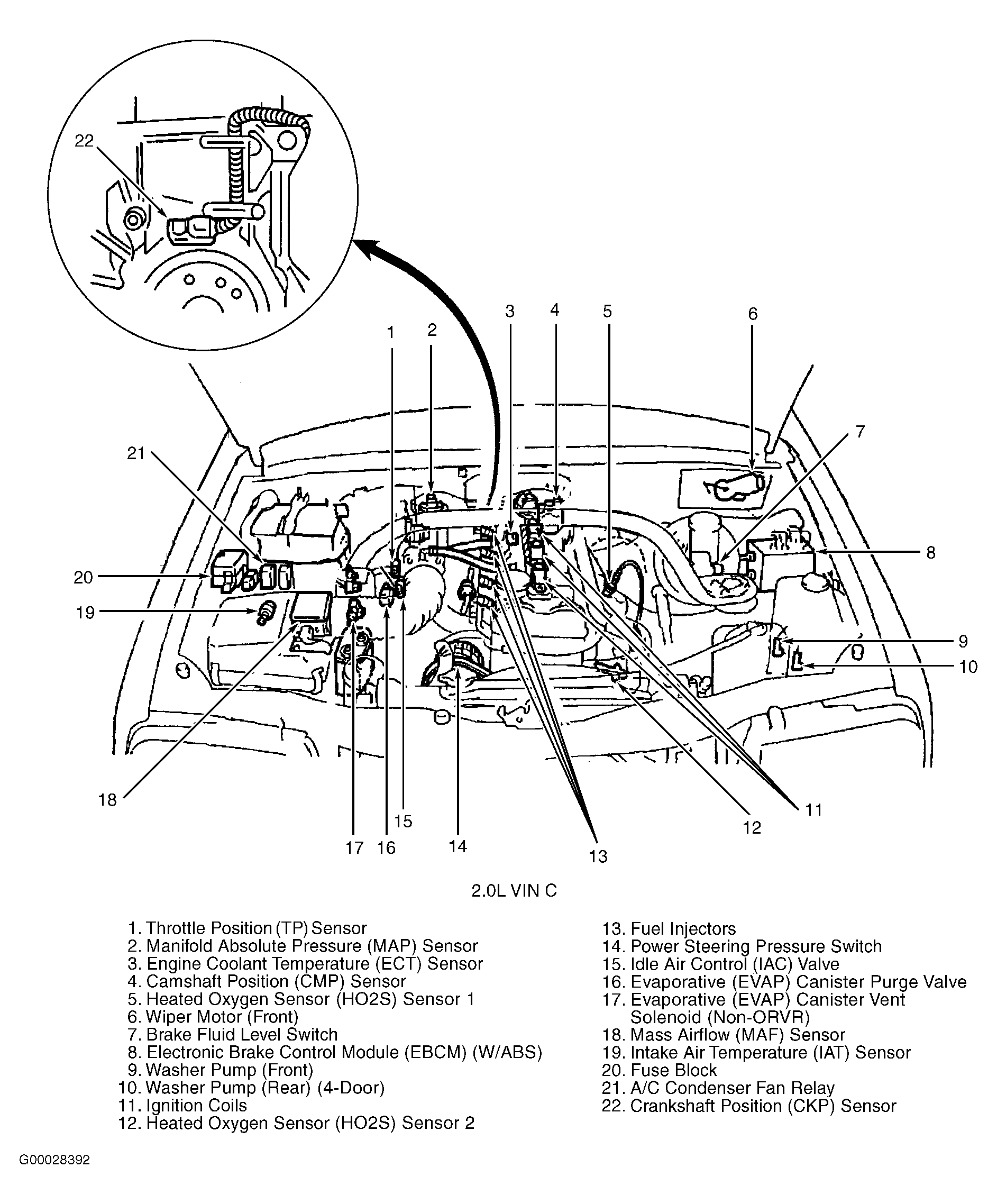

Fig 1: Engine Compartment (2.0L VIN C)
G00028392Courtesy of GENERAL MOTORS CORP.

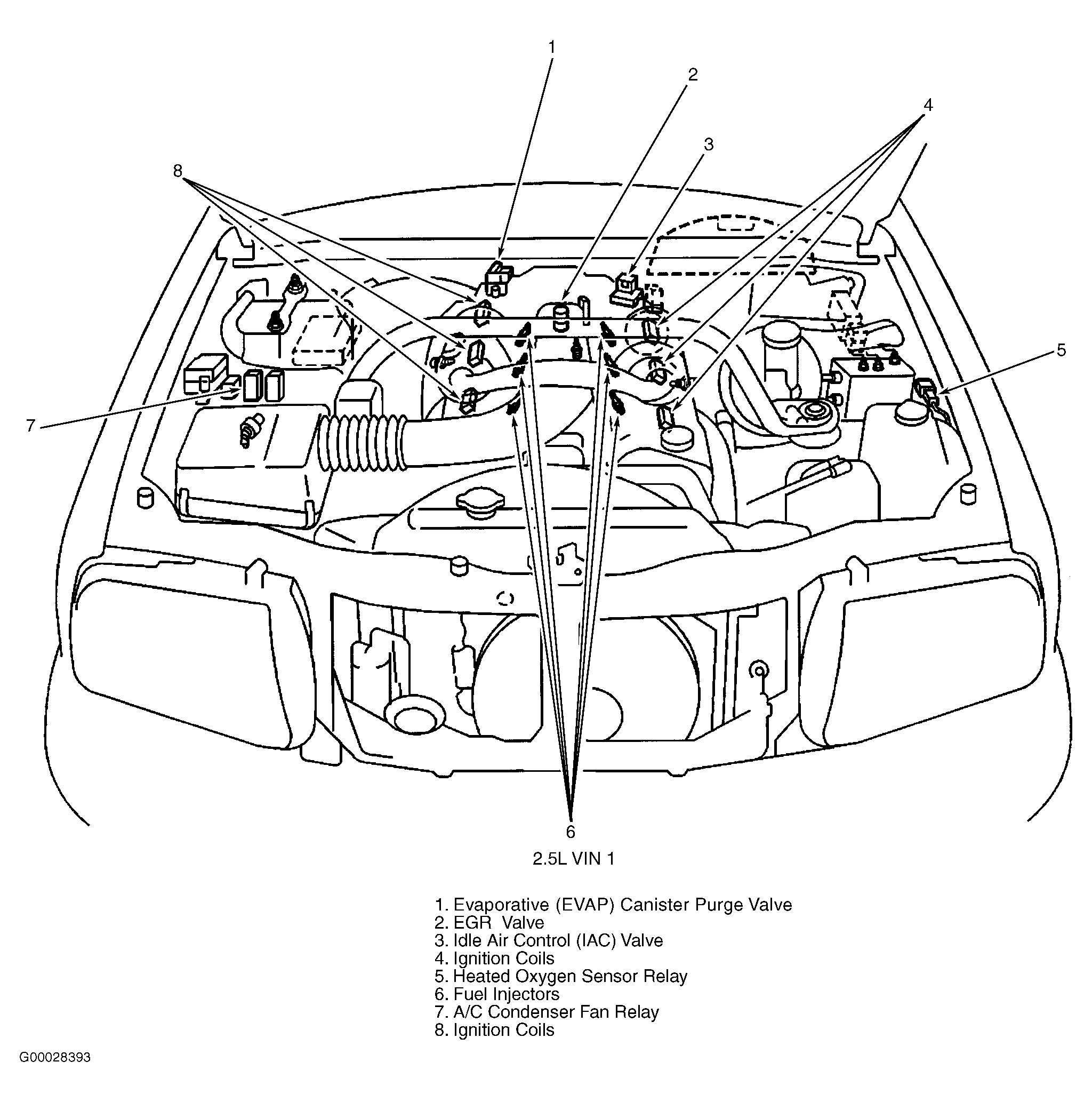

Fig 2: Engine Compartment (2.5L VIN 1)
G00028393Courtesy of GENERAL MOTORS CORP.

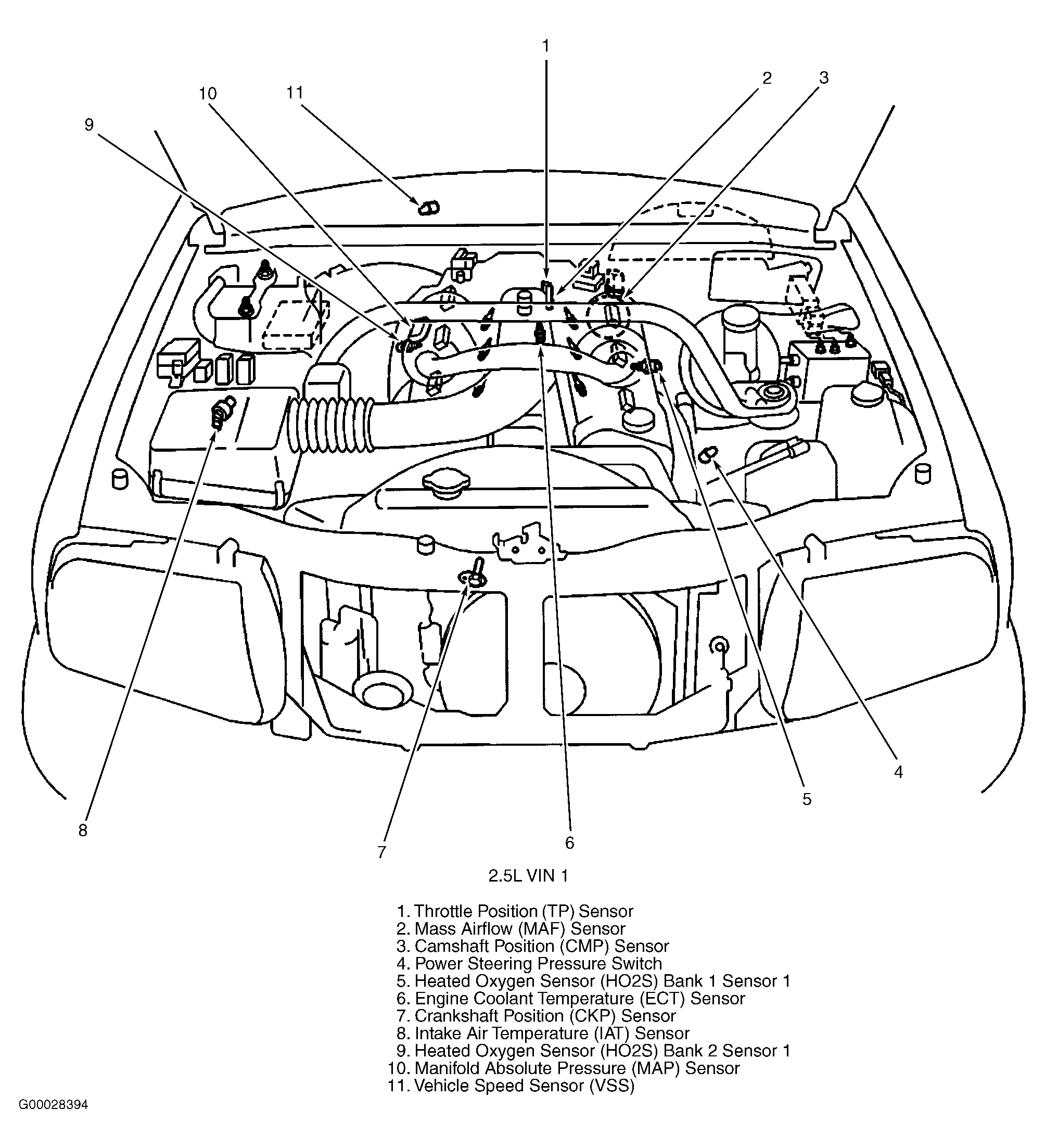

Fig 3: Engine Compartment (2.5L VIN 1)
G00028394Courtesy of GENERAL MOTORS CORP.

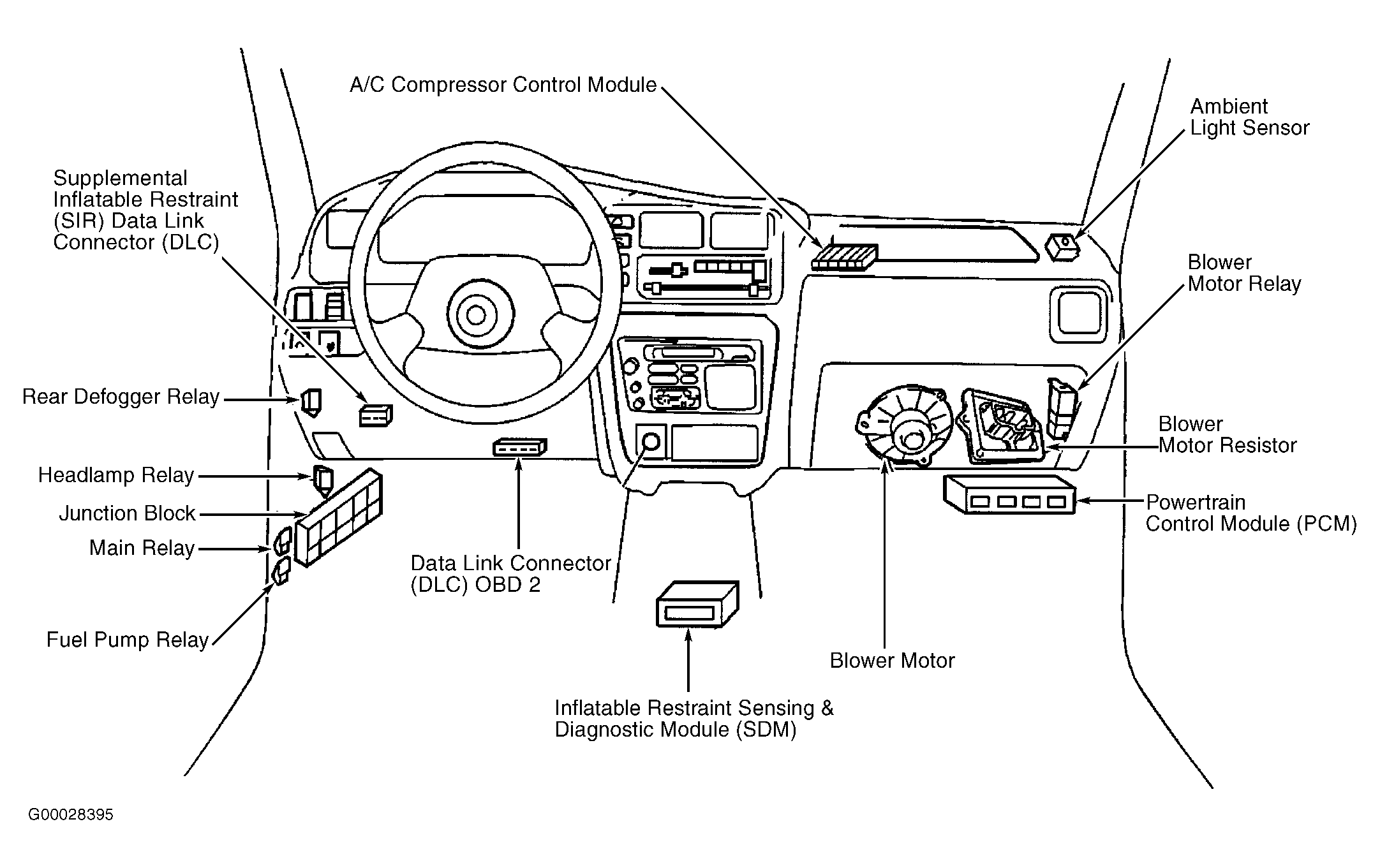

Fig 4: Dash
G00028395Courtesy of GENERAL MOTORS CORP.
