Section 1249 (Wheel Alignment): Specifications

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

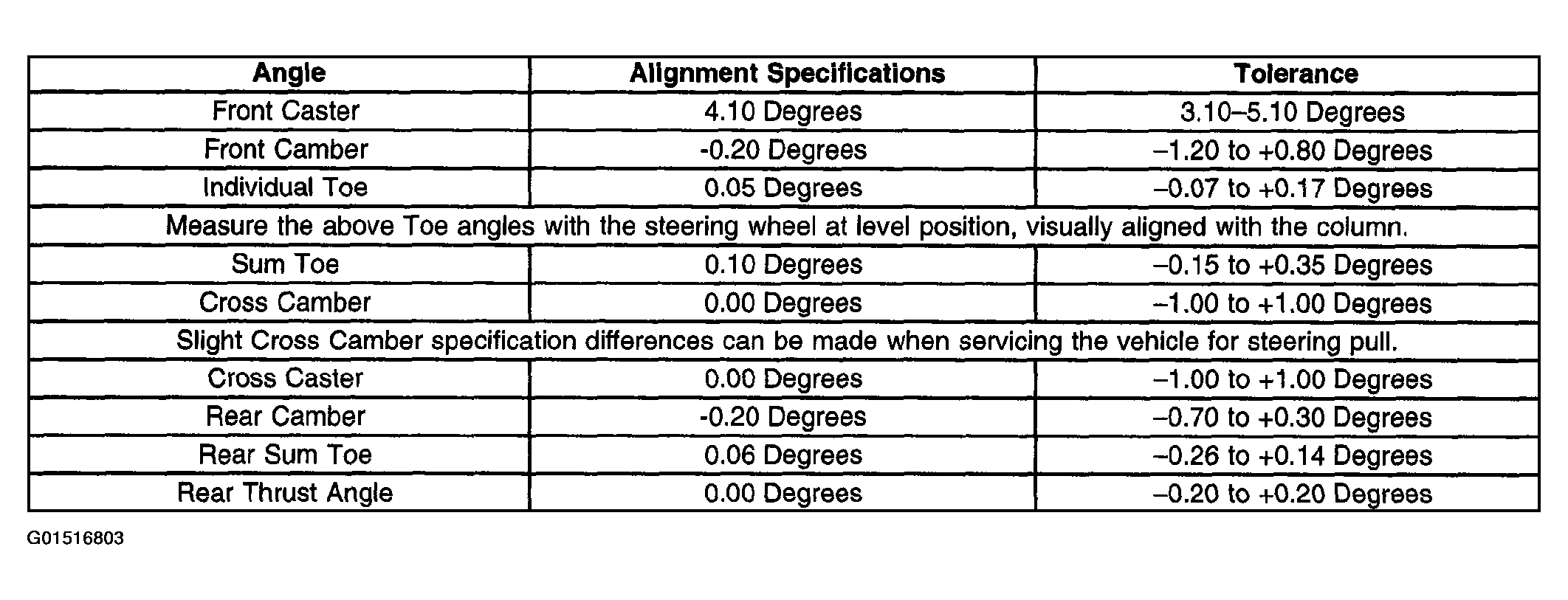

Fig 1: Wheel Alignment Specifications

Courtesy of GENERAL MOTORS CORP.

Fastener Tightening Specifications

Application	Specification
Application	Metric	English
Strut to Knuckle Nuts	180 N.m	133 lb ft
Tie Rod Jam Nut	68 N.m	50 lb ft
