Shift Lock Solenoid: Installation

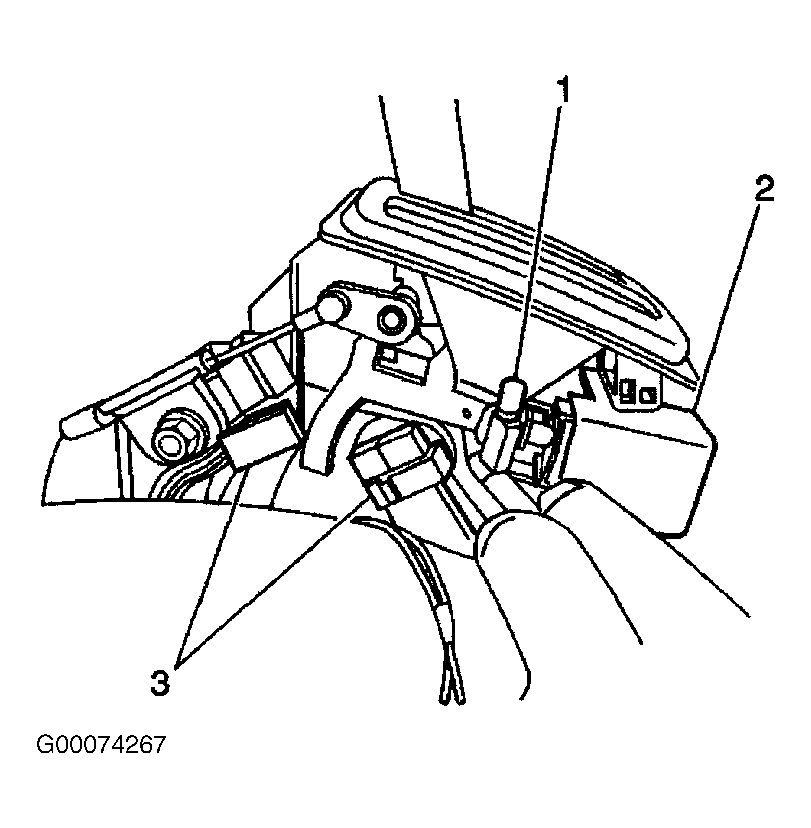

  1. Install the shift lock solenoid (2) to the manual selector. See Figure . Install the shift lock solenoid cover (2). Connect the shift indicator lamp electrical connector and the shift lock solenoid connector (3) under the carpet. Install the shift indicator lamp (1).
  2. Install the console box to the floor. Secure the console box with the 2 plastic retaining clips (2,5) and the 4 screws (1,6,3,4). See Figure . Connect the negative battery cable.
