WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

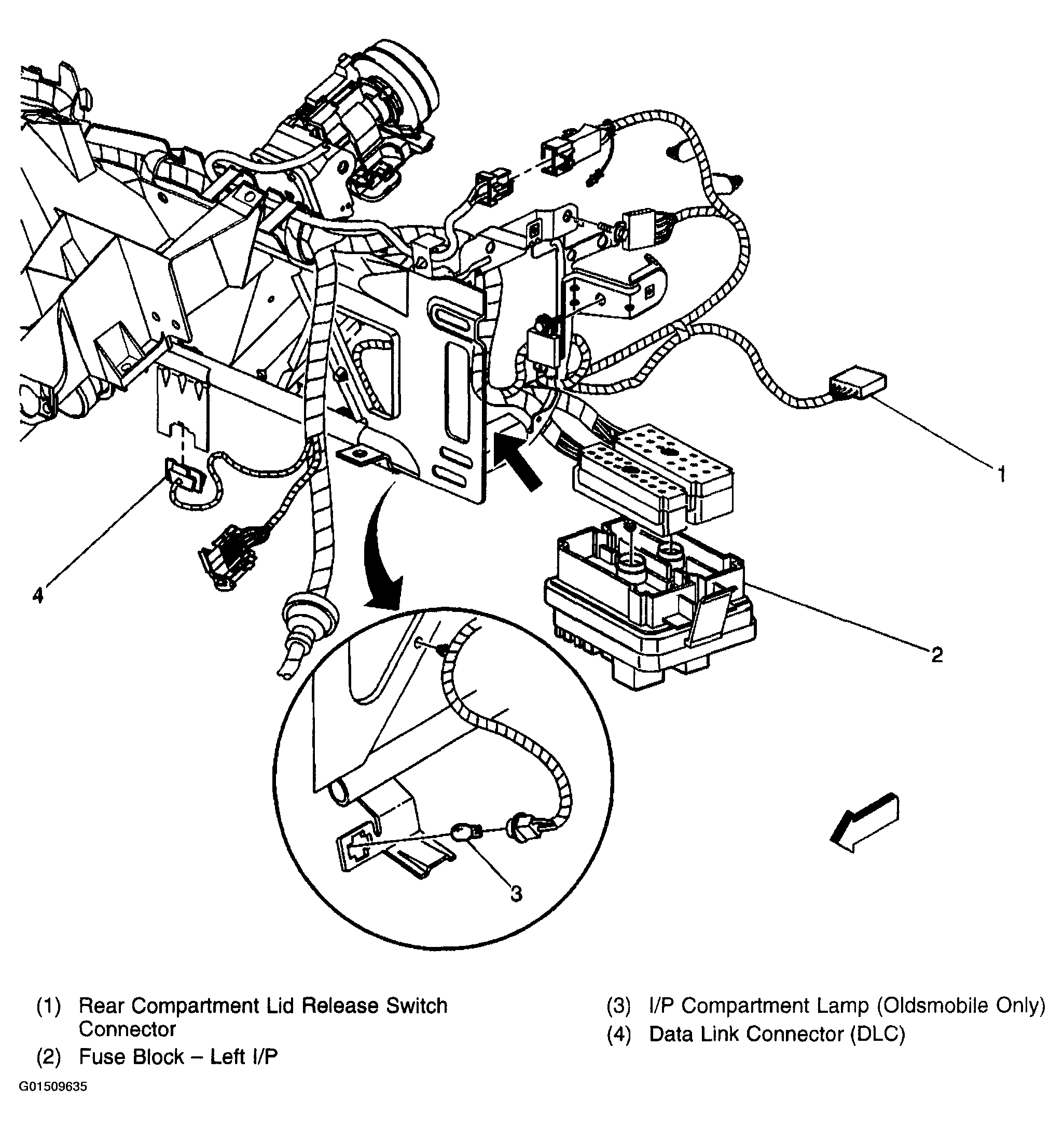

Fig 1: Locating Data Link Communications Components (Left Side Of Instrument Panel)
