Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the sunroof.
  2. Remove the headliner, as necessary. Refer to HEADLINER REPLACEMENT in Interior Trim.
  3. Disconnect the wire harness connectors from both ends of the sunroof control module.
  4. Remove the nylon tie straps from the sunroof control module.
  5. Release the control module retainers from the metal bracket by sliding the module towards the middle of the vehicle.
  6. Remove the sunroof control module from the vehicle.

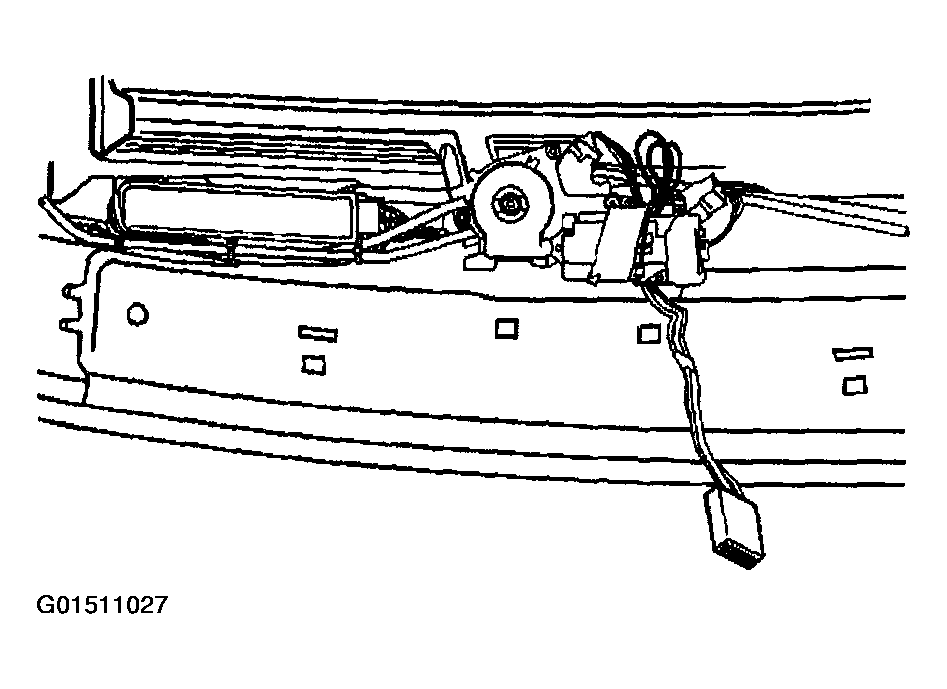

    Fig 1: Removing Sunroof Control Module From Vehicle
    G01511027Courtesy of GENERAL MOTORS CORP.
